PINHOLE | CASTOR MINI SERIES

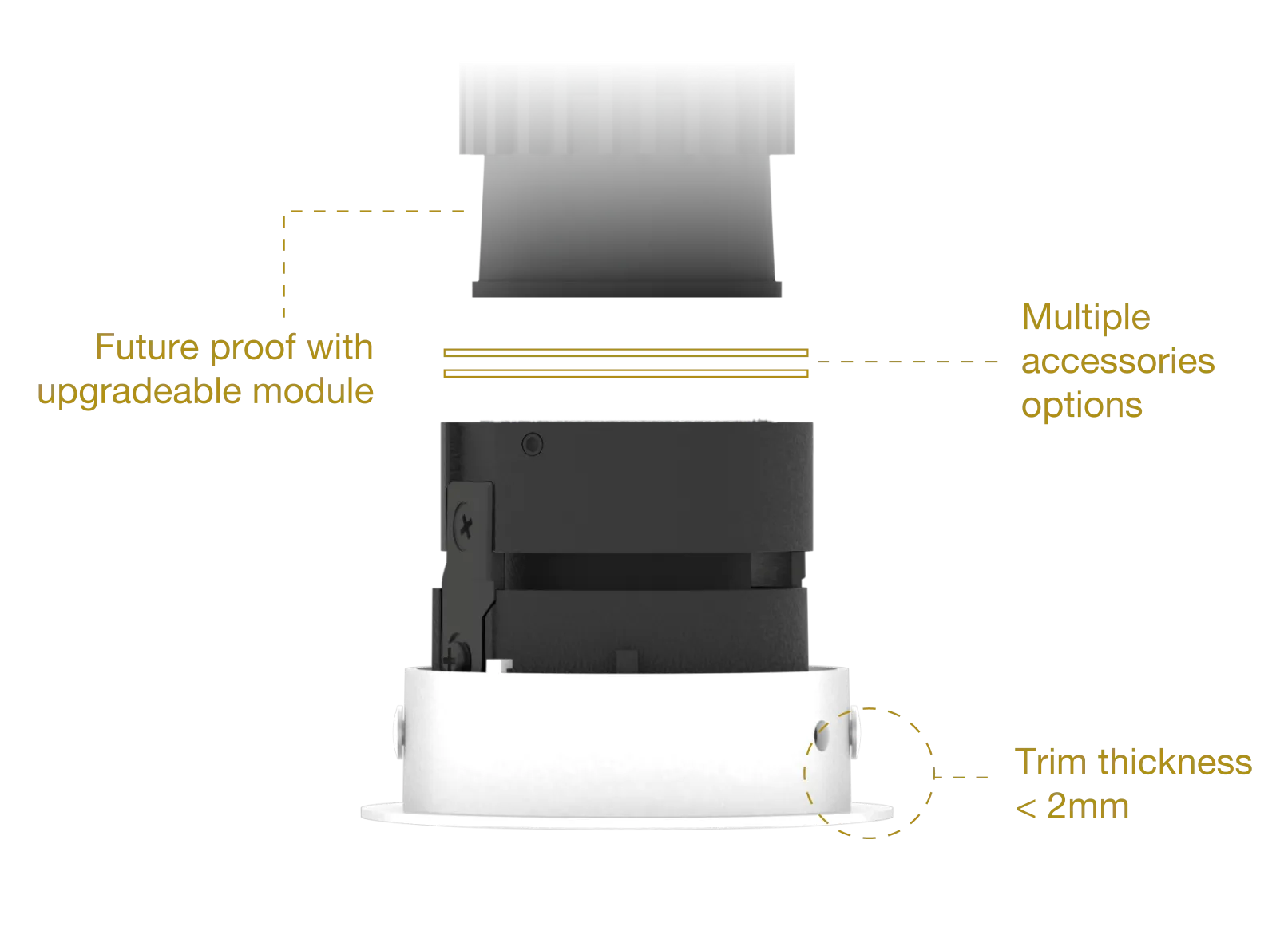

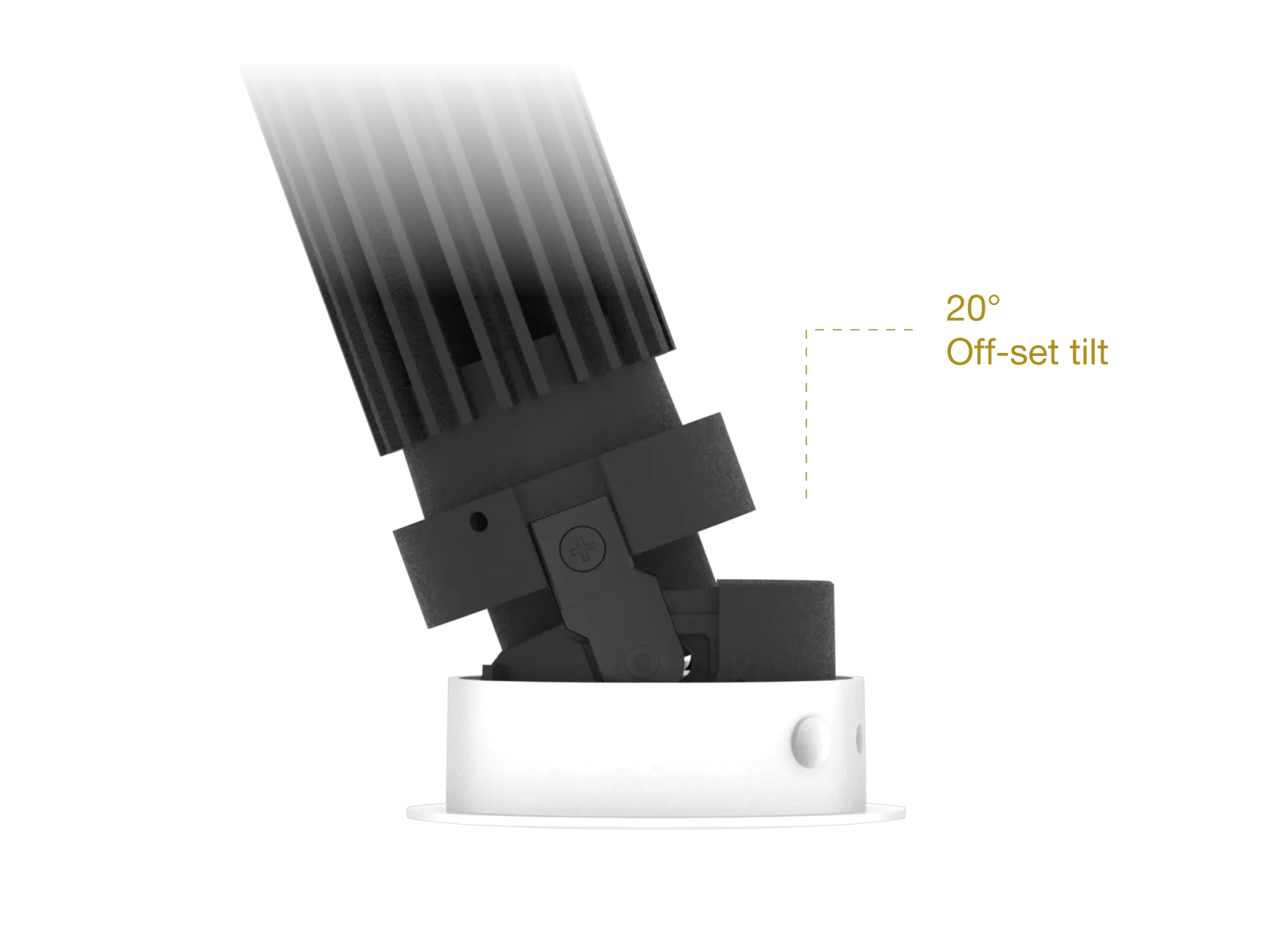

A series of pinhole downlights with reflector available in various sizes and finishing, designed with a deep aperture for optimum glare control. The Castor downlight is equipped with an off-set tilt mechanism that maximises light output for most demanding applications.
Castor 3 Mini
Round Trim
Size: 77mm
Luminous Flux: 223 lm – 1425 lm
LED Power: 4.5 W – 14.6 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40, IP54
Round Trimless
Size: 76mm
Luminous Flux: 223 lm – 1425 lm
LED Power: 4.5 W – 14.6 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40, IP54
Round Trim
Size: 77mm
Luminous Flux: 223 lm – 1425 lm
LED Power: 4.5 W – 14.6 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40, IP54
Round Trimless
Size: 76mm
Luminous Flux: 223 lm – 1425 lm
LED Power: 4.5 W – 14.6 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40, IP54
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K
Castor 4 Mini
Round Trim
Size: 104mm
Luminous Flux: 913 lm – 2794 lm
LED Power: 17.0 W – 28.0 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40, IP54
Round Trimless
Size: 102mm
Luminous Flux: 913 lm – 2794 lm
LED Power: 17.0 W – 28.0 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40, IP54
Round Trim
Size: 104mm
Luminous Flux: 913 lm – 2794 lm
LED Power: 17.0 W – 28.0 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40, IP54
Round Trimless
Size: 102mm
Luminous Flux: 913 lm – 2794 lm
LED Power: 17.0 W – 28.0 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40, IP54
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K
