LINEAR DOWNLIGHT | LYNX SERIES

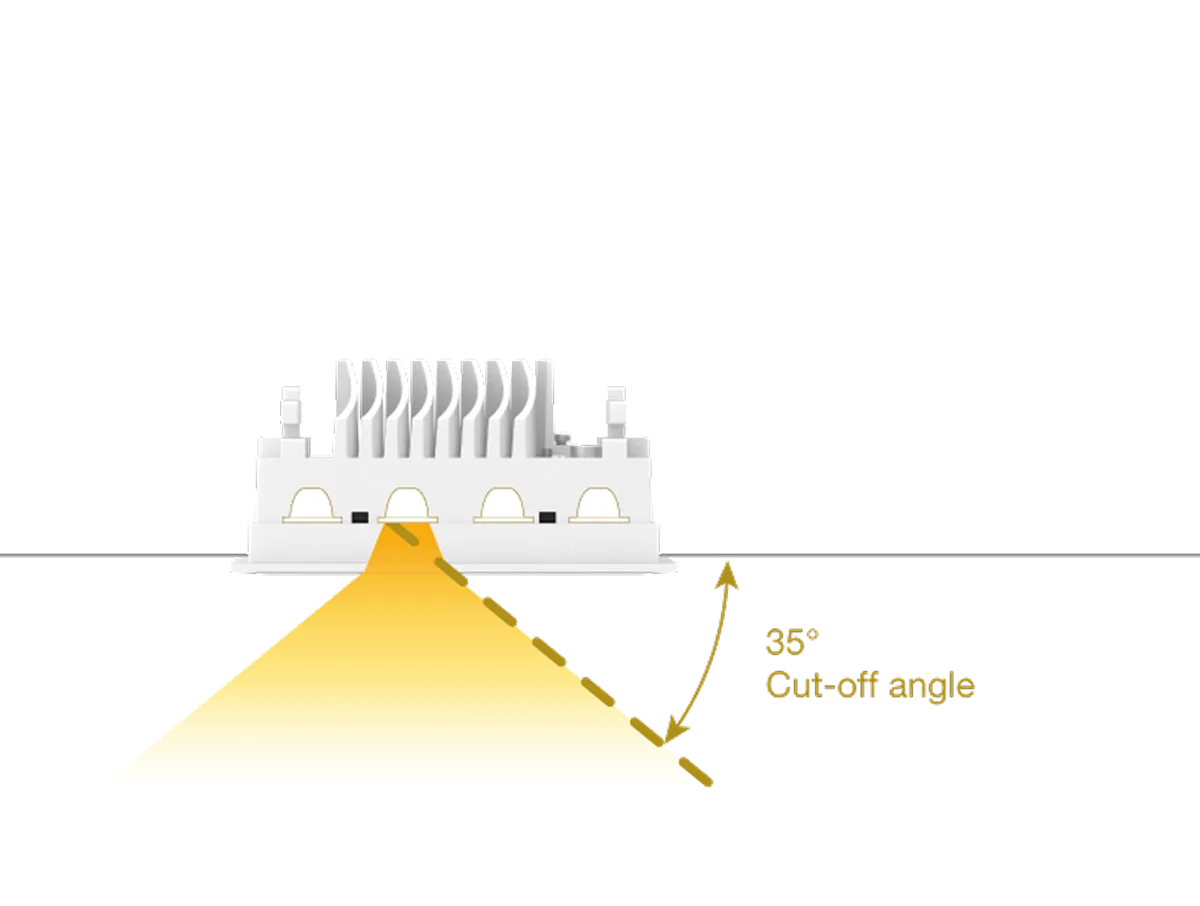

A series of modern aesthetic slim profile linear downlight luminaires that fit in well with contemporary interior designing features, designed with double optical stages that create uniform circular light beam with minimal glare.

Lynx 2Lynx 4Lynx 8Lynx 12

Lynx 2

Fix

Lynx 2 Trim

Slim Trim

Size: 57 x 36 mm
Luminous Flux: 349 lm
LED Power: 4 W – 5 W
Colour Temperature: Single CCT
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE

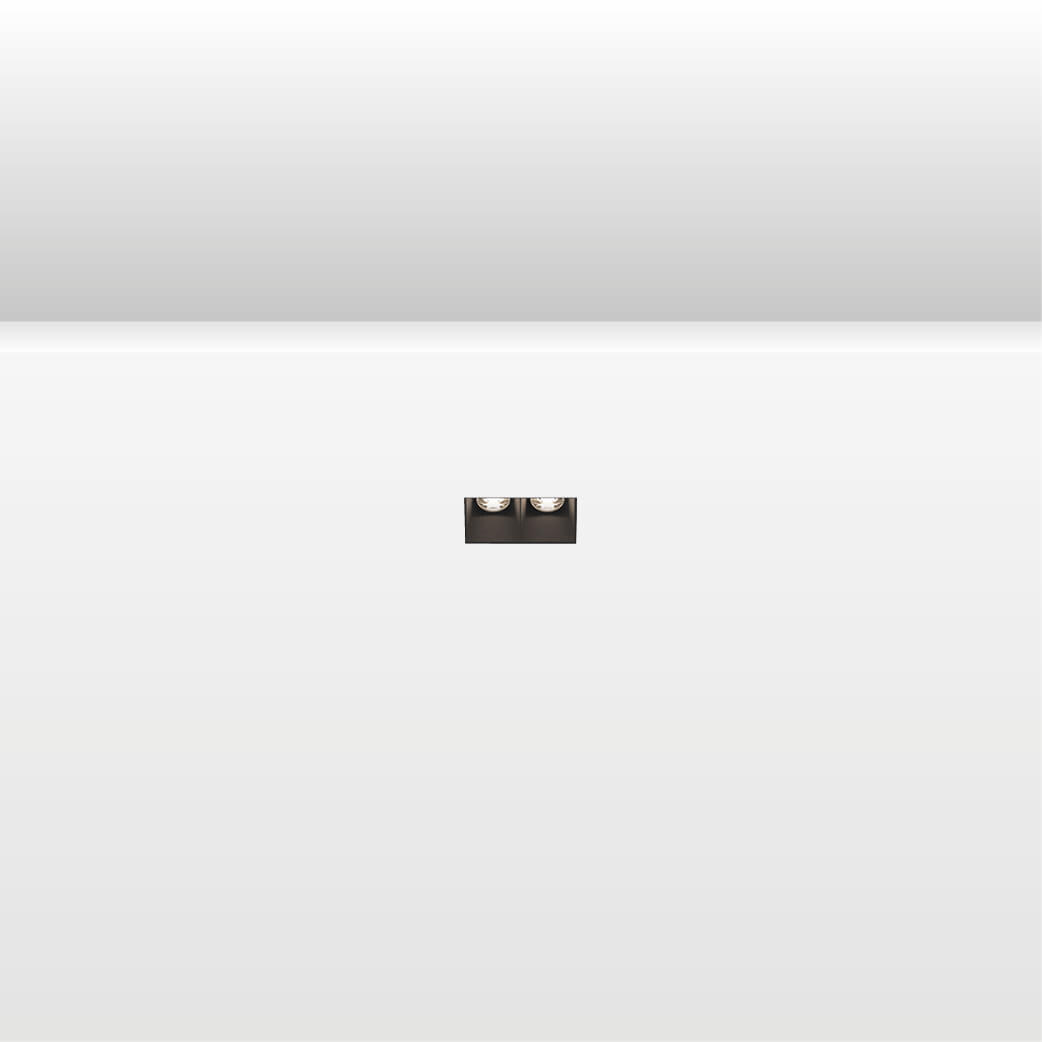

Lynx 2 Trimless Fix

Slim Trimless

Size: 65 x 40 mm
Luminous Flux: 351 lm
LED Power: 4 W – 5 W
Colour Temperature: Single CCT
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE

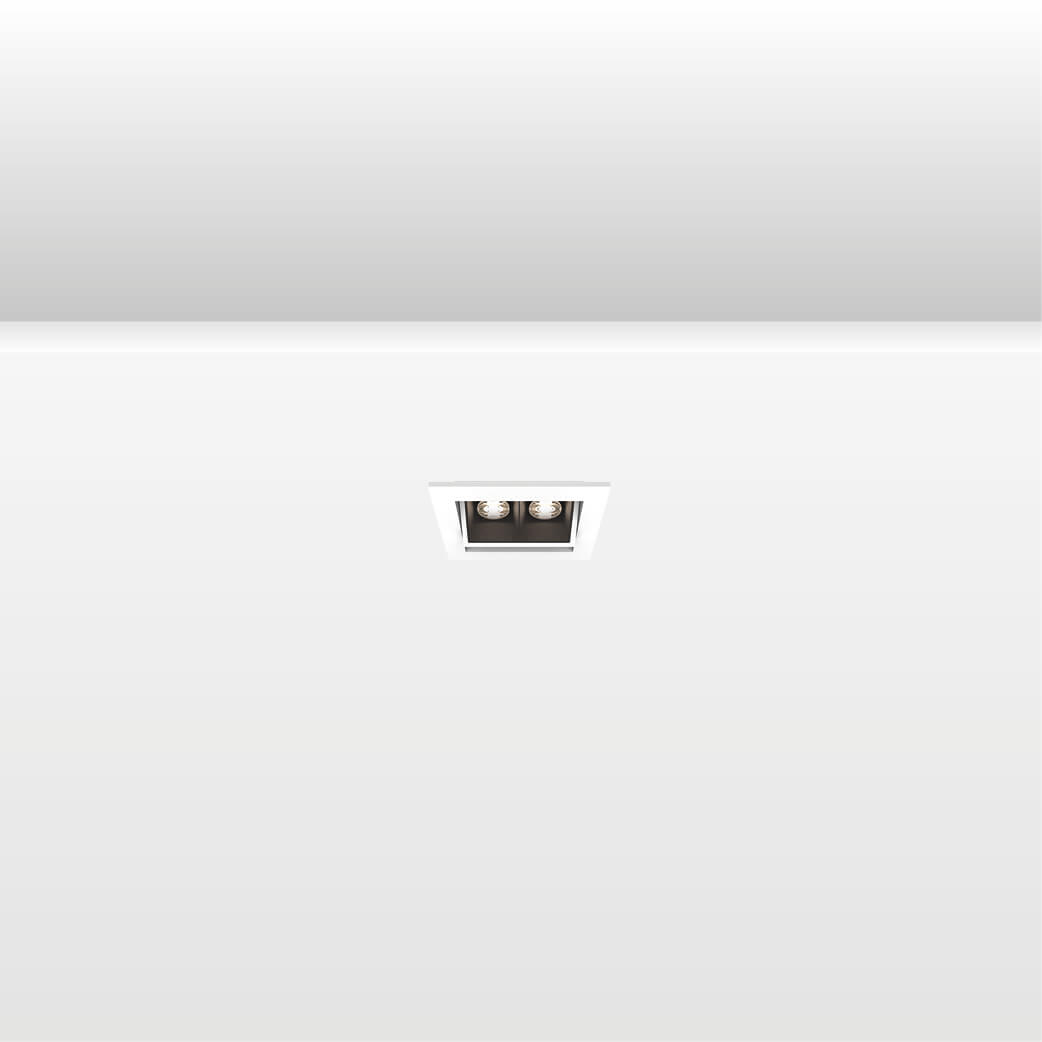

Tilt

Lynx 2 Trim

Slim Trim

Size: 62 x 50 mm
Luminous Flux: 350 lm
LED Power: 4 W – 5 W
Colour Temperature: Single CCT
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K

Lynx 4

Fix

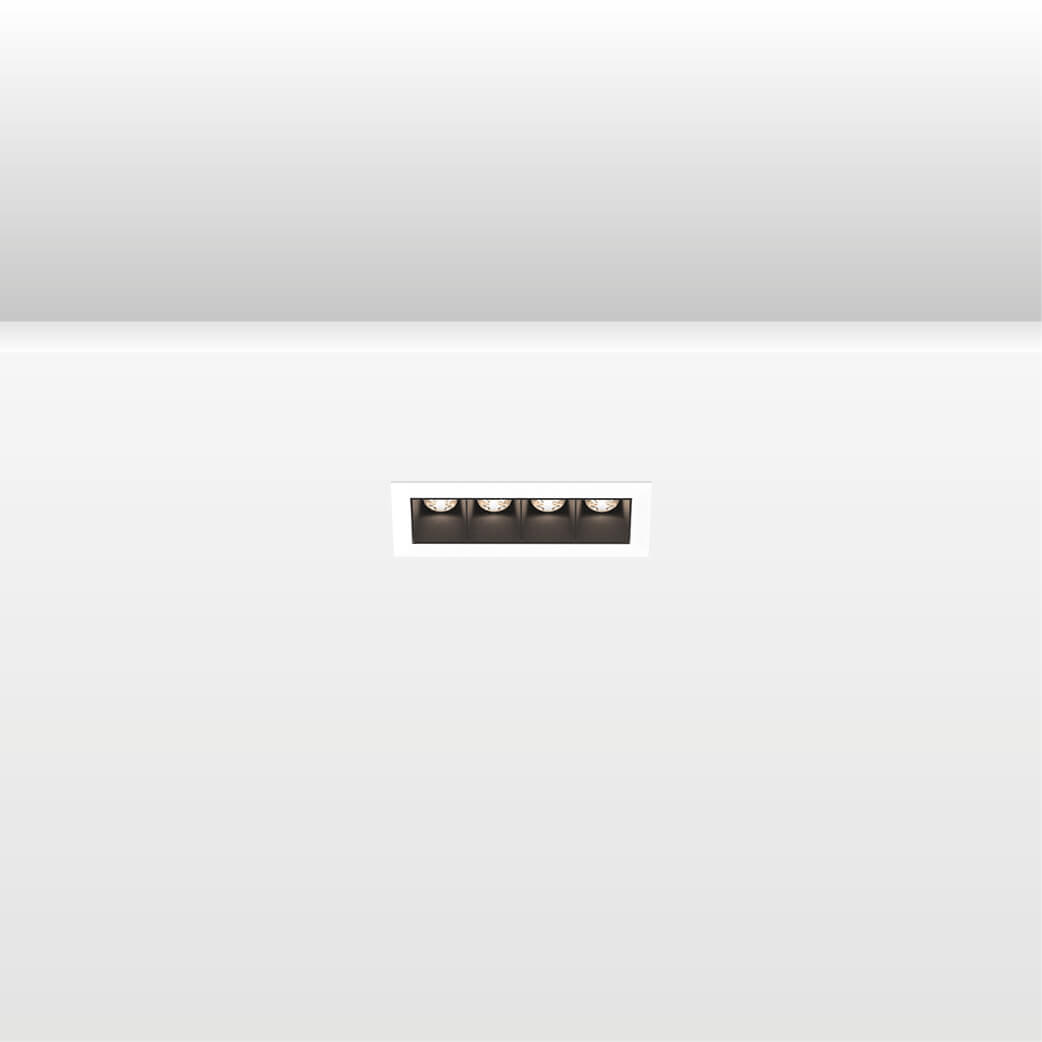

Lynx 4 Fix

Slim Trim

Size: 105 x 36 mm
Luminous Flux: 697 lm
LED Power: 8 W – 10 W
Colour Temperature: Single CCT
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE

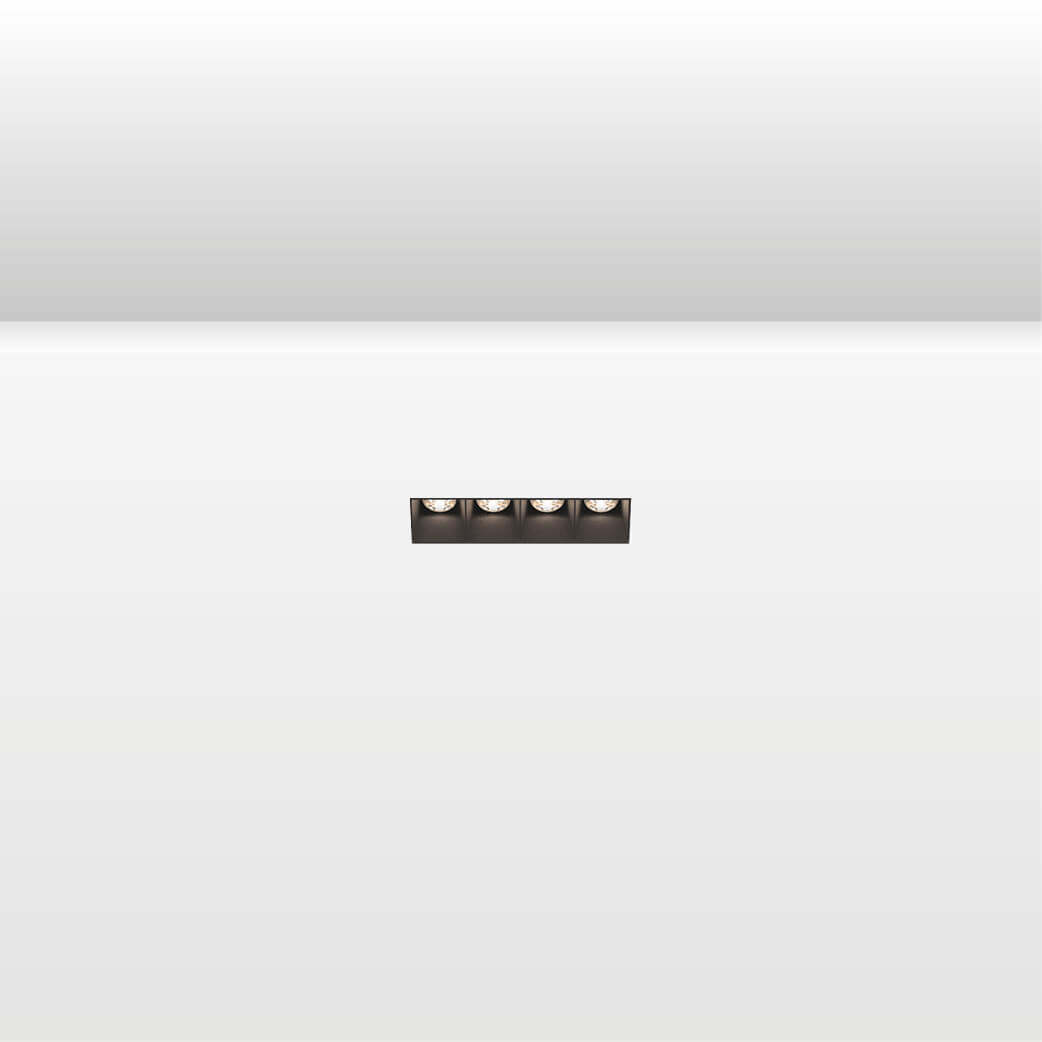

Lynx 4 Trimless Fix

Slim Trimless

Size: 113 x 40mm
Luminous Flux: 697 lm
LED Power: 8 W – 10 W
Colour Temperature: Single CCT
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE

Tilt

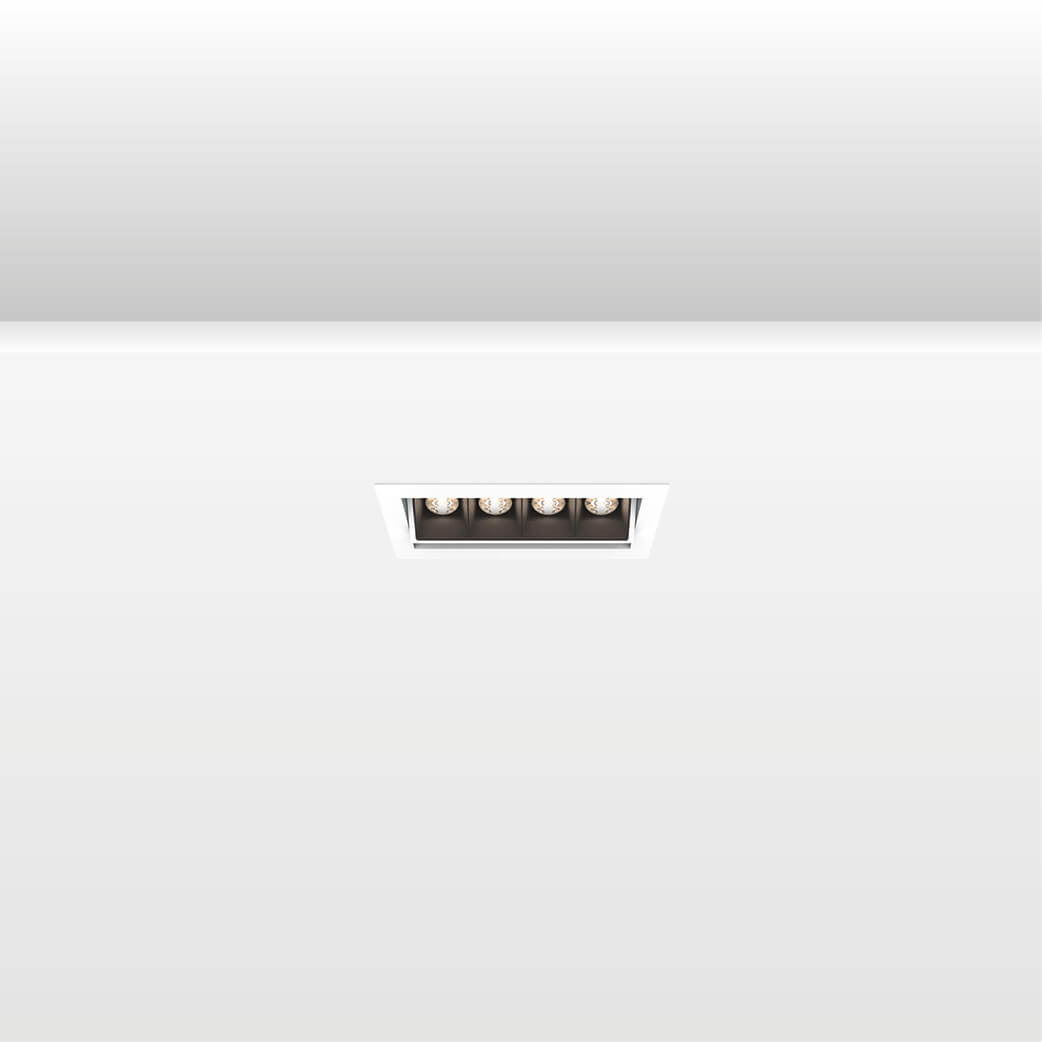

Lynx 4 Tilt

Slim Trim

Size: 113 x 50 mm
Luminous Flux: 697 lm
LED Power: 8 W – 10 W
Colour Temperature: Single CCT
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K

Lynx 8

Fix

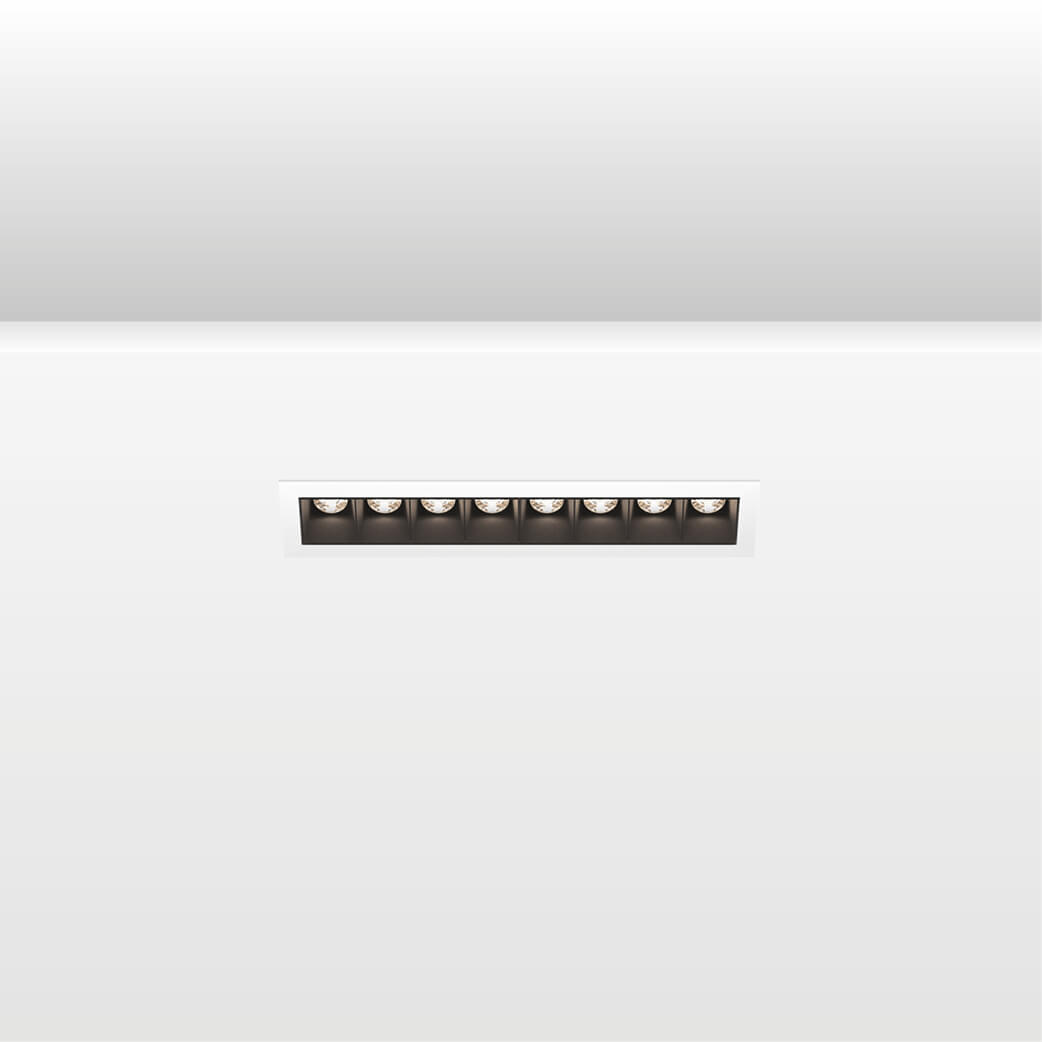

Lynx 8 Trim Fix

Slim Trim

Size: 203 x 36mm
Luminous Flux: 1381lm
LED Power: 16 W – 20 W
Colour Temperature: Single CCT
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE

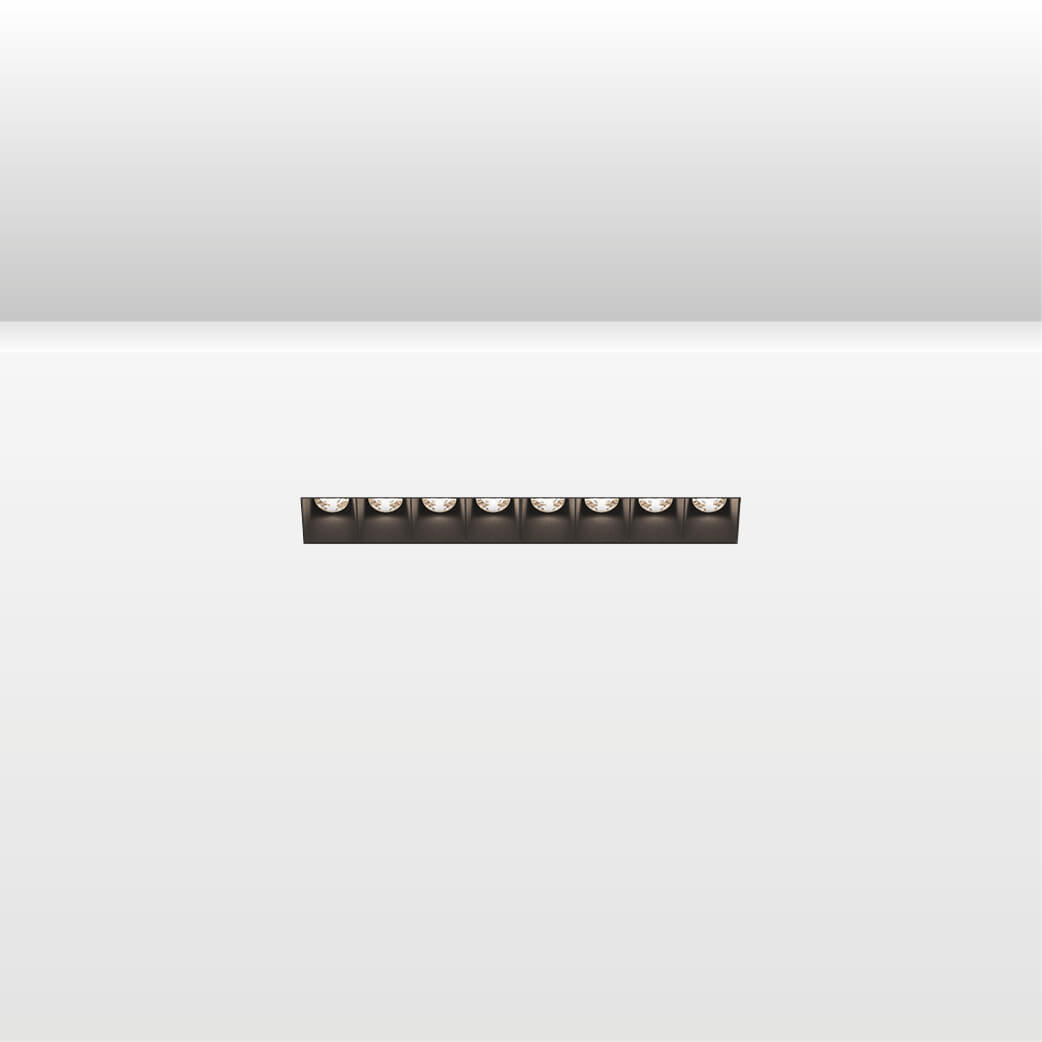

Lynx 8 Trimless Fix

Slim Trimless

Size: 210 x 40mm
Luminous Flux: 1381lm
LED Power: 16 W – 20 W
Colour Temperature: Single CCT
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE

Tilt

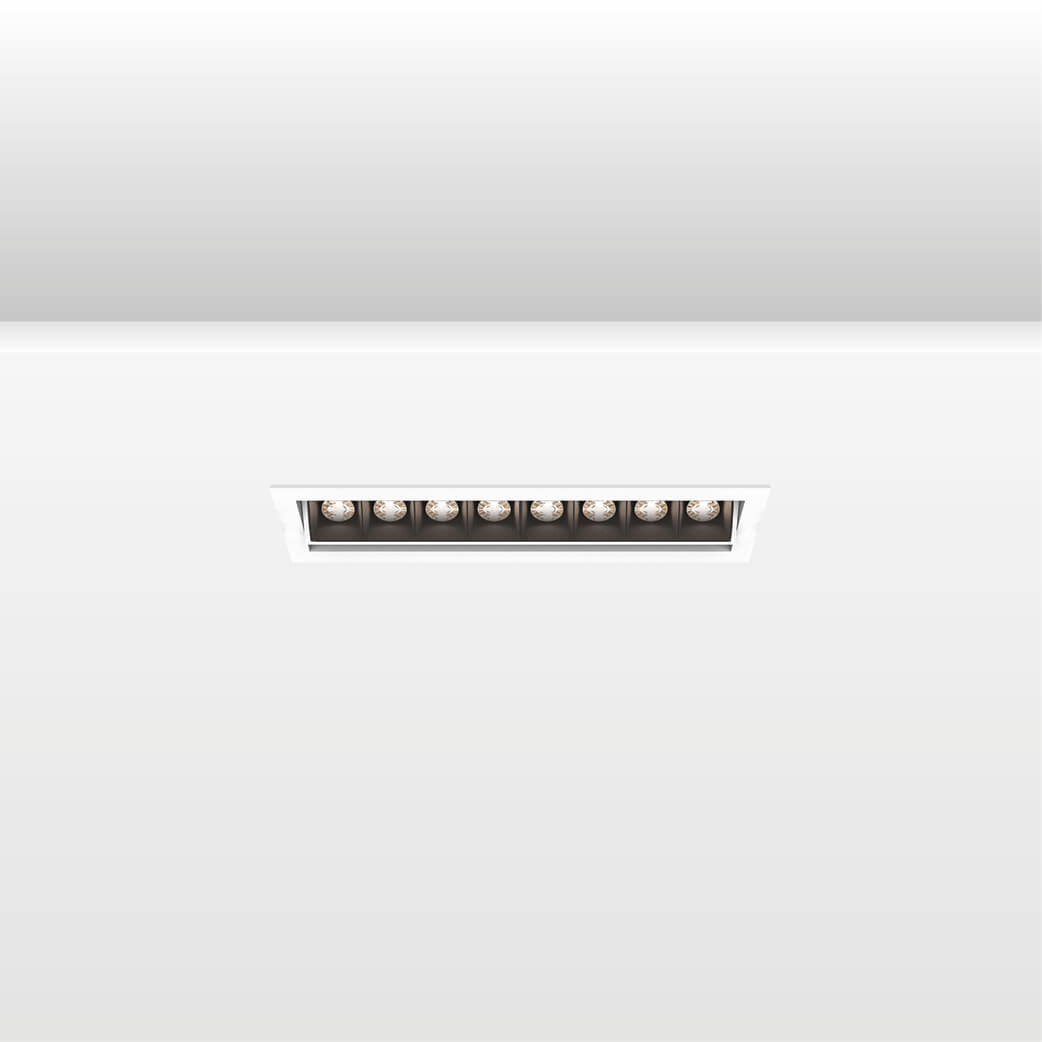

Lynx 8 Trim Tilt

Slim Trim

Size: 208 x 50mm
Luminous Flux: 1381lm
LED Power: 16 W – 20 W
Colour Temperature: Single CCT
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K

Lynx 12

Fix

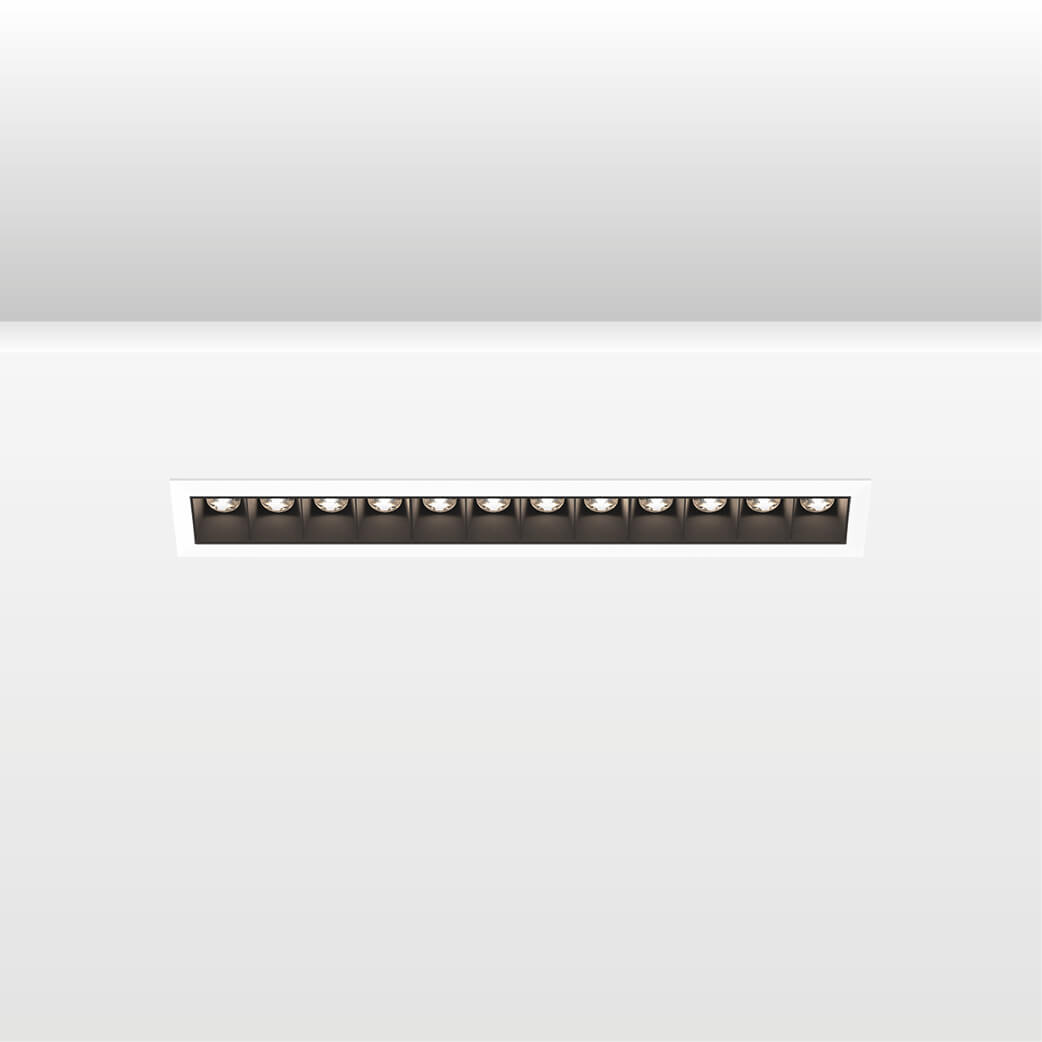

Lynx 12 Trim Fix

Slim Trim

Size: 298 x 36mm
Luminous Flux: 2040lm
LED Power: 24 W – 30 W
Colour Temperature: Single CCT
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE

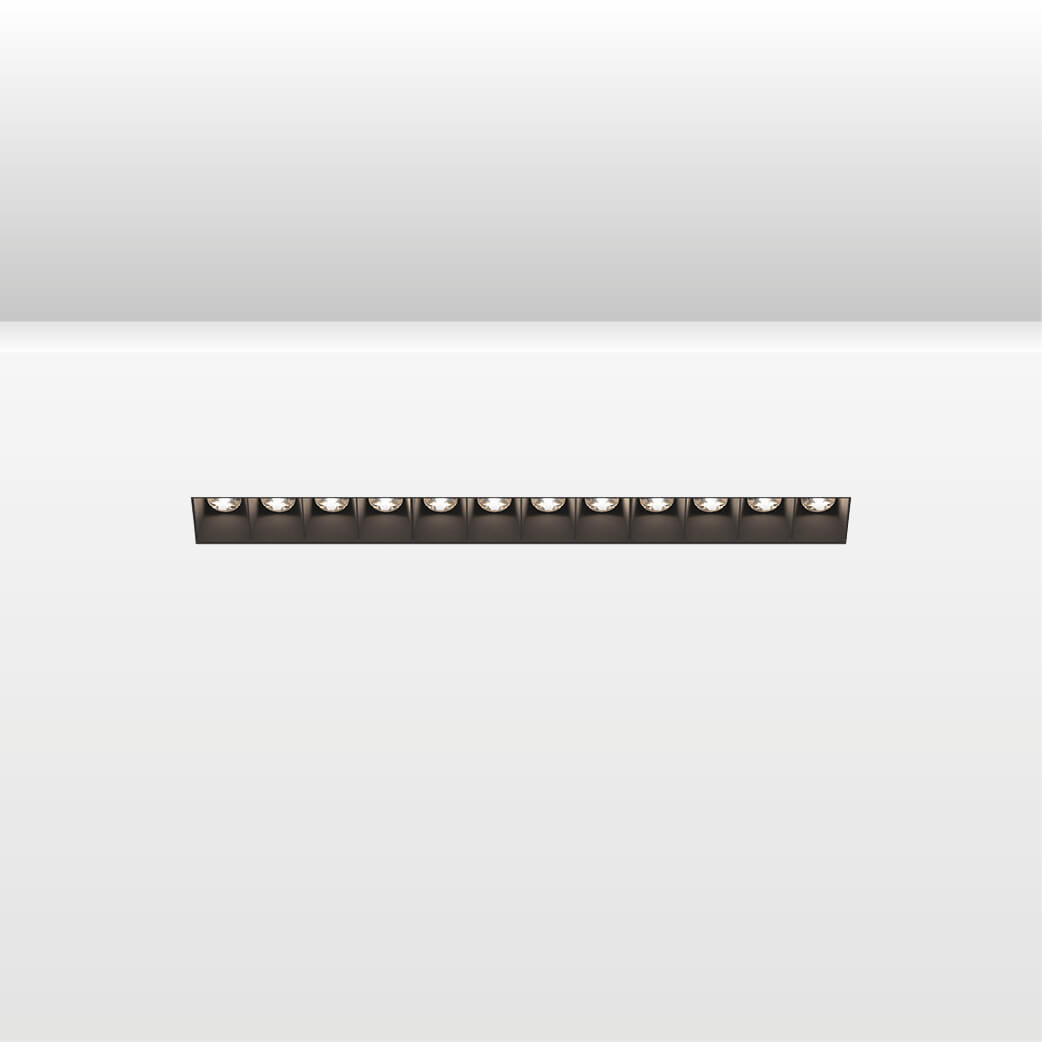

Lynx 12 Trimless Fix

Slim Trimless

Size: 304 x 40mm
Luminous Flux: 2040lm
LED Power: 24 W – 30 W
Colour Temperature: Single CCT
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE

Tilt

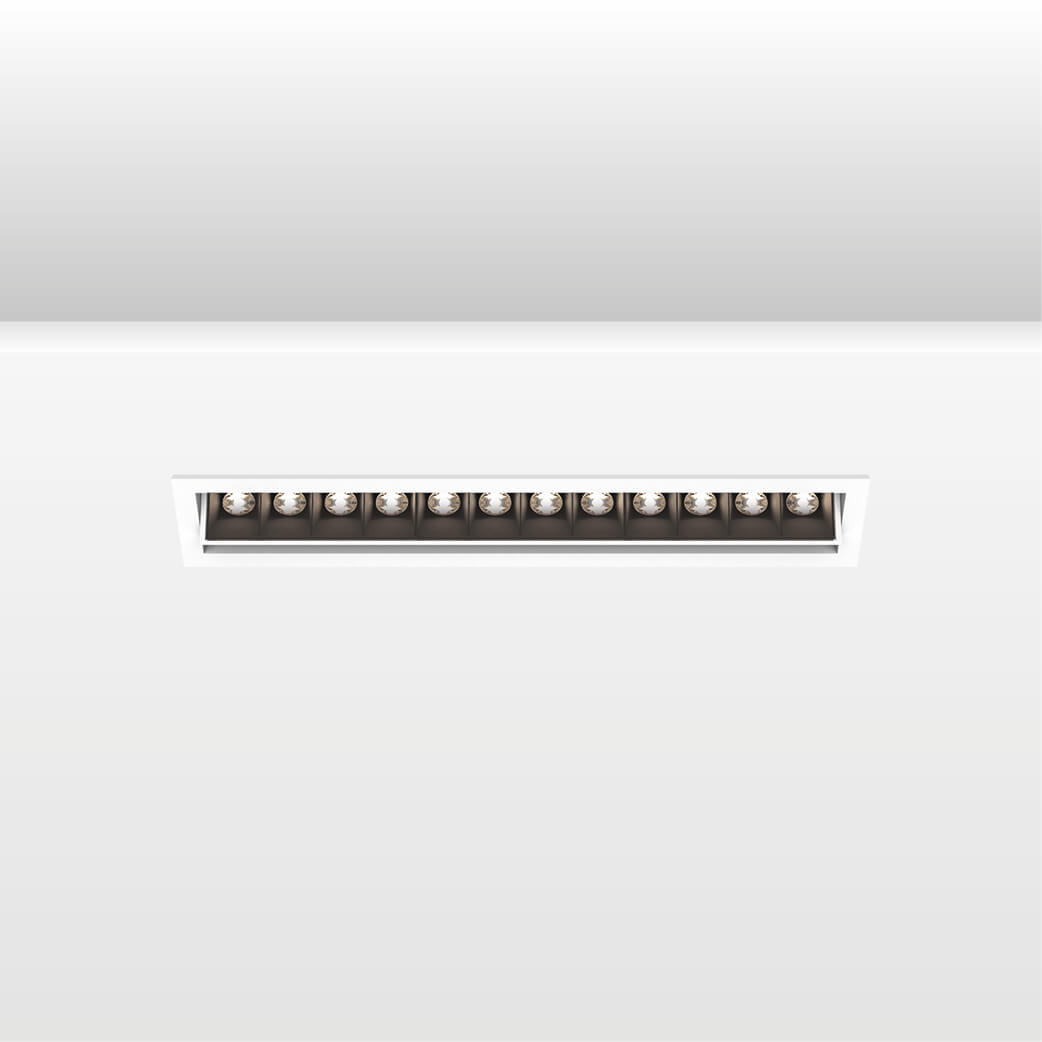

Lynx 12 Trim Tilt

Slim Trim

Size: 305 x 50mm
Luminous Flux: 2040lm
LED Power: 24 W – 30 W
Colour Temperature: Single CCT
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K
