LINEAR DOWNLIGHT | LINEAR DOWNLIGHT | XLYK SERIES

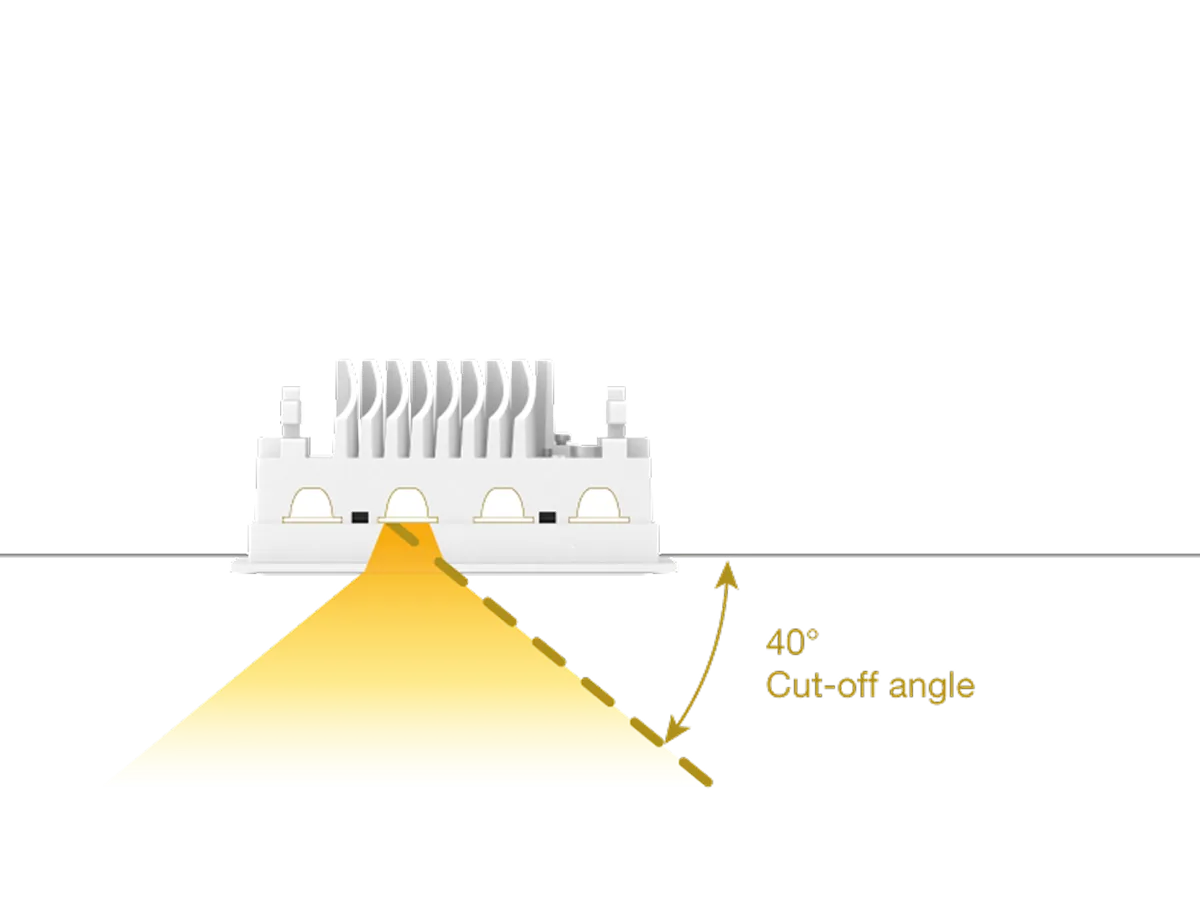

A series of modern aesthetic slim profile linear downlight luminaires that fit in well with contemporary interior designing features, designed with double optical stages that create uniform circular light beam with minimal glare.

Xlyk 3Xlyk 5Xlyk 10

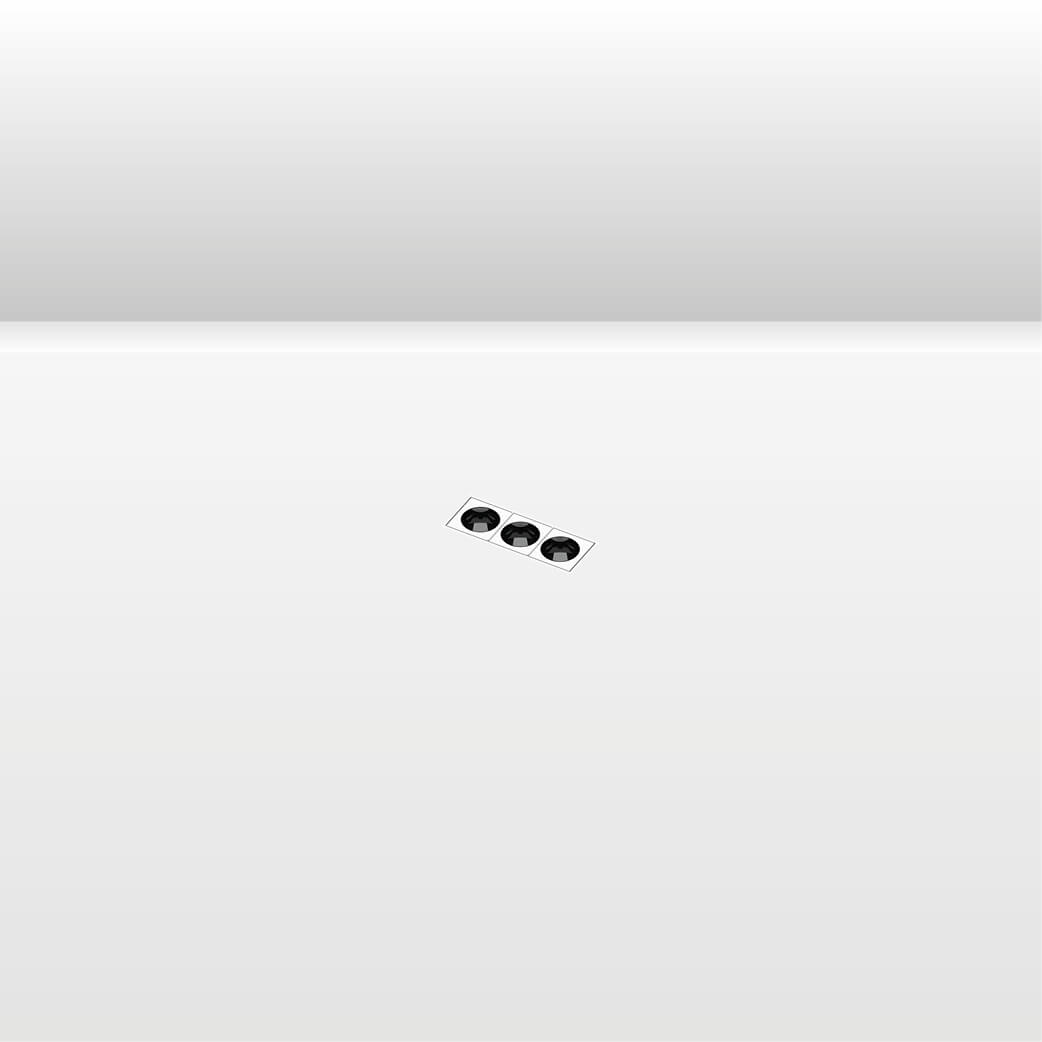

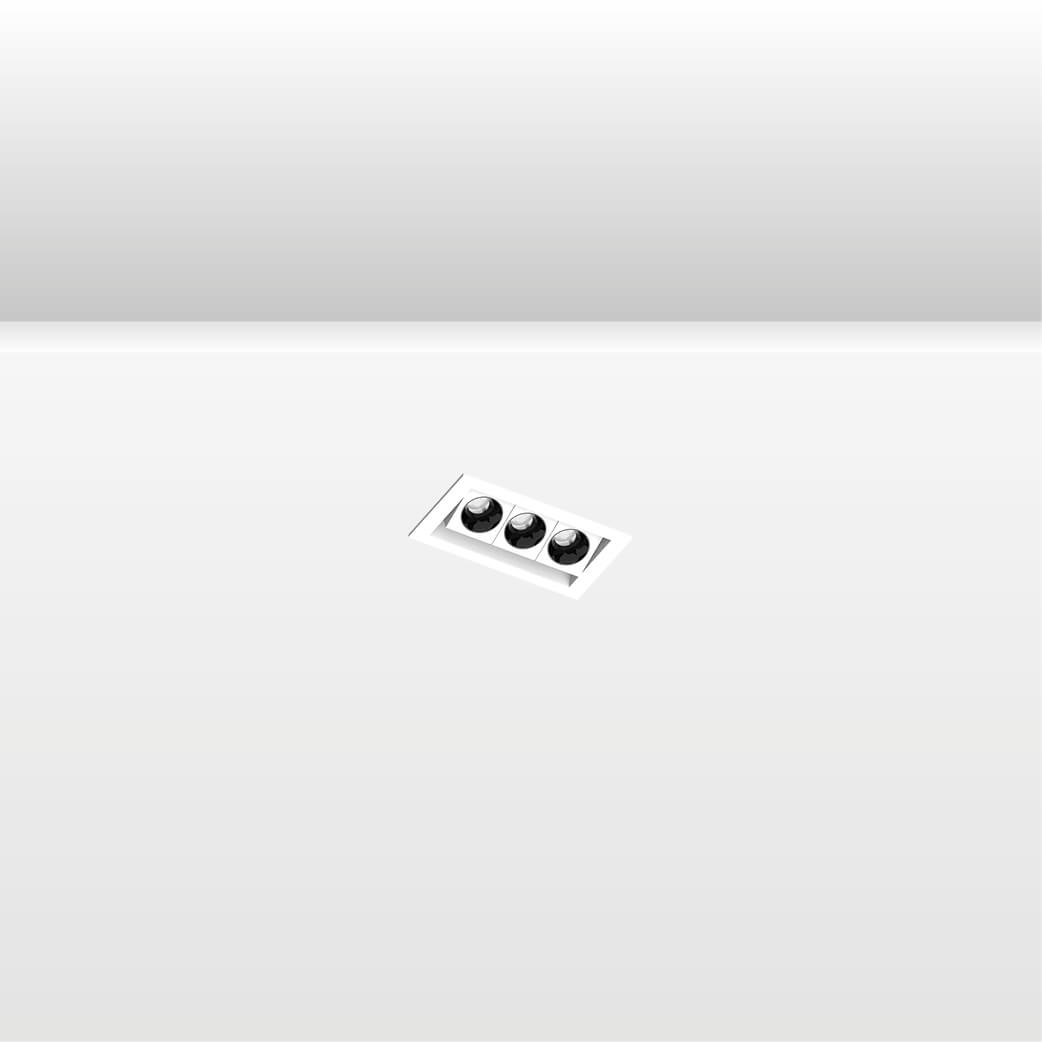

Xlyk 3

Fix

Fix

Trim

Size: 64 x 25 mm
Luminous Flux: 459 lm
LED Power: 6 W- 7 W
Colour Temperature: Single CCT
Ingress Protection: IP40, IP54

IESBIMINSTALLATION GUIDE
Fix

Trimless

Size: 68 x 28 mm
Luminous Flux: 459 lm
LED Power: 6 W- 7 W
Colour Temperature: Single CCT
Ingress Protection: IP40, IP54

IESBIMINSTALLATION GUIDE

Tilt

Tilt

Trim

Size: 72 x 38 mm
Luminous Flux: 459 lm
LED Power: 6 W- 7 W
Colour Temperature: Single CCT
Ingress Protection: IP40, IP54

IESBIMINSTALLATION GUIDE
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K

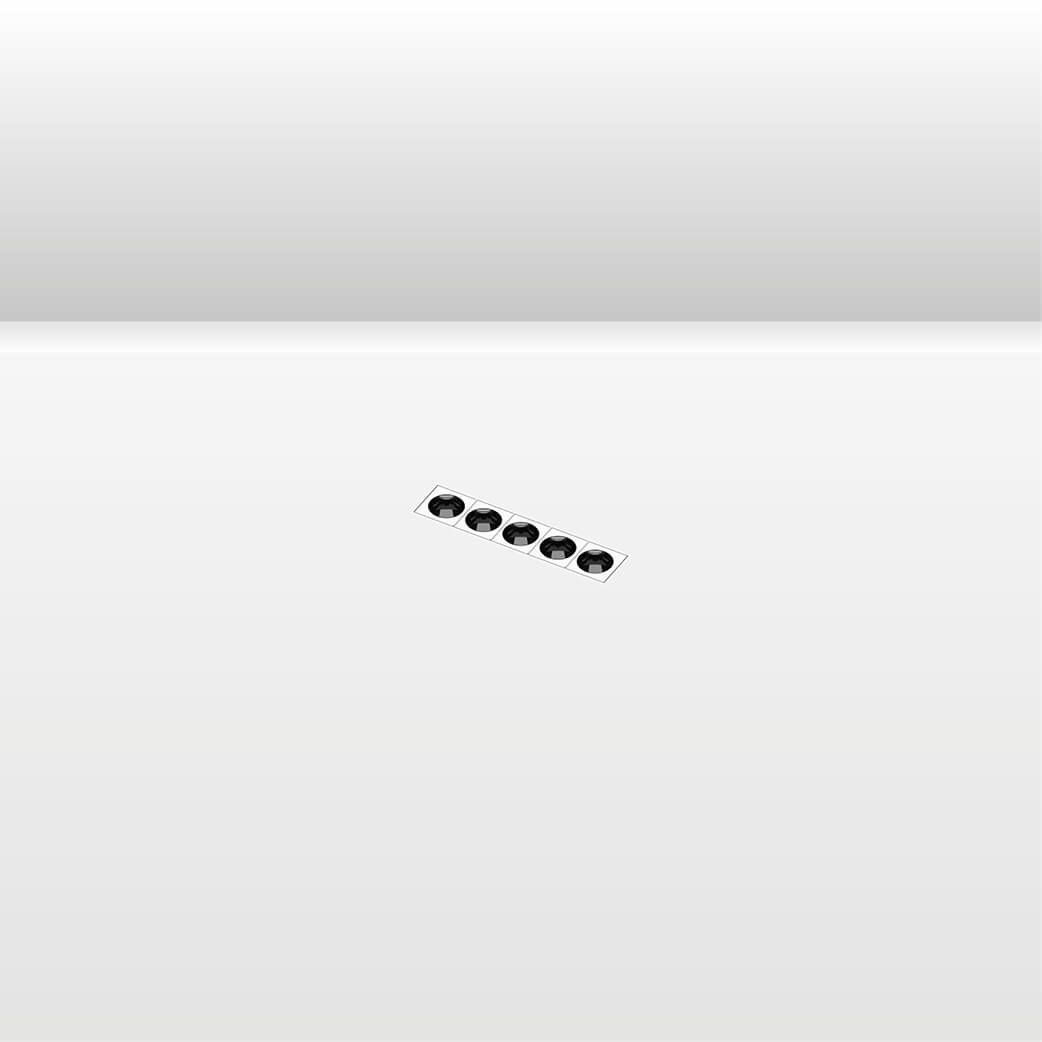

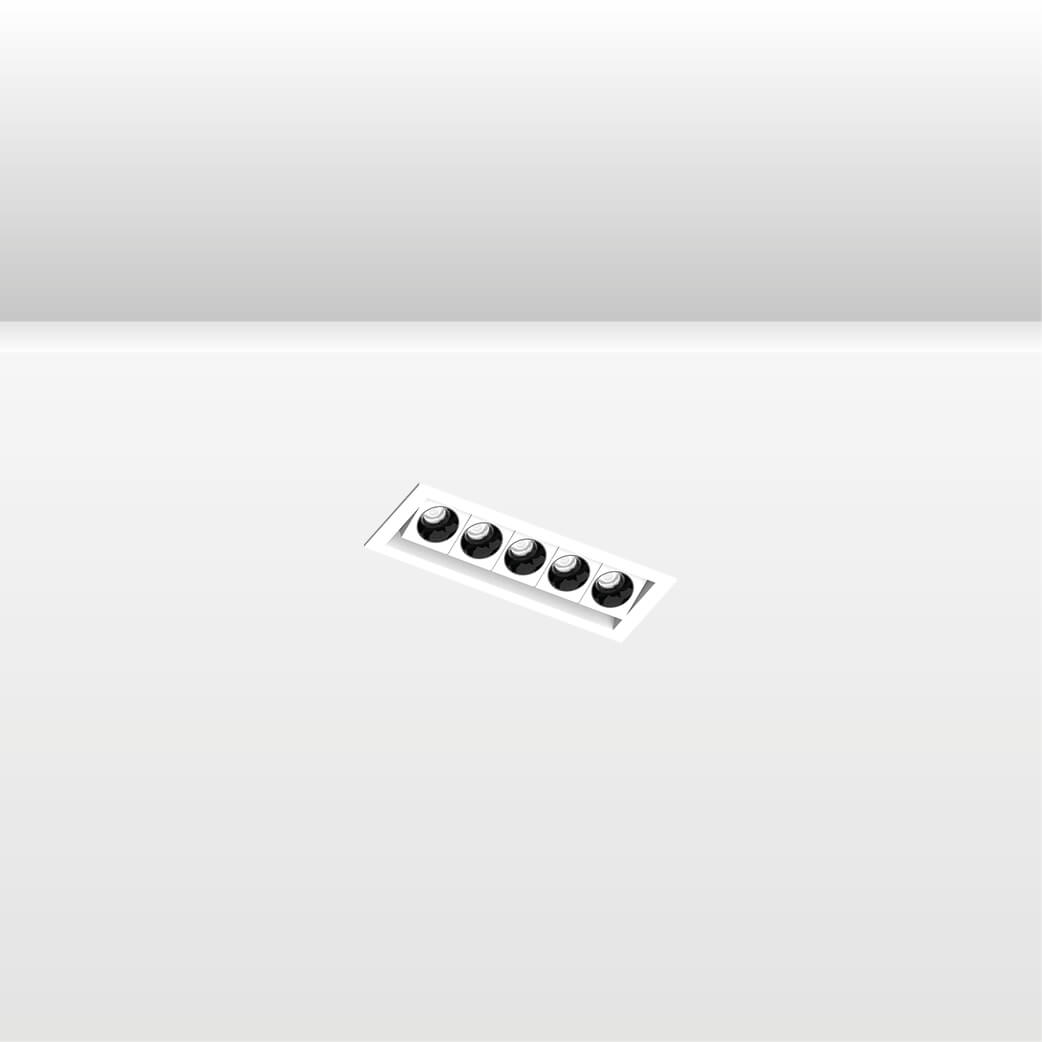

Xlyk 5

Fix

Fix

Trim

Size: 104 x 25 mm
Luminous Flux: 766 lm
LED Power: 10 W- 12 W
Colour Temperature: Single CCT
Ingress Protection: IP40, IP54

IESBIMINSTALLATION GUIDE
Fix

Trimless

Size: 108 x 28 mm
Luminous Flux: 766 lm
LED Power: 10 W- 12 W
Colour Temperature: Single CCT
Ingress Protection: IP40, IP54

IESBIMINSTALLATION GUIDE

Tilt

Tilt

Trim

Size: 112 x 38 mm
Luminous Flux: 766 lm
LED Power: 10 W- 12 W
Colour Temperature: Single CCT
Ingress Protection: IP40, IP54

IESBIMINSTALLATION GUIDE
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K

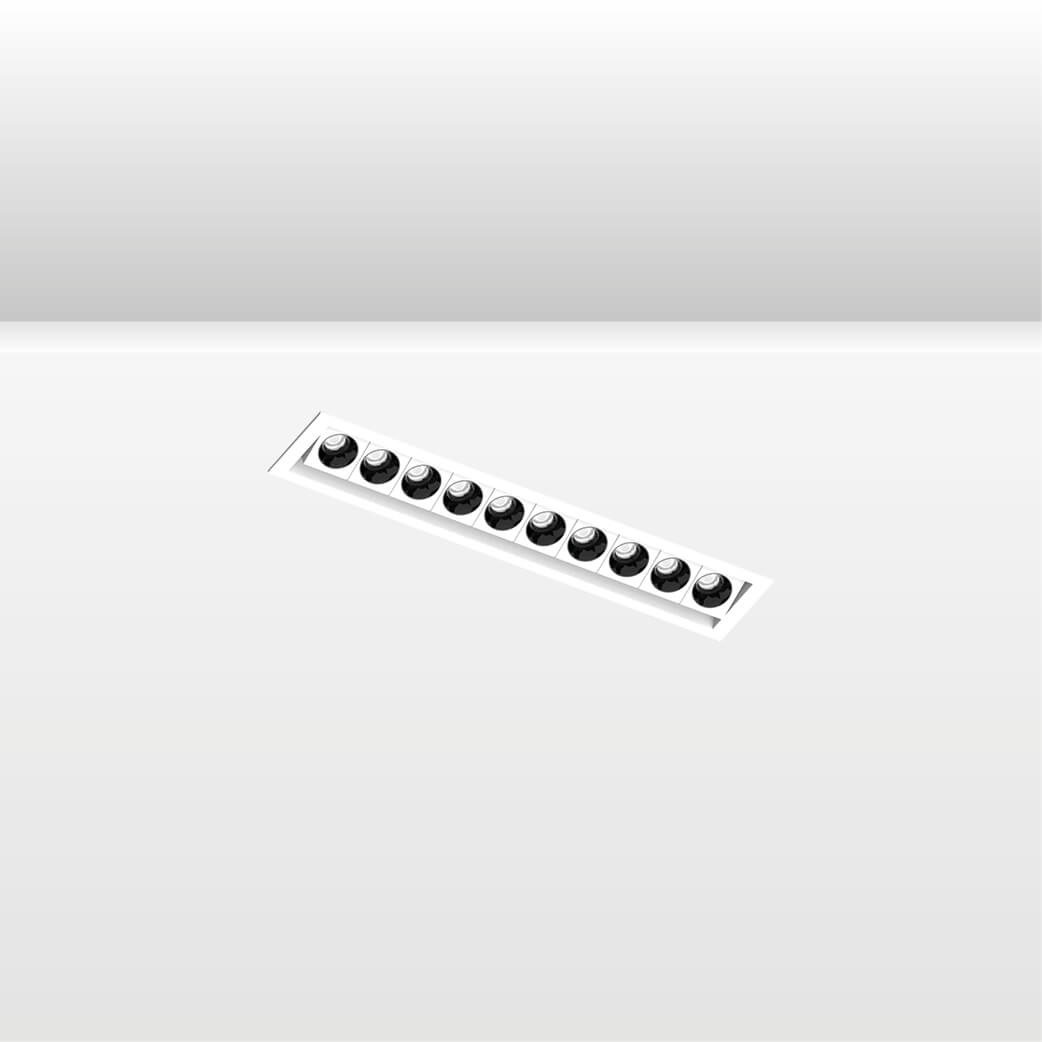

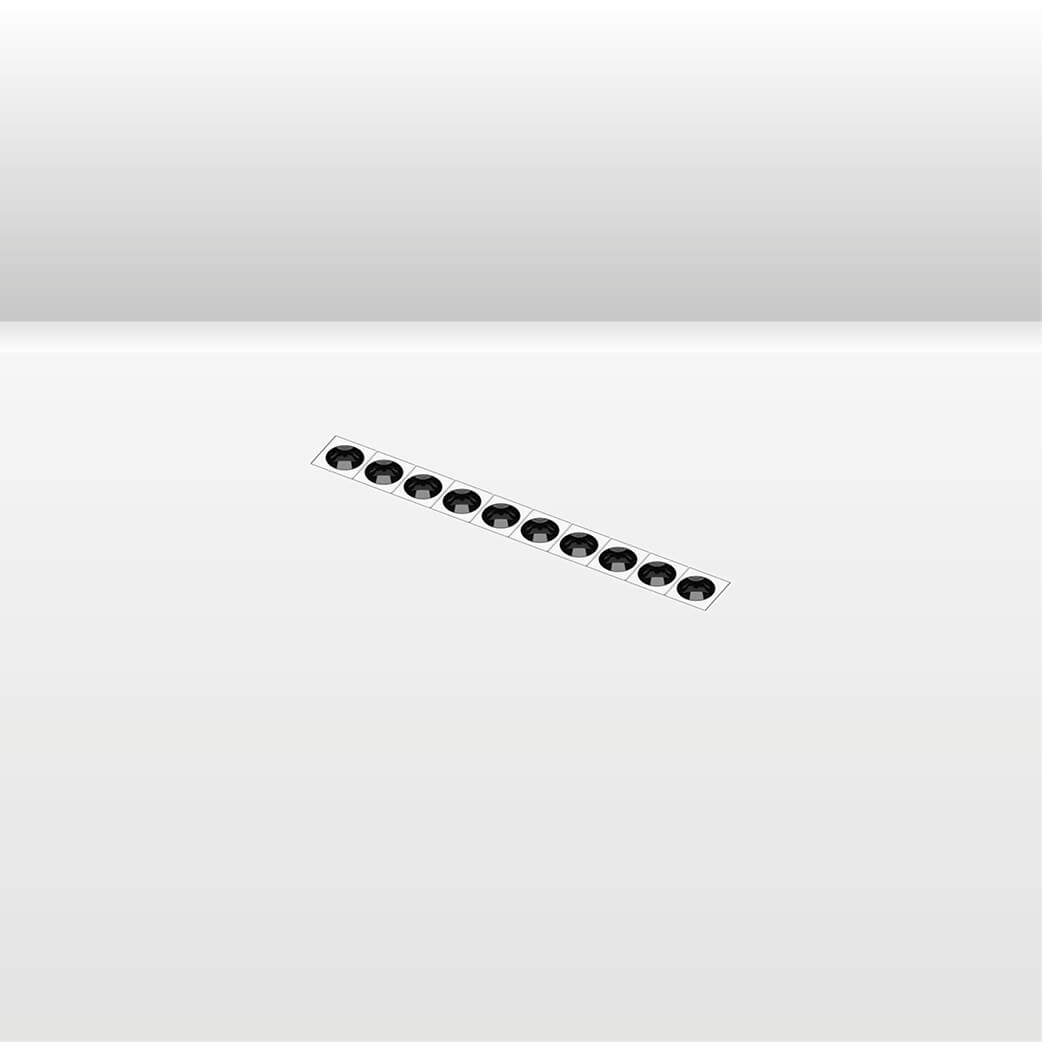

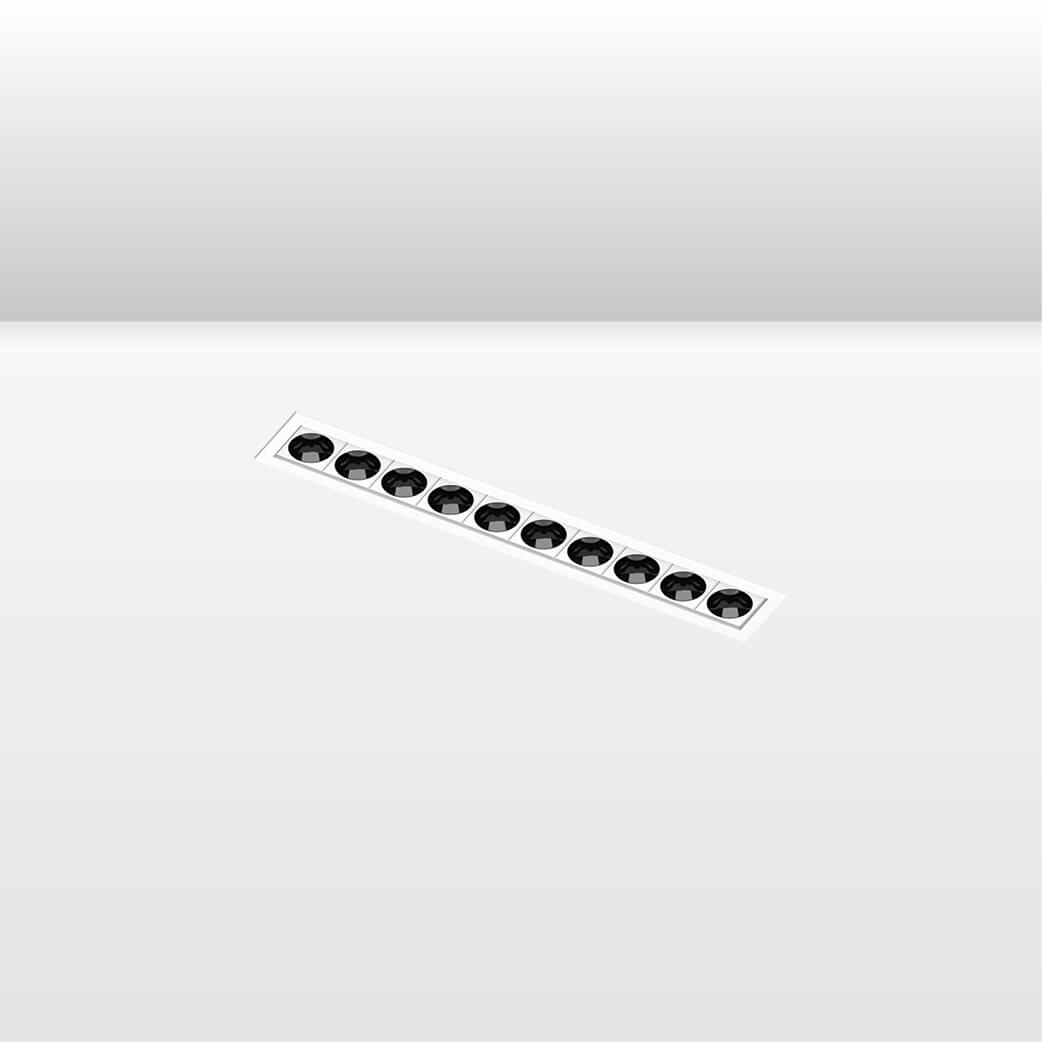

Xlyk 10

Fix

Fix

Trim

Size: 204 x 25 mm
Luminous Flux: 1531 lm
LED Power: 20 W- 24 W
Colour Temperature: Single CCT
Ingress Protection: IP40, IP54

IESBIMINSTALLATION GUIDE
Fix

Trimless

Size: 208 x 28 mm
Luminous Flux: 1531 lm
LED Power: 20 W- 24 W
Colour Temperature: Single CCT
Ingress Protection: IP40, IP54

IESBIMINSTALLATION GUIDE

Tilt

Tilt

Trim

Size: 212 x 38 mm
Luminous Flux: 1531 lm
LED Power: 20 W- 24 W
Colour Temperature: Single CCT
Ingress Protection: IP40, IP54

IESBIMINSTALLATION GUIDE
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K
