SNOOT | PIAZZO SERIES

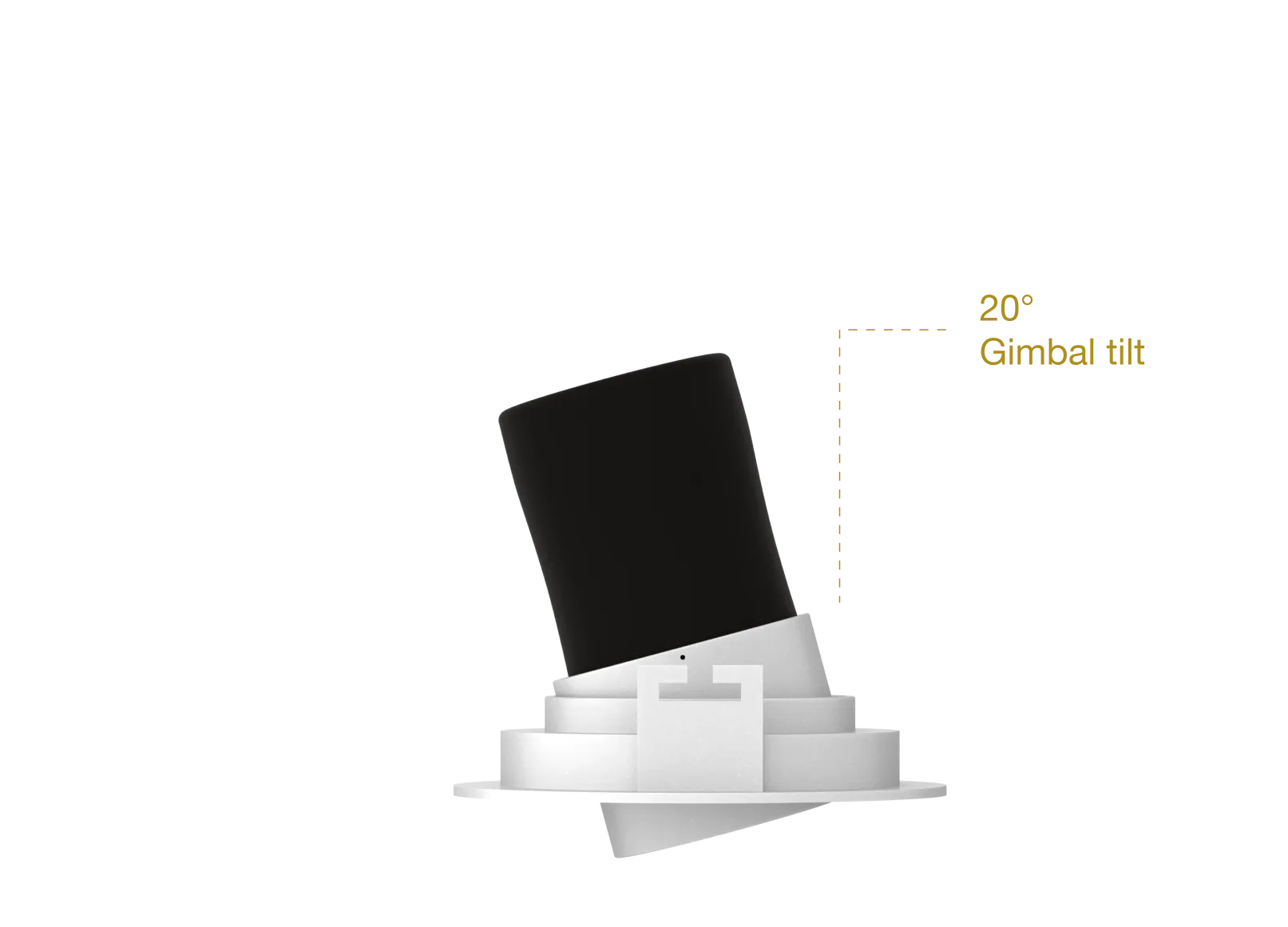

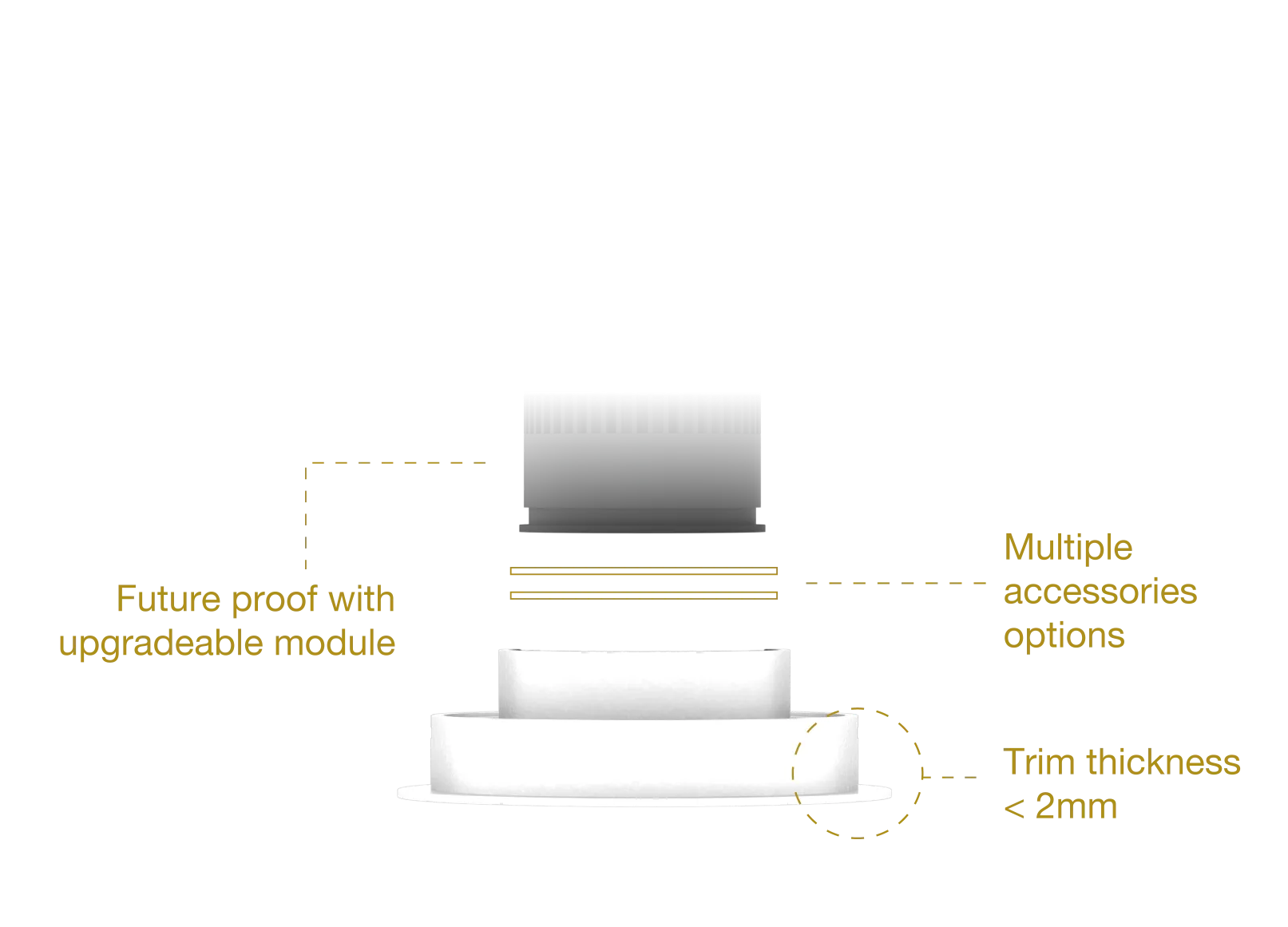

A series of gimbal adjustable downlights designed with ELR’s signature modular concept. LED modules are fully interchangeable with various choices, ideal for illuminating objects in showcasing and retail applications.

Piazzo 3Piazzo 4

Piazzo 3

Tilt

Piazzo 3 Tilt

Round Trim

Size: 85mm
Luminous Flux: 192 lm – 1426 lm
LED Power: 4.5 W – 14.6 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE
Piazzo 3 Square Uno

Square Uno Trim

Size: 88 x 88mm
Luminous Flux: 192 lm – 1426 lm
LED Power: 4.5 W – 14.6 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE
Piazzo 3 Square Duo

Square Duo Trim

Size: 88 x 170mm
Luminous Flux: 192 lm – 1426 lm
LED Power: 4.5 W – 14.6 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE
Piazzo 3 Square Trio

Square Trio Trim

Size: 88 x 255mm
Luminous Flux: 192 lm – 1426 lm
LED Power: 4.5 W – 14.6 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K

Piazzo 4

Tilt

Piazzo 4 Round Tilt

Round Trim

Size: 110mm
Luminous Flux: 842 lm – 2795 lm
LED Power: 17.0 W – 28.0 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE
Piazzo 4 Square Uno

Square Uno Trim

Size: 130 x 130mm
Luminous Flux: 842 lm – 2795 lm
LED Power: 17.0 W – 28.0 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE
Piazzo 4 Square Duo

Square Duo Trim

Size: 130 x 240mm
Luminous Flux: 842 lm – 2795 lm
LED Power: 17.0 W – 28.0 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE
Piazzo 4 Square Trio

Square Trio Trim

Size: 130 x 350mm
Luminous Flux: 842 lm – 2795 lm
LED Power: 17.0 W – 28.0 W
Colour Temperature: Single CCT, WD, TW, RGBW, FK, CS
Ingress Protection: IP40

IESBIMINSTALLATION GUIDE
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2700K / 3000K / 3500K / 4000K / 5000K
