LED MODULE SERIES
ELR LED modules are available in different sizes with power ranging from 4.5W up to 66W, suitable for multiple applications of various ceiling
height conditions with lumen output from 259lm up to 9240lm.
Warm to Cool White Light

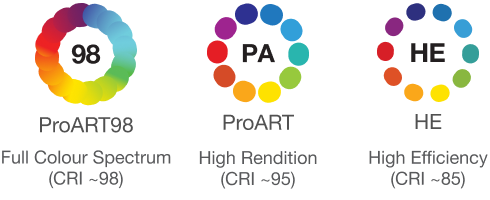

Single CCT LED modules are available with options for colour rendering and a range of colour temperatures, from warm white (2700K) to cool white (5000K).
-
Constant Current – CC
CRI: PA | 98
-
High Intensity – HI
CRI: HE | PA | 98
-
Constant Voltage – 24 CV
CRI: HE | PA | 98
-
Constant Voltage – 48CV
CRI: PA | 98

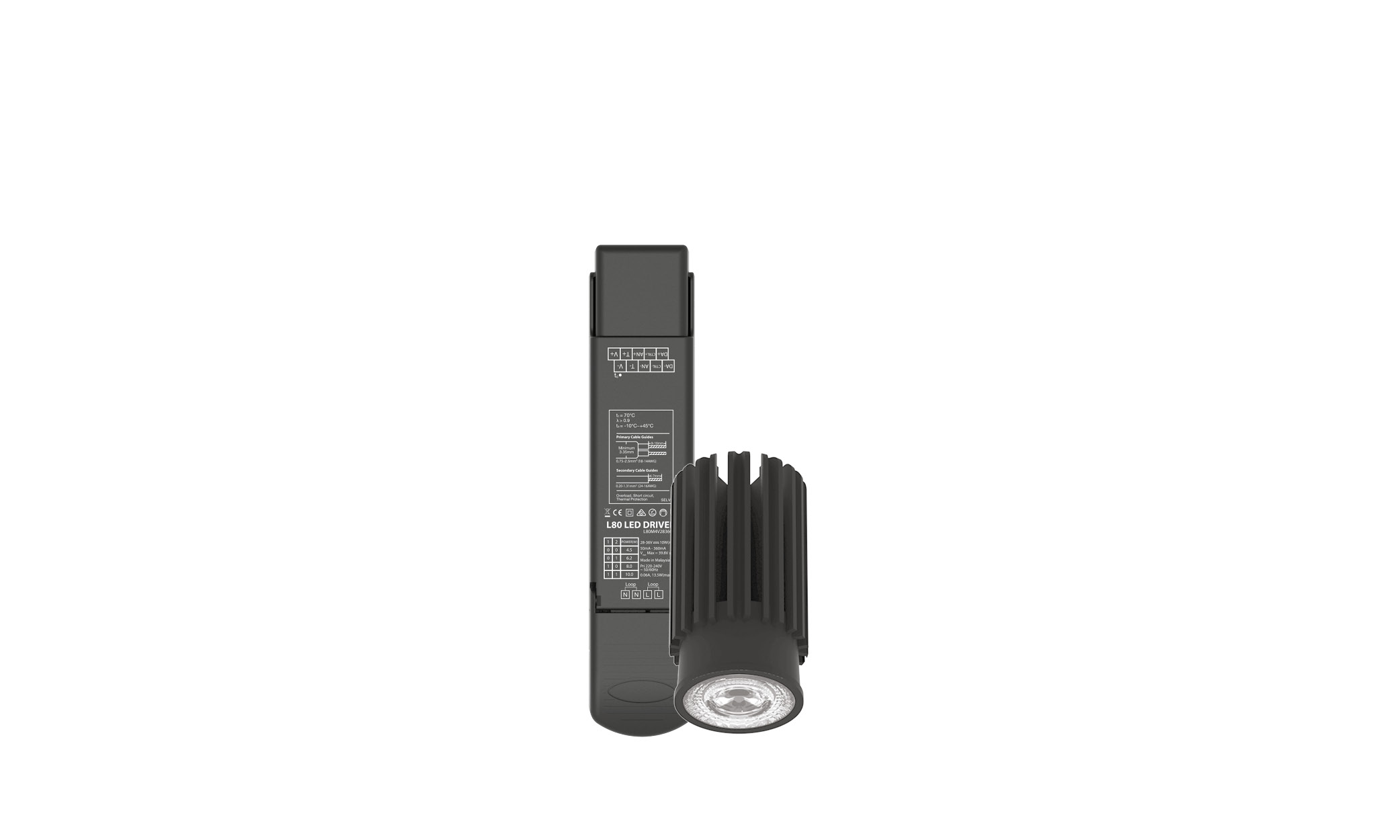

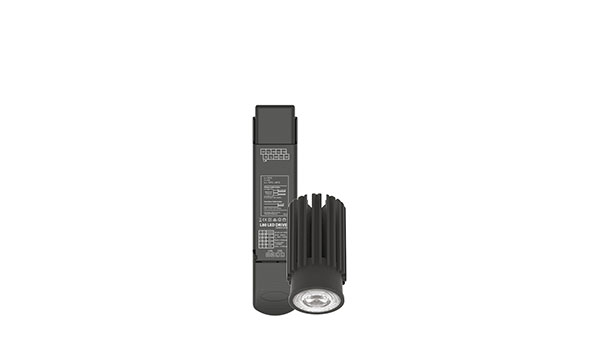

20P
Diameter (mm): Ø35
Power: 8W
Luminous Flux: 644 – 920 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 15°, 25°, 40°
Ingress Protection: IP54
20PLE
Diameter (mm): Ø35
Power: 8W
Luminous Flux: 499 – 920 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 15°, 25°, 40°
Ingress Protection: IP54

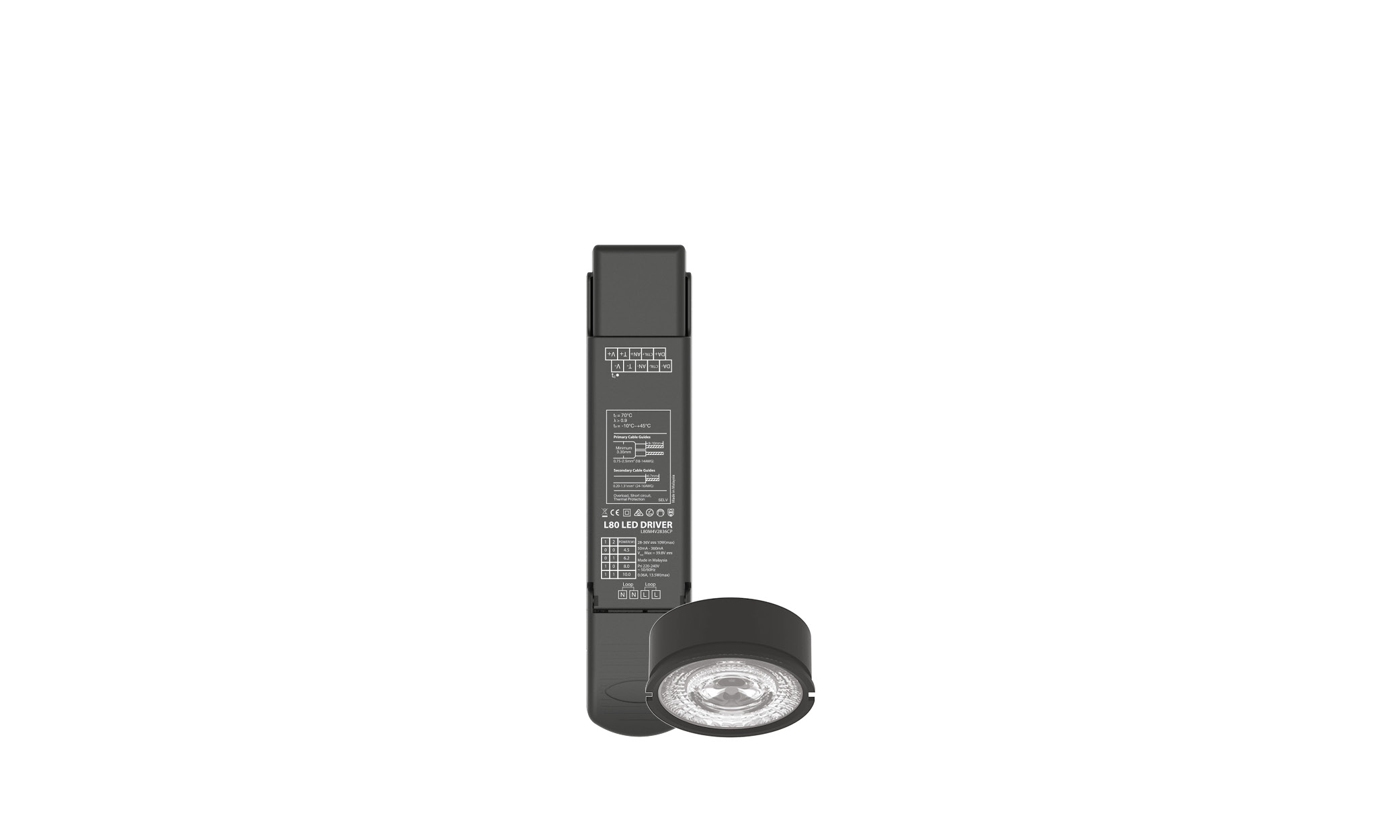

Coin
Diameter (mm): Ø51
Power: 4.5W
Luminous Flux: 332 – 608 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
35N
Diameter (mm): Ø51
Power: 6.9W
Luminous Flux: 405 – 743 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 60°
Ingress Protection: IP54

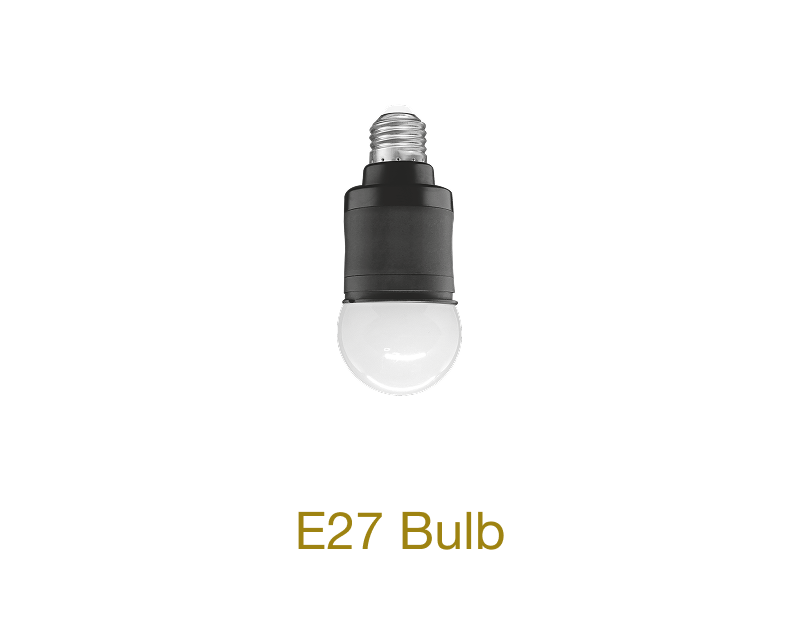

35N E27
Diameter (mm): Ø55, Ø80, Ø120
Power: 5.5W
Luminous Flux: 405 – 605 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 180°
Ingress Protection: IP40

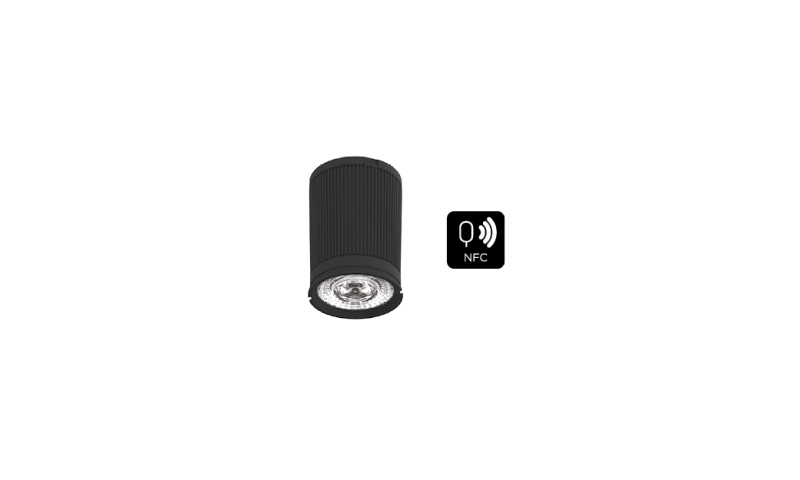

50N
Diameter (mm): Ø51
Power: 9.4W
Luminous Flux: 553 – 1013 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 60°
Ingress Protection: IP54

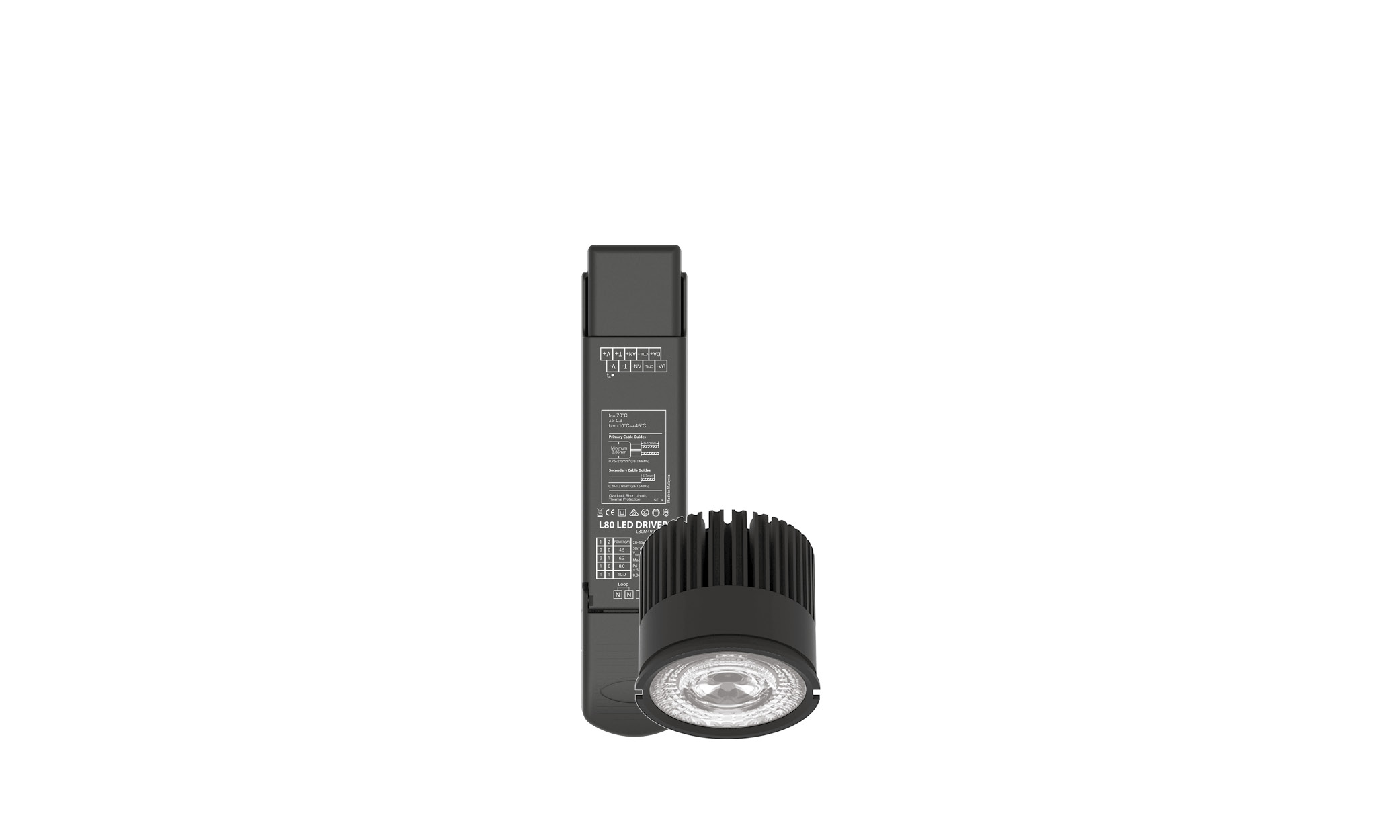

35P
Diameter (mm): Ø51
Power: 8W
Luminous Flux: 590 – 1080 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
50P
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 737 – 1620 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54

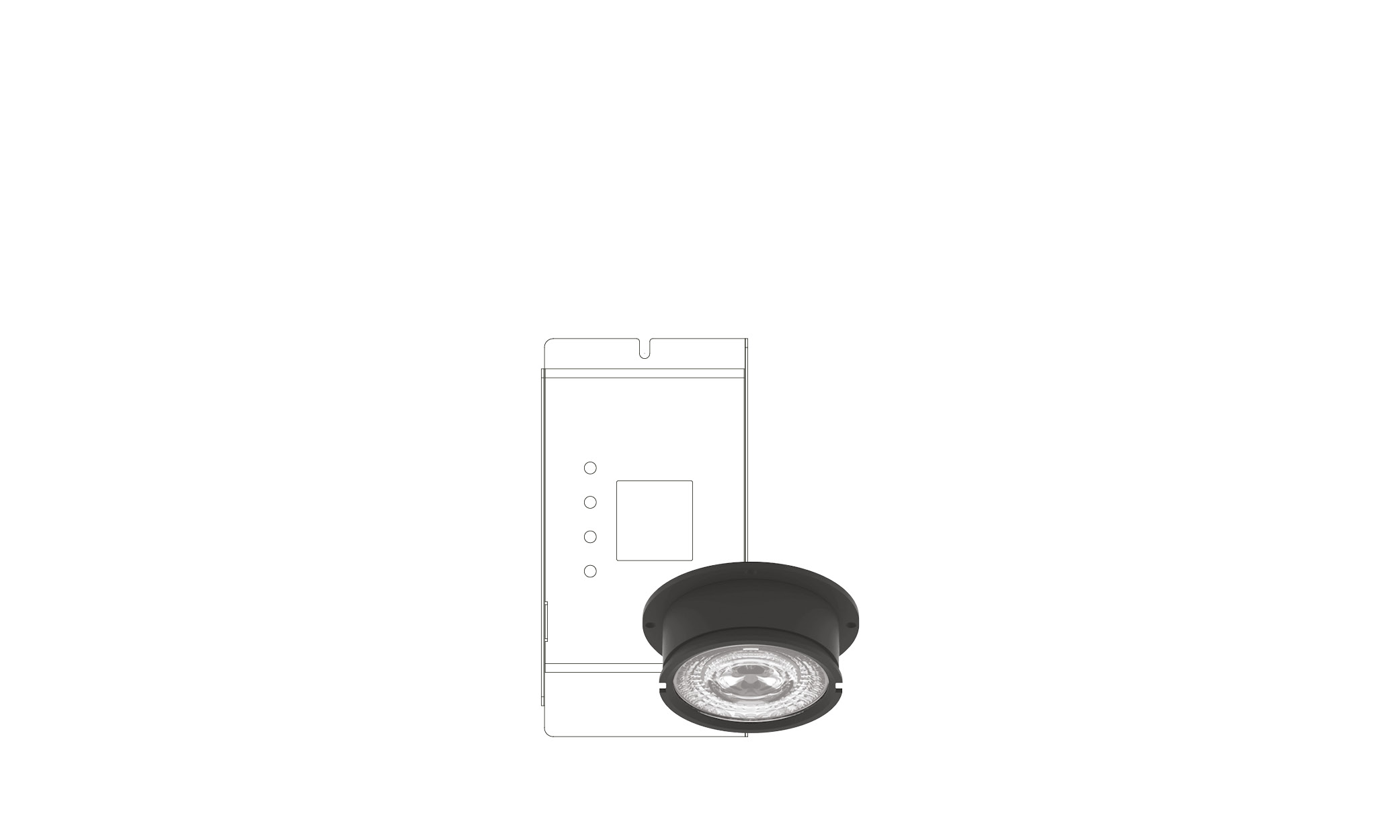

50PLE
Diameter (mm): Ø51
Power: 17W
Luminous Flux: 590 – 2091 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54

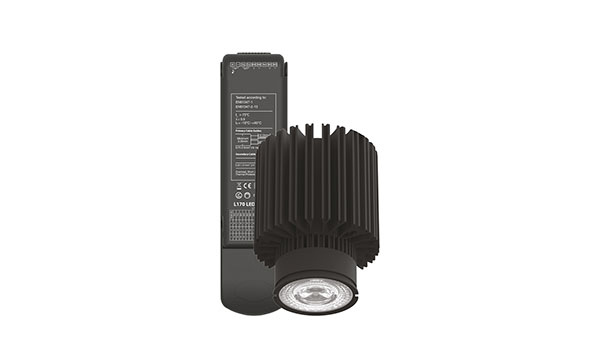

50PM
Diameter (mm): Ø51
Power: 21W
Luminous Flux: 1139 – 2583 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54

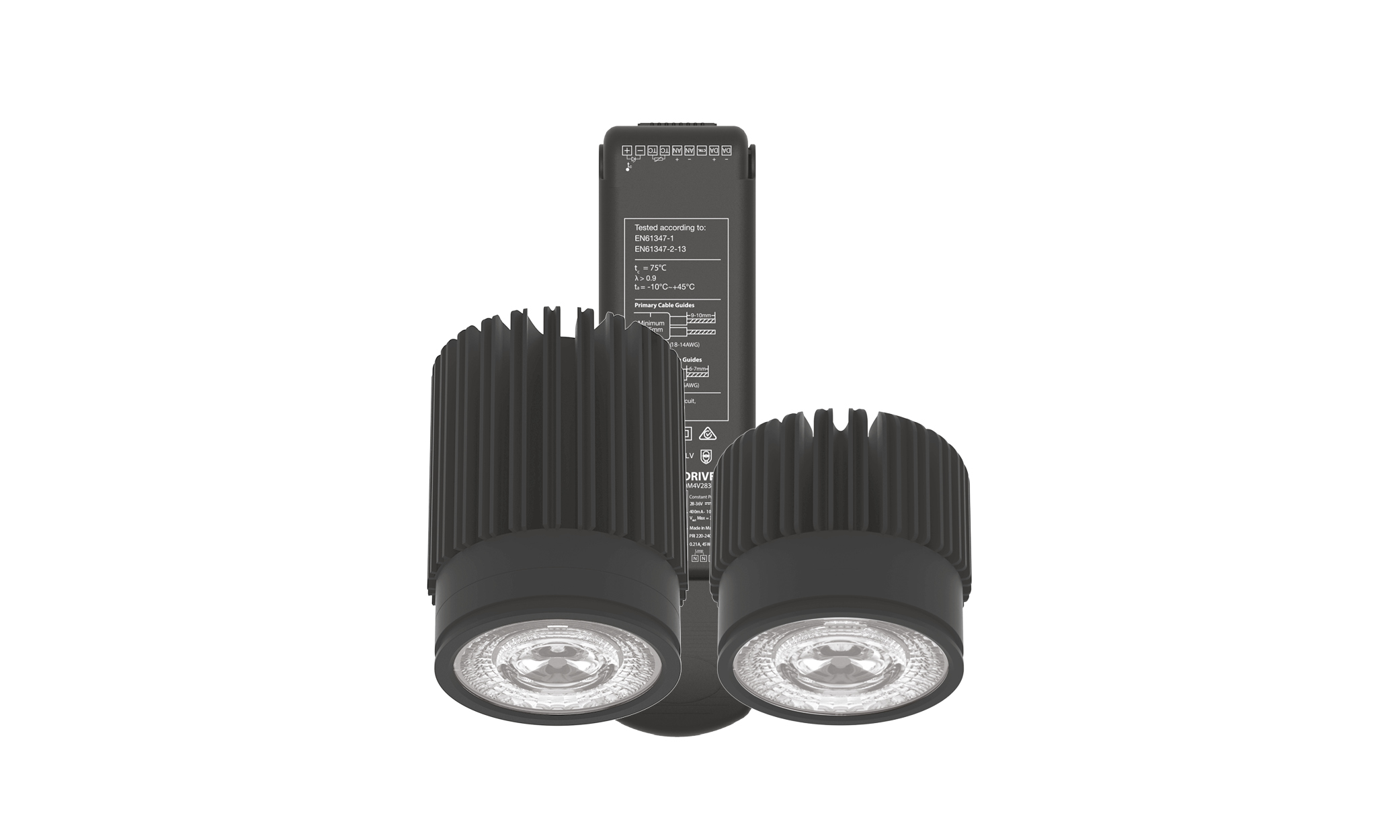

100P
Diameter (mm): Ø70
Power: 23W
Luminous Flux: 1538 – 3105 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 12°, 20°, 35°, 60°
Ingress Protection: IP54
100 PLE
Diameter (mm): Ø70
Power: 30W
Luminous Flux: 1085 – 3900 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 12°, 20°, 35°, 60°
Ingress Protection: IP54
300P
Diameter (mm): Ø105
Power: 36W
Luminous Flux: 3276 – 5040 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 15°, 35°, 60°
Ingress Protection: IP40

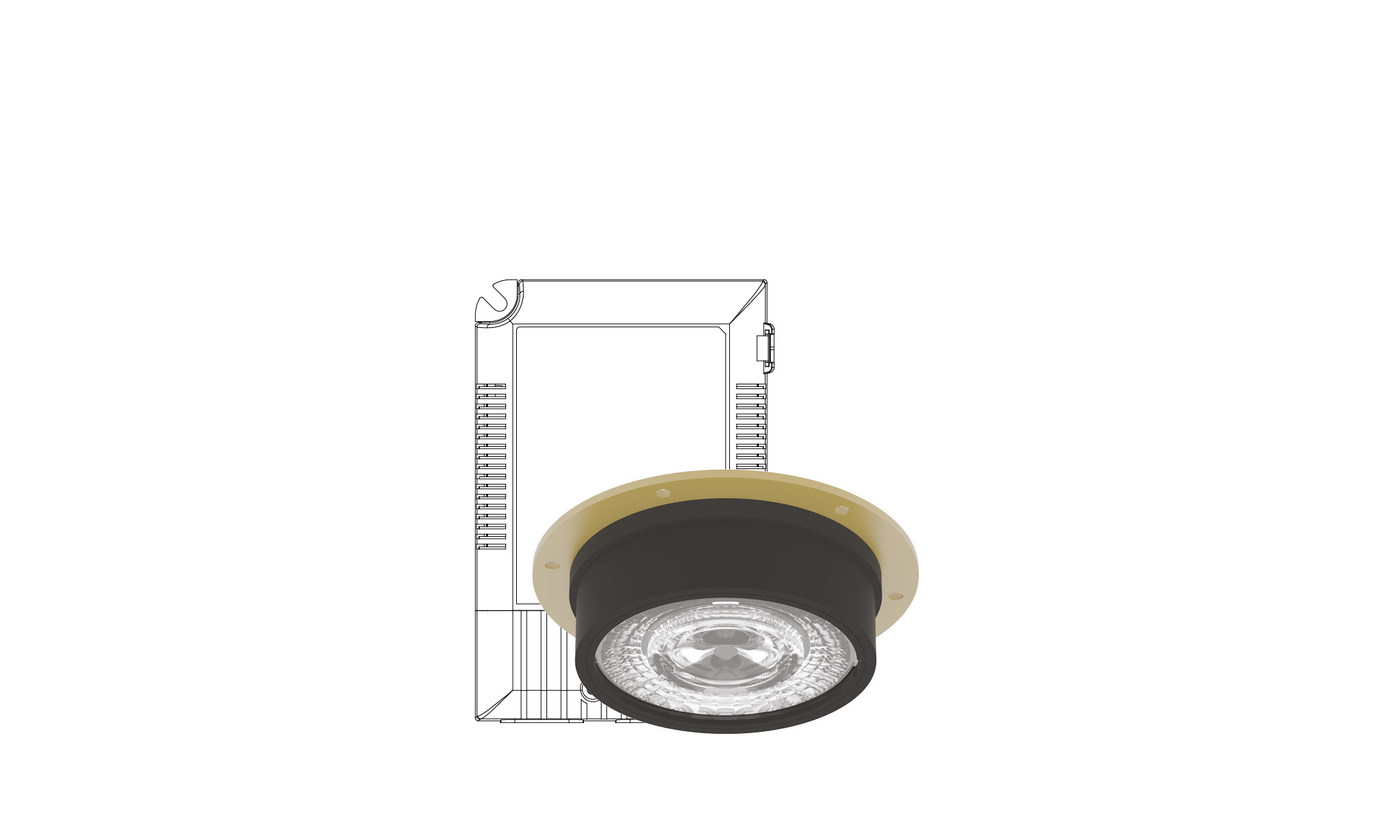

300PLE
Diameter (mm): Ø105
Power: 36W
Luminous Flux: 3276 – 5040 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 15°, 35°, 60°
Ingress Protection: IP54

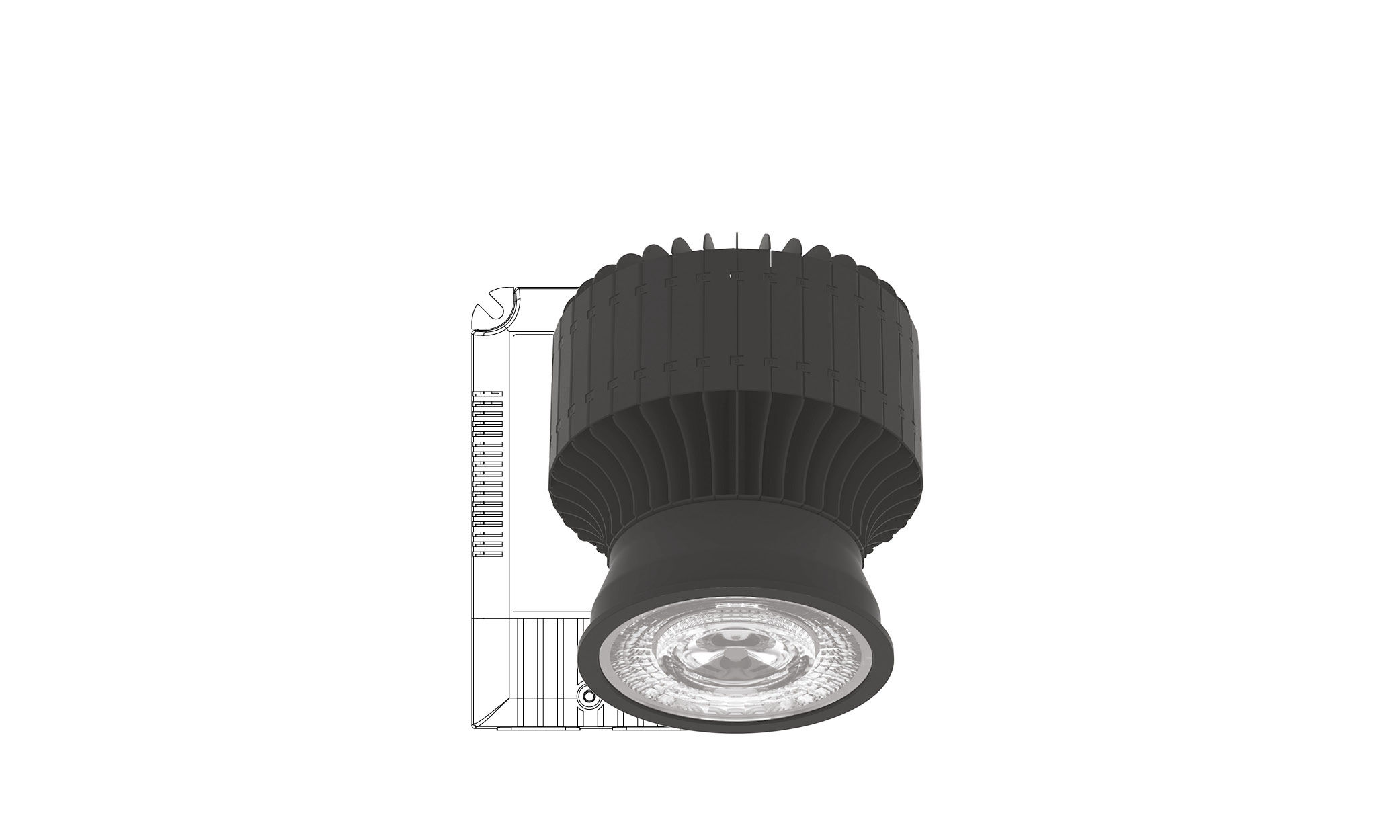

500P
Diameter (mm): Ø51
Power: 54W
Luminous Flux: 7560 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 15°, 35°, 60°
Ingress Protection: IP40
500PLE
Diameter (mm): Ø51
Power: 54W
Luminous Flux: 7560 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 15°, 35°, 60°
Ingress Protection: IP54

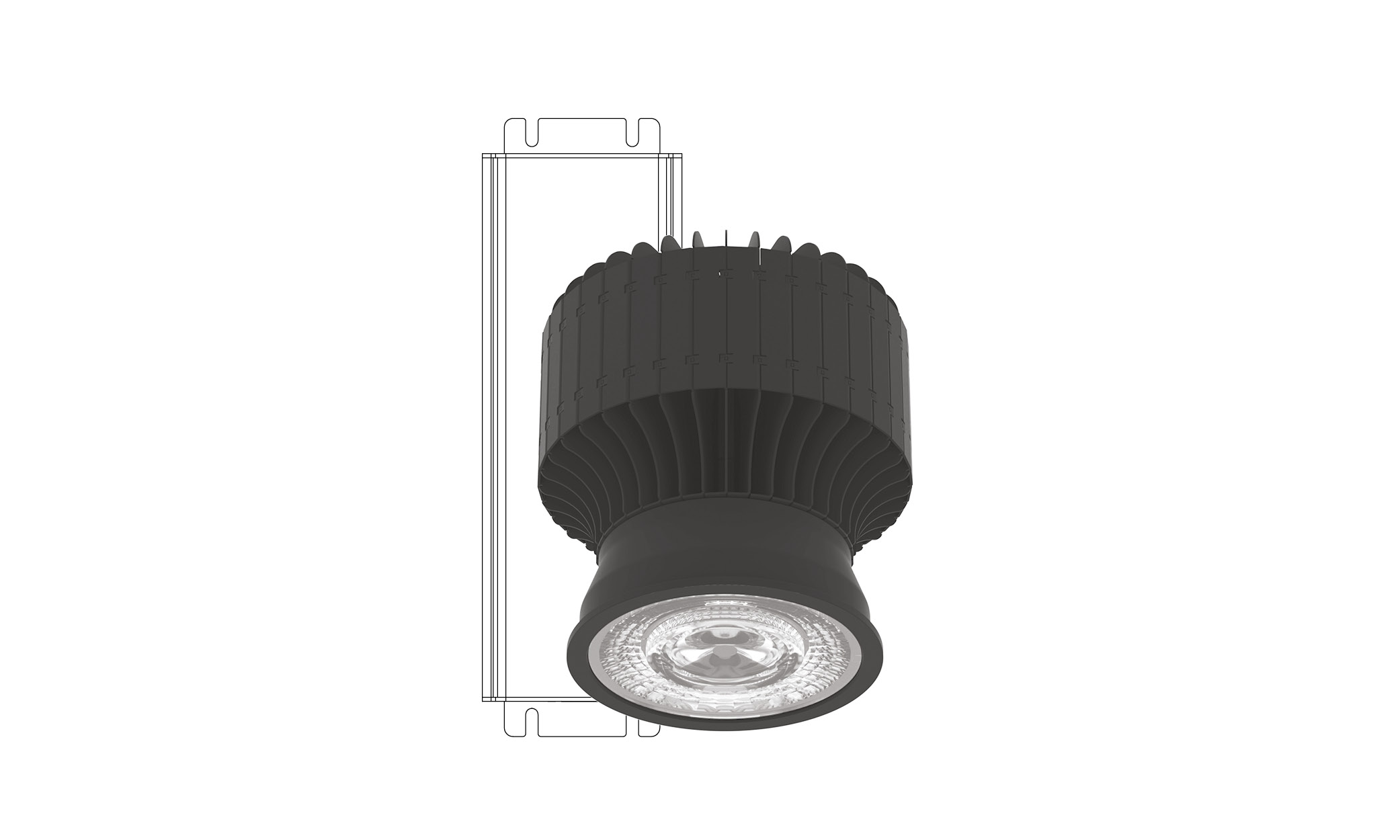

700P
Diameter (mm): Ø105
Power: 66W
Luminous Flux: 9240 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 15°, 35°, 60°
Ingress Protection: IP40
Constant Current – CC

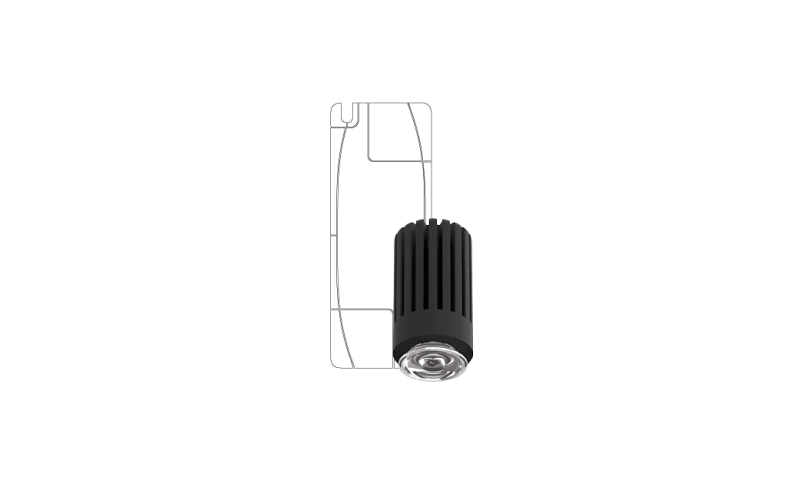

MS Module 2
Diameter (mm): Ø35
Power: 9W
Luminous Flux: 576 – 900 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 15°, 35°, 60°
Ingress Protection: IP54

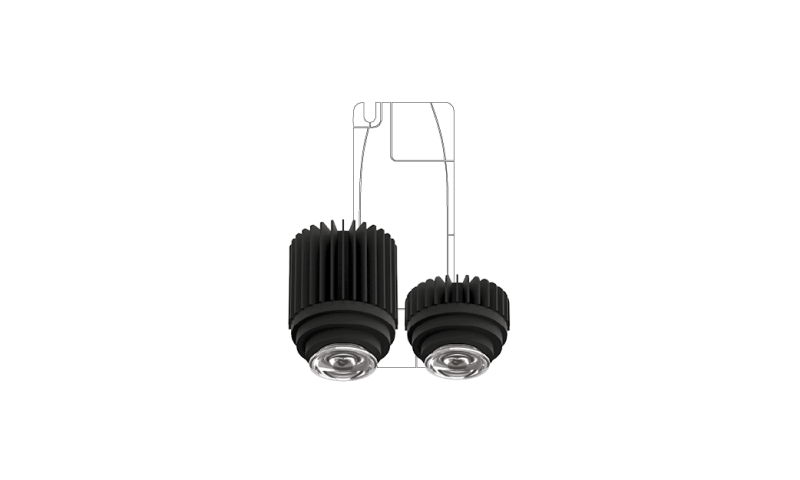

MS Module 3
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 449 – 1200 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 15°, 25°,40° 50°
Ingress Protection: IP54

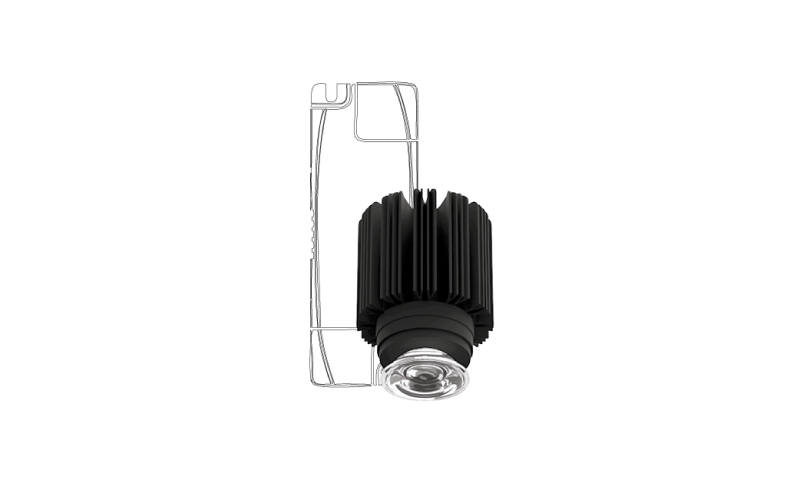

MS Module 4
Diameter (mm): Ø51
Power: 21W
Luminous Flux: 1416 – 2120 lm
Colour Temperature: Single CCT
CRI: PA
Beam Angle: 15°, 25°,40° 50°
Ingress Protection: IP54

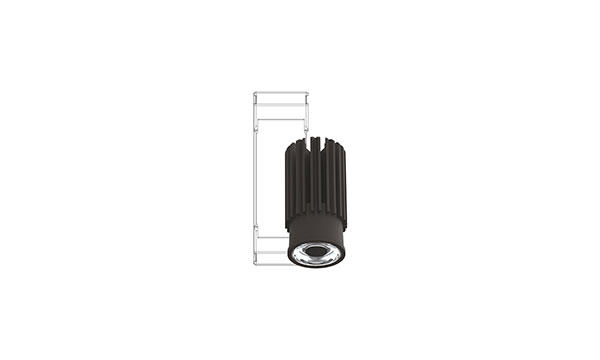

20P HI
Diameter (mm): Ø35
Power: 6.2W
Luminous Flux: 149 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 8°
Ingress Protection: IP54

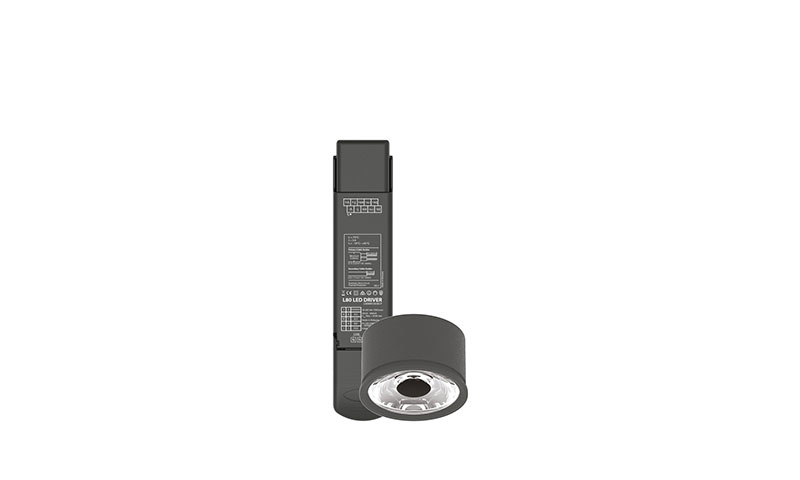

Coin HI
Diameter (mm): Ø51
Power: 4.5W
Luminous Flux: 315 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°
Ingress Protection: IP54
35N HI
Diameter (mm): Ø51
Power: 6.9W
Luminous Flux: 319 – 387 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°
Ingress Protection: IP54

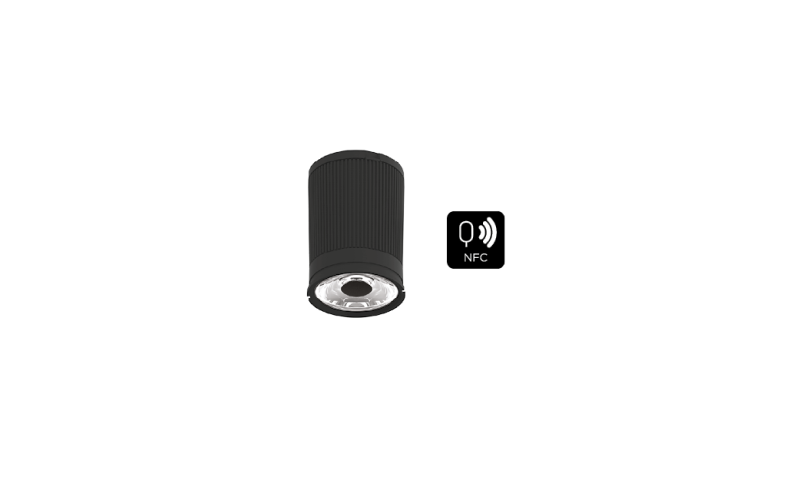

50N HI
Diameter (mm): Ø51
Power: 9.4W
Luminous Flux: 434 – 527 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°
Ingress Protection: IP54
35P HI
Diameter (mm): Ø51
Power: 8W
Luminous Flux: 462 – 561 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°, 7°
Ingress Protection: IP54
20P 24CV
Diameter (mm): Ø35
Power: 8W
Luminous Flux: 536 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 15°, 25°, 40°
Ingress Protection: IP54

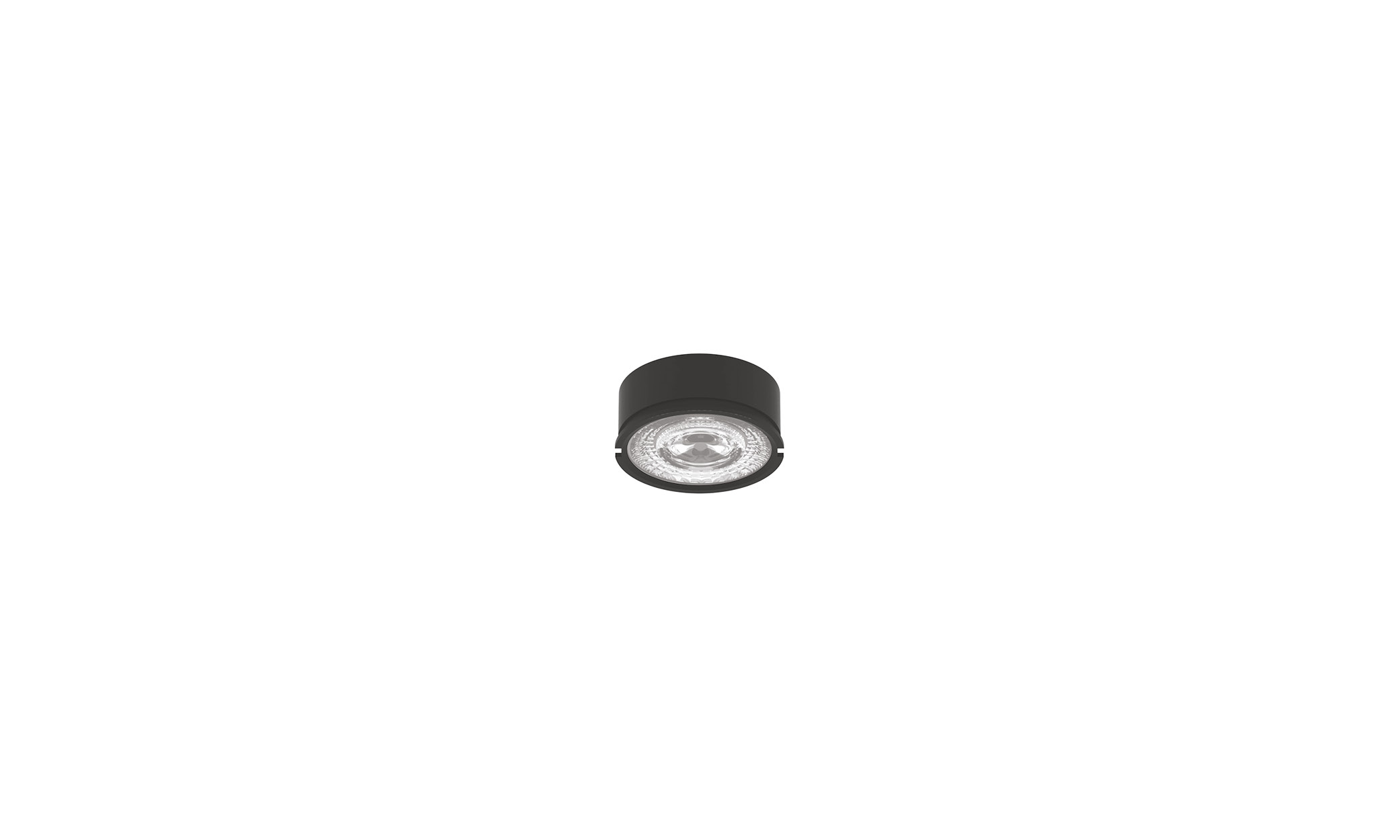

Coin 24CV
Diameter (mm): Ø51
Power: 4.5W
Luminous Flux: 349 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
35P 24CV
Diameter (mm): Ø51
Power: 8W
Luminous Flux: 441 – 629 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54

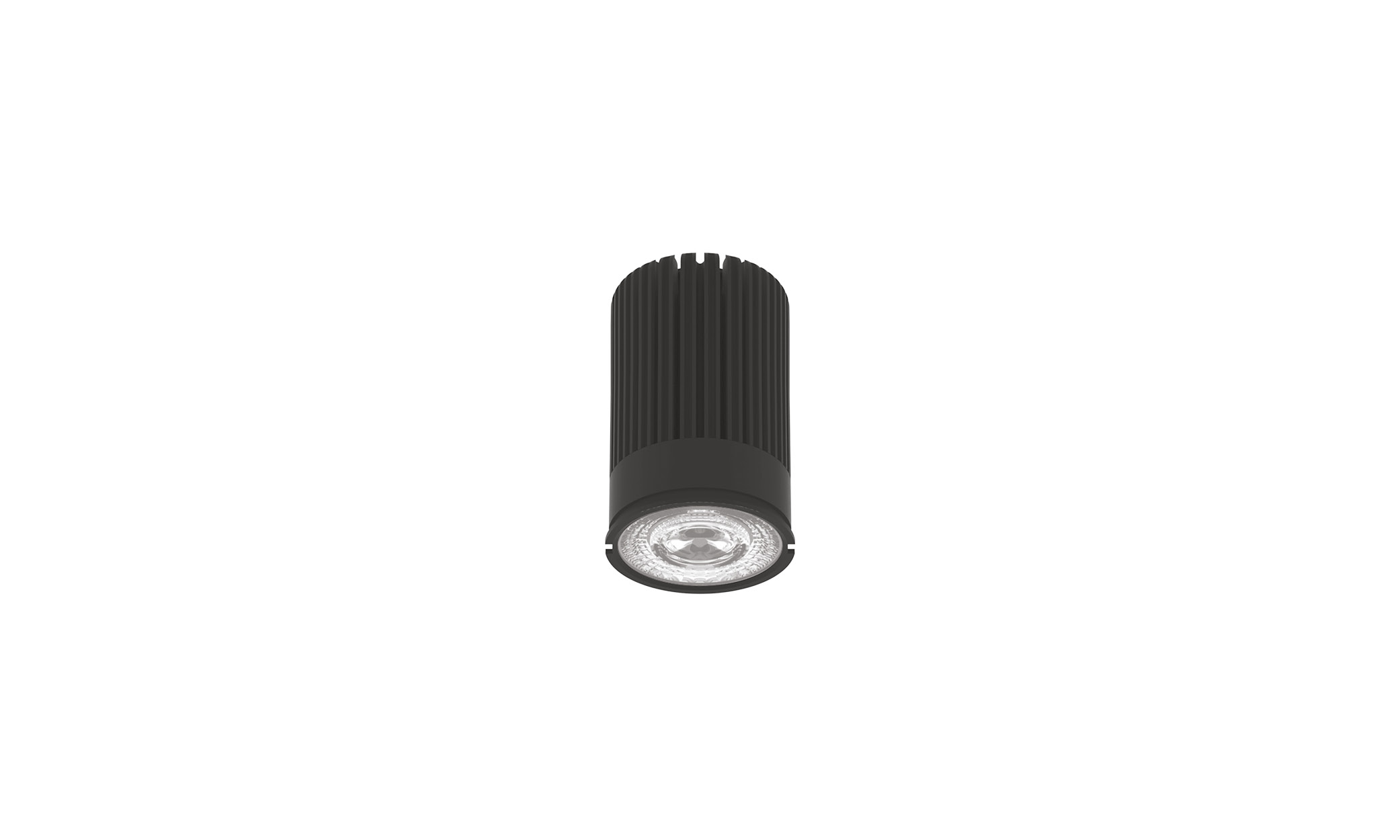

50P 24CV
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 364 – 893 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54

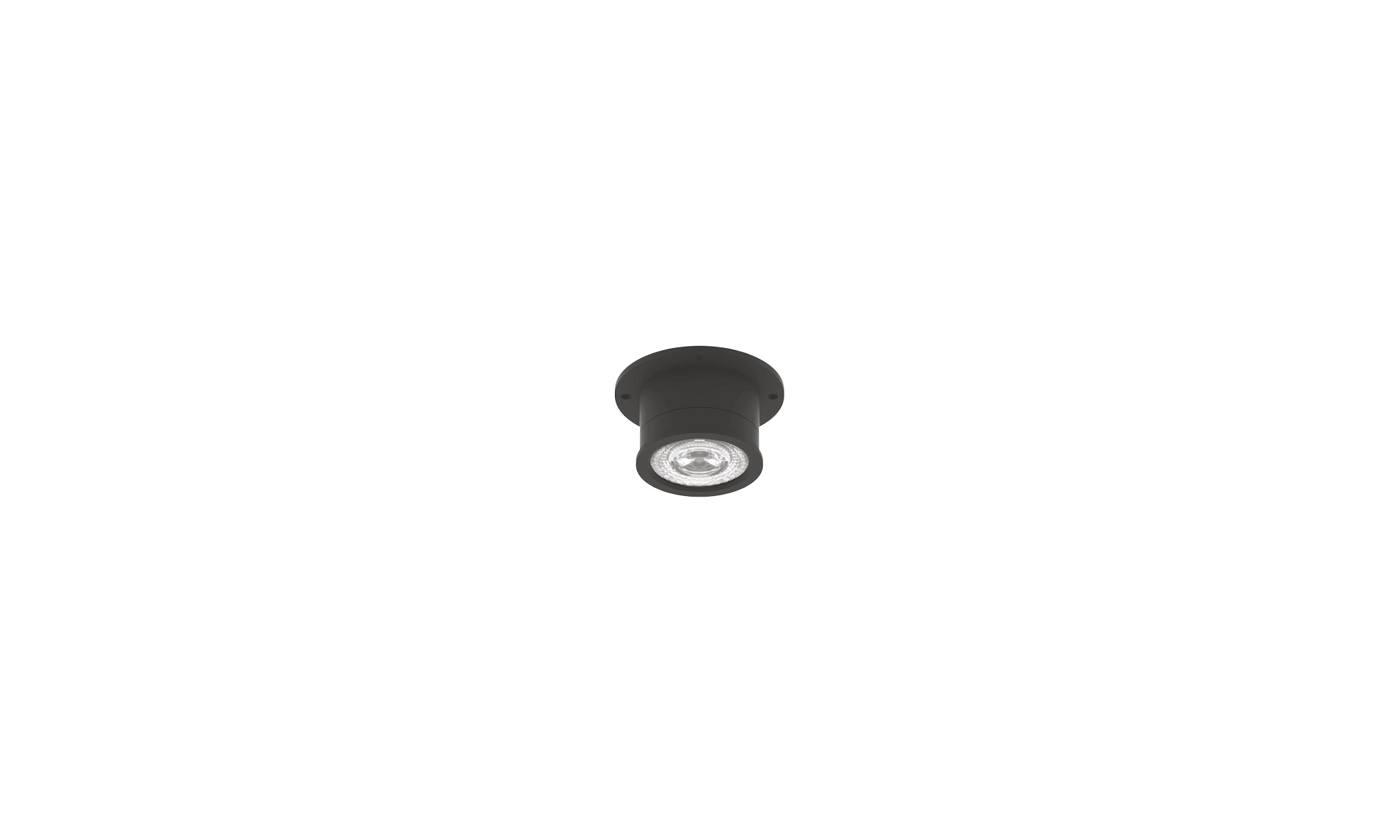

20PLE 48CV
Diameter (mm): Ø35
Power: 8W
Luminous Flux: 474 – 874 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 15°, 25°, 40°
Ingress Protection: IP54

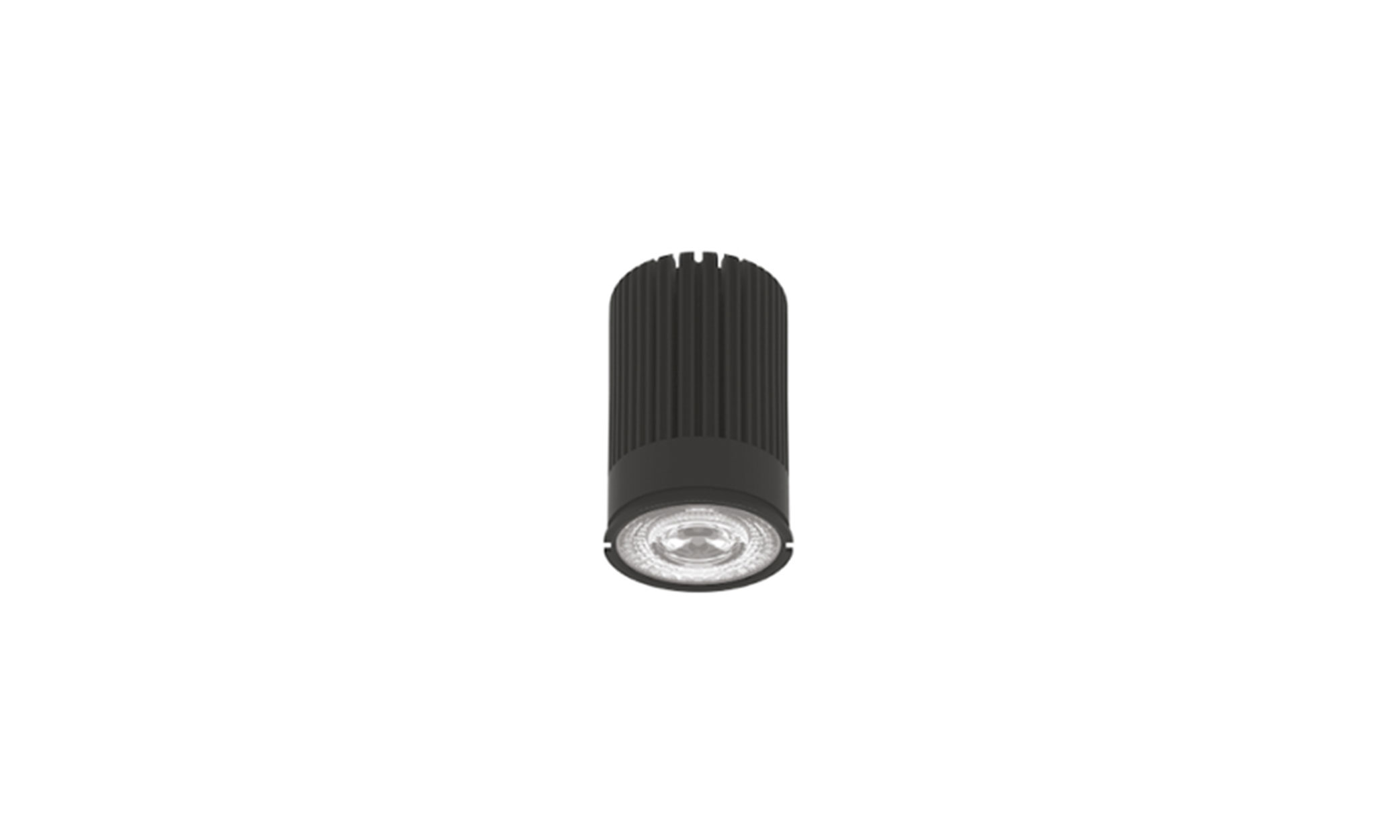

50P 48CV
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 700 – 1539 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54

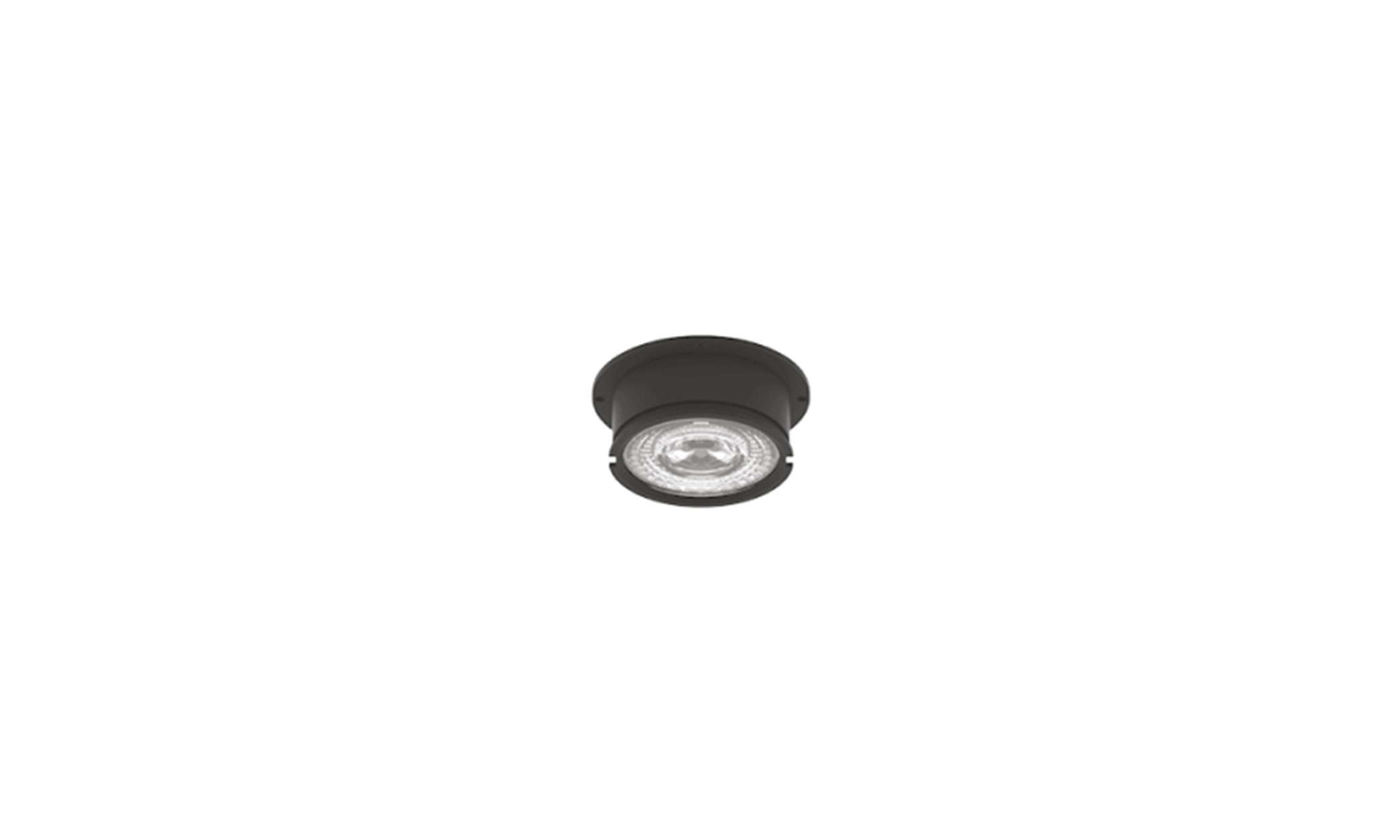

50PLE 48CV
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 560 – 1539 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54

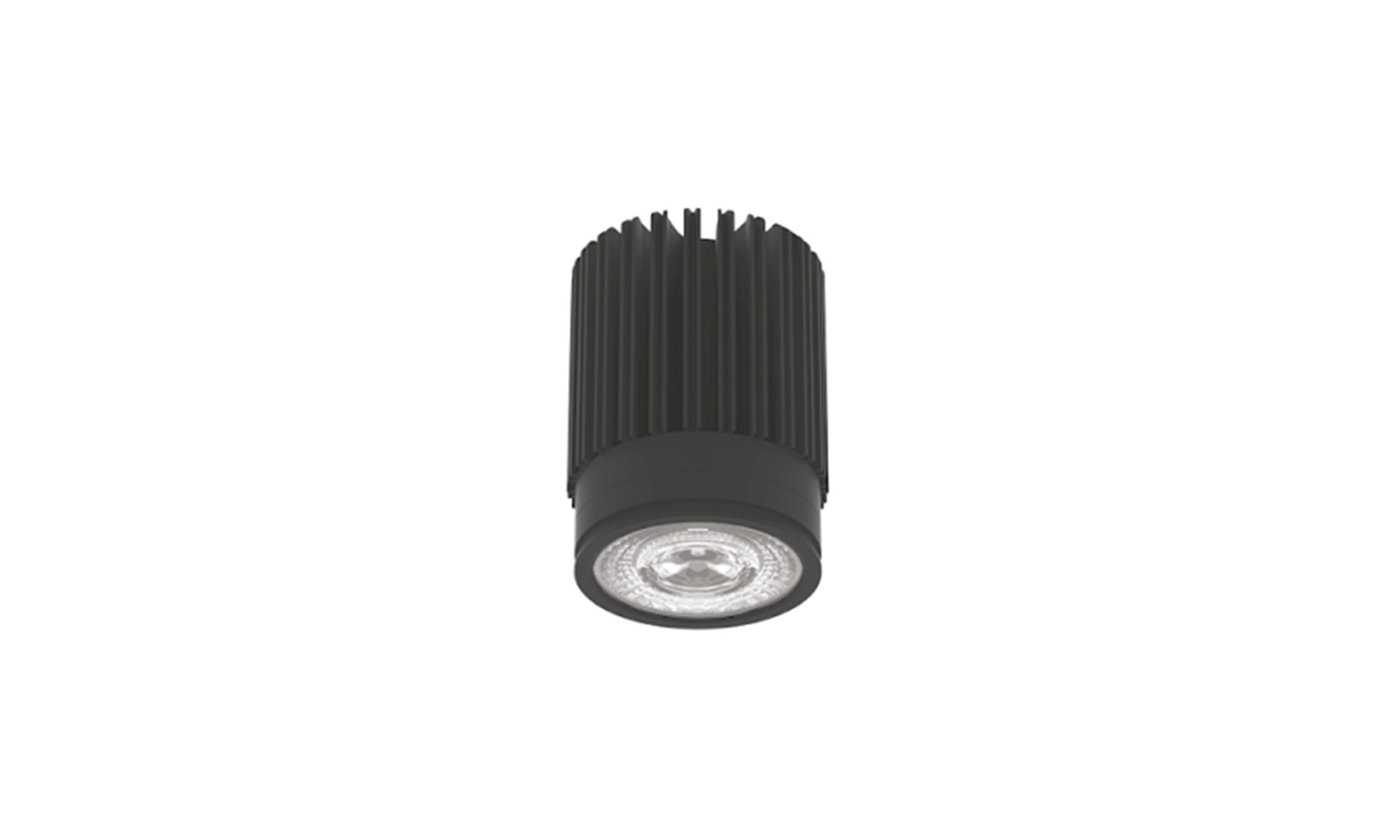

100P 48CV
Diameter (mm): Ø70
Power: 23W
Luminous Flux: 1461 – 2950 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 12°, 20°, 35°, 60°
Ingress Protection: IP54
100PLE 48CV
Diameter (mm): Ø70
Power: 23W
Luminous Flux: 1031 – 2950 lm
Colour Temperature: Single CCT
CRI: PA, PP
Beam Angle: 12°, 20°, 35°, 60°
Ingress Protection: IP54

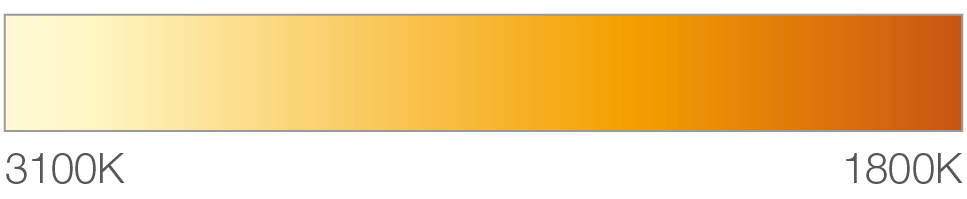

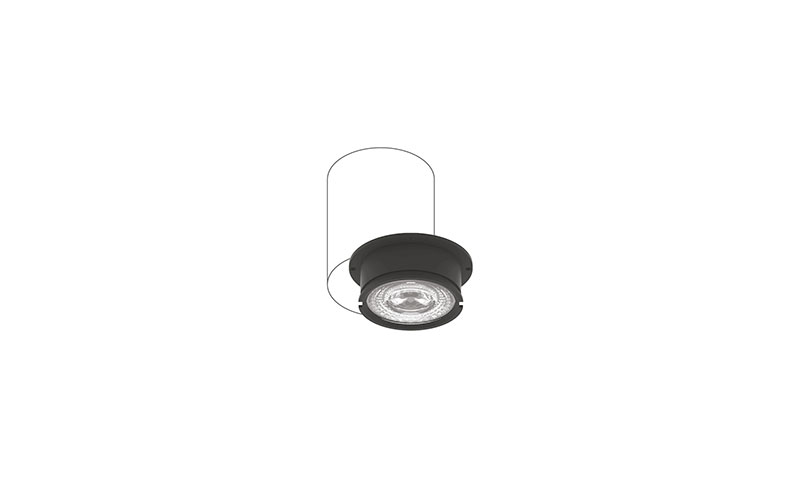

Candle-warm ComfySHIFT
Experience the soothing ambiance with ComfySHIFT, offering a soft fading on and off effect reminiscent of a burning candle. This feature delicately simulates the gentle glow of candlelight, creating a cozy atmosphere wherever it’s used.
Constant Current – CC
35P CS
Diameter (mm): Ø51
Power: 8W
Luminous Flux: 640 lm
Colour Temperature: CS
CRI: PA
Beam Angle: 10°, 20°,35°, 60°
Ingress Protection: IP54
50N CS
Diameter (mm): Ø70
Power: 7.5W
Luminous Flux: 600 lm
Colour Temperature: CS
CRI: PA
Beam Angle: 10°, 20°,35°, 60°
Ingress Protection: IP54
Cosy Like Sunset
Transforming light colour temperature in conjunction with dimming to create a relaxing and cosy environment. The darker the light dims, the warmer the light becomes, just like the sunset effect.
Constant Current – CC
20P WD
Diameter (mm): Ø35
Power: 8W
Luminous Flux: 500 – 640 lm
Colour Temperature: WD
CRI: PA
Beam Angle: 15°, 25°, 40°
Ingress Protection: IP54
20PLE WD
Diameter (mm): Ø35
Power: 8W
Luminous Flux: 640 lm
Colour Temperature: WD
CRI: PA
Beam Angle: 15°, 25°, 40°
Ingress Protection: IP54
Coin WD
Diameter (mm): Ø51
Power: 4.5W
Luminous Flux: 360 lm
Colour Temperature: WD
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
35P WD
Diameter (mm): Ø51
Power: 8W
Luminous Flux: 640 lm
Colour Temperature: WD
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54

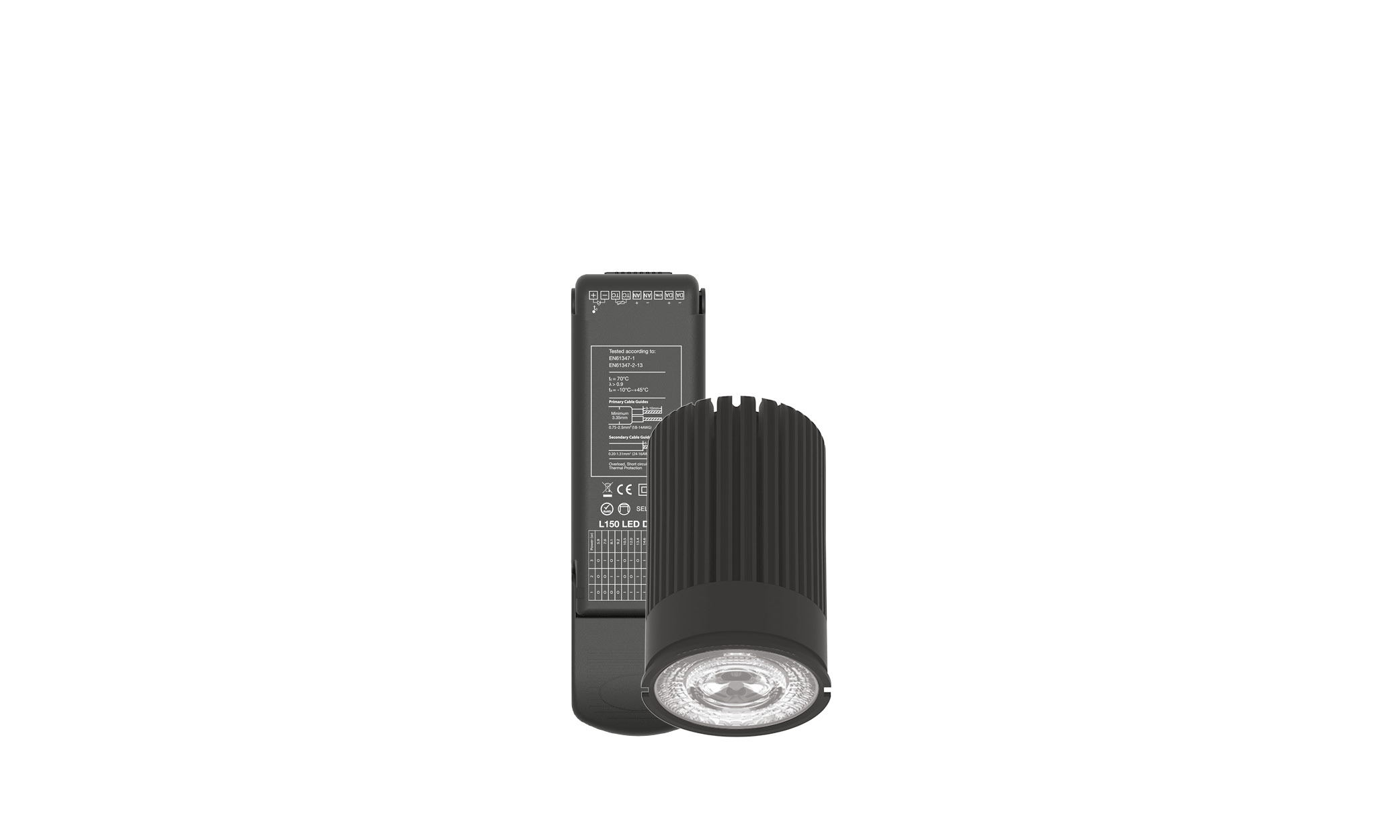

50P WD
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 960 lm
Colour Temperature: WD
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
50PLE WD
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 960 lm
Colour Temperature: WD
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54

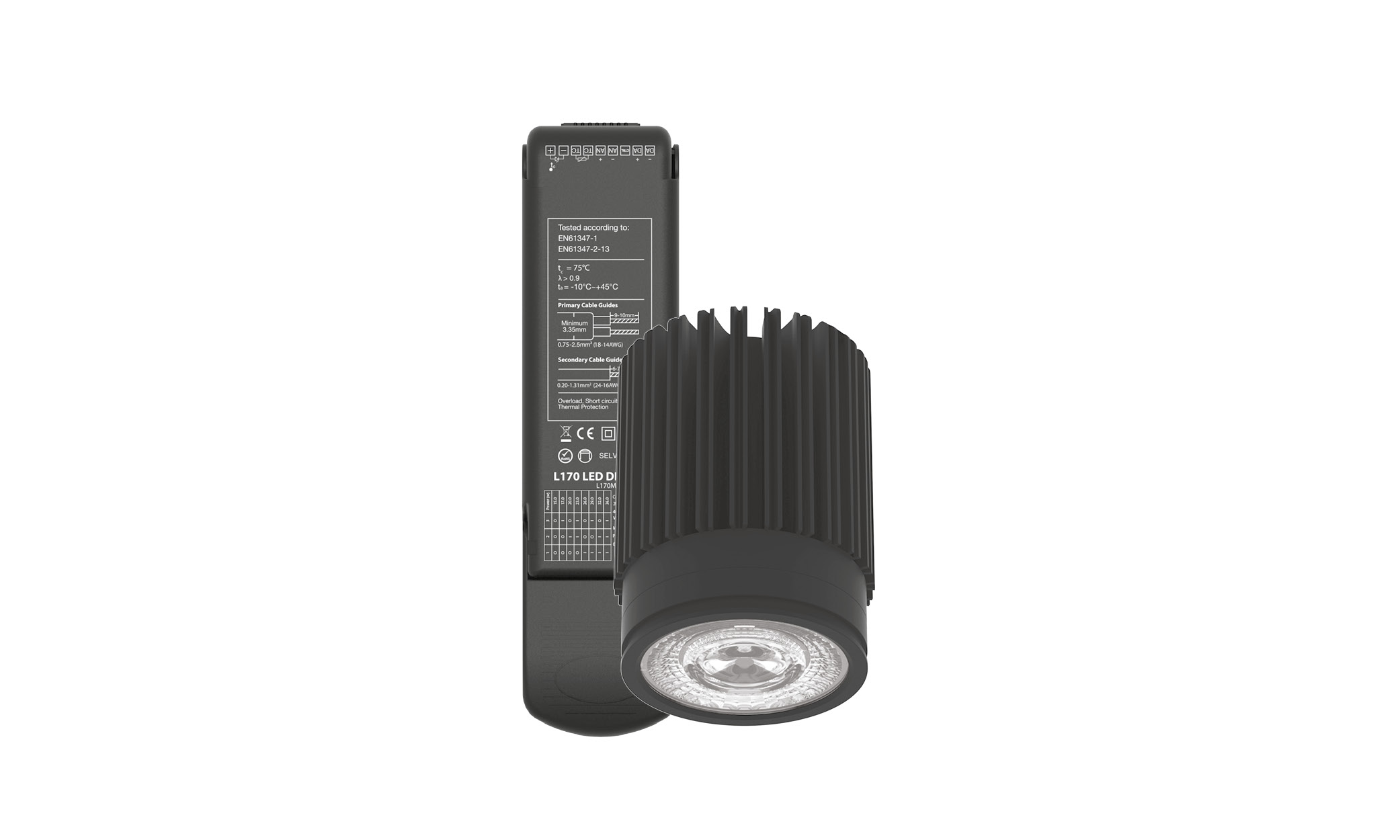

100P WD
Diameter (mm): Ø70
Power: 23W
Luminous Flux: 1840 lm
Colour Temperature: WD
CRI: PA
Beam Angle: 12°, 20°, 35°, 60°
Ingress Protection: IP54
100PLE WD
Diameter (mm): Ø70
Power: 23W
Luminous Flux: 1840 lm
Colour Temperature: WD
CRI: PA
Beam Angle: 12°, 20°, 35°, 60°
Ingress Protection: IP54

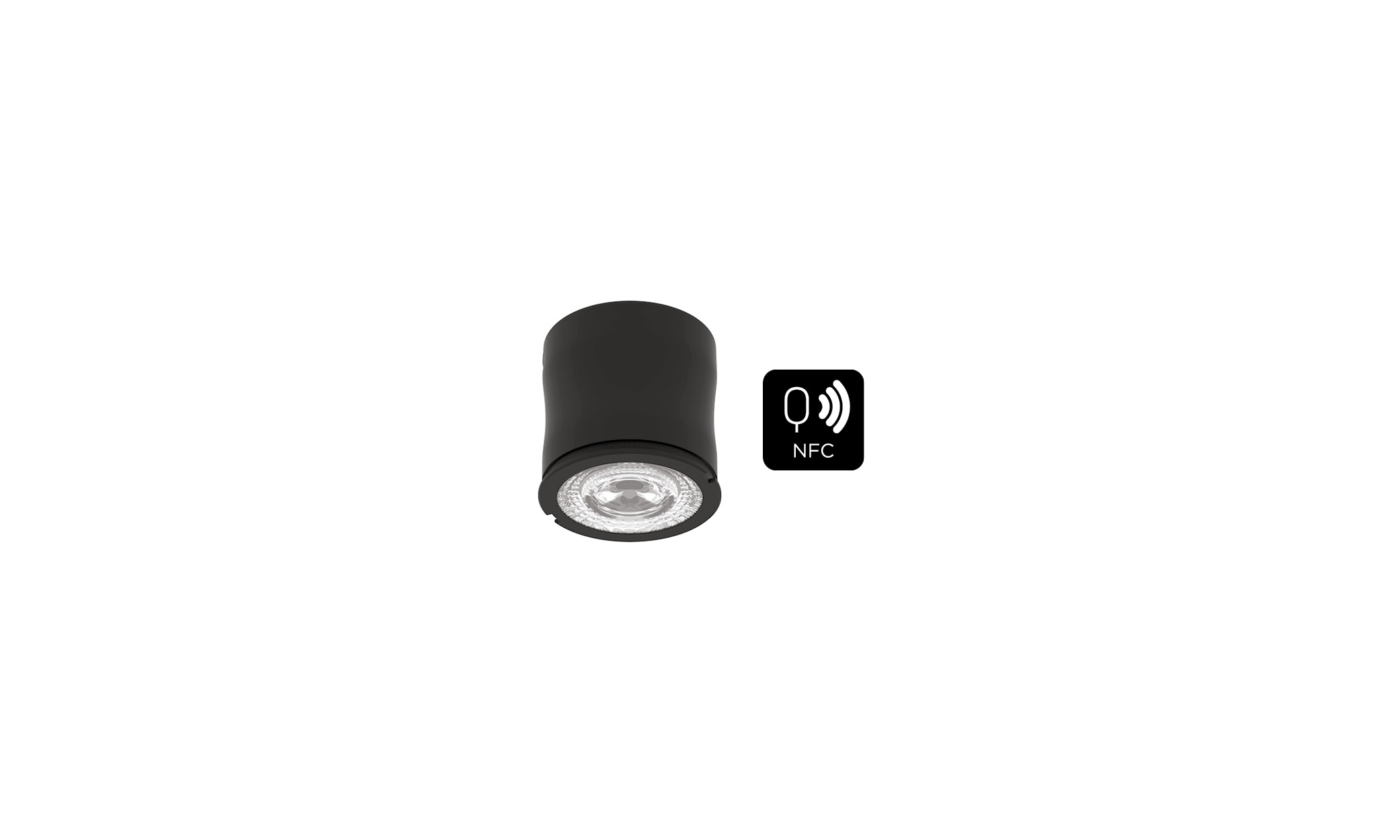

35N WD
Diameter (mm): Ø51
Power: 6.9W
Luminous Flux: 440 lm
Colour Temperature: WD
CRI: PA
Beam Angle: 60°
Ingress Protection: IP54

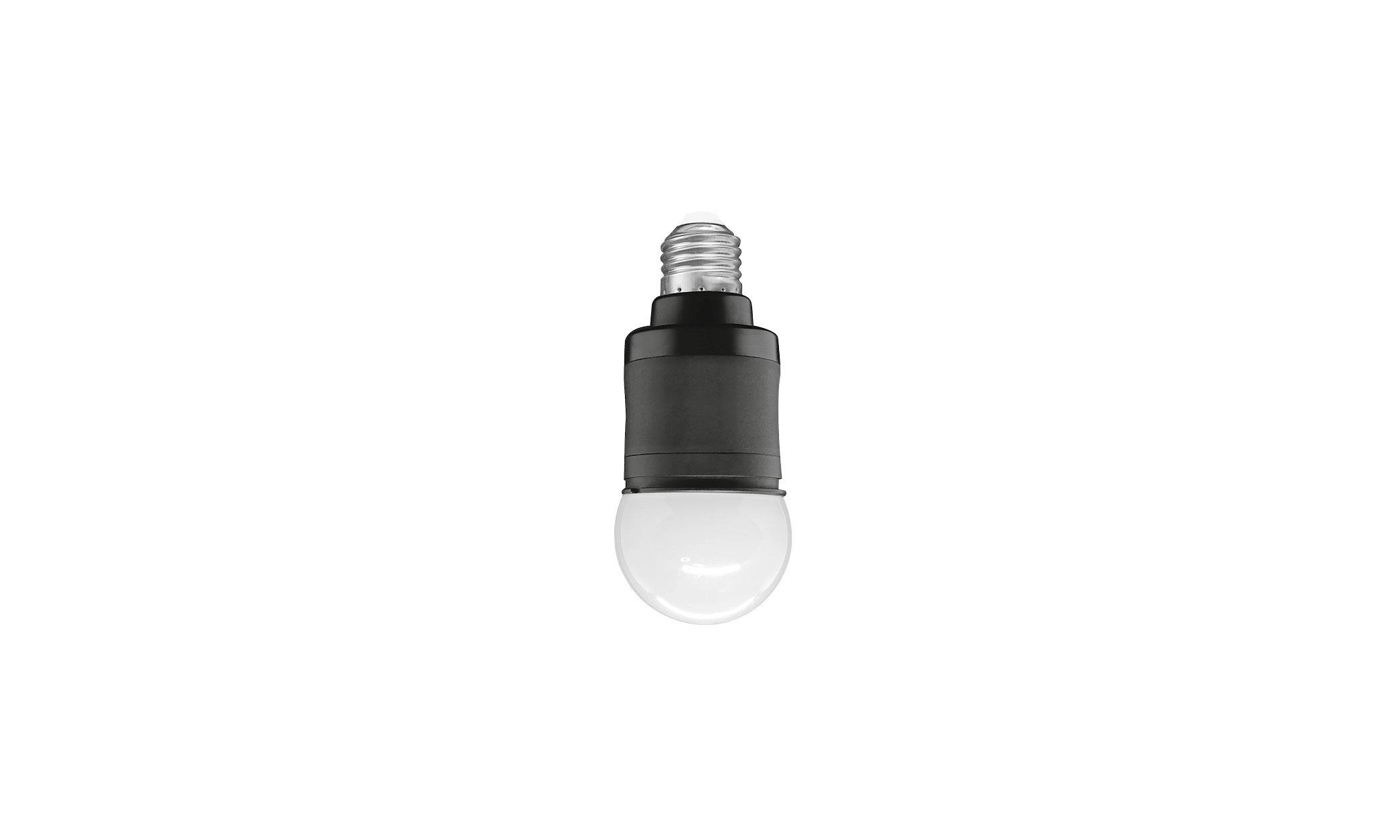

35N E27 WD
Diameter (mm): Ø55, Ø80, Ø120
Power: 5.5W
Luminous Flux: 405 – 605 lm
Colour Temperature: WD
CRI: PA, PP
Beam Angle: 180°
Ingress Protection: IP40
50N WD
Diameter (mm): Ø51
Power: 9.4W
Luminous Flux: 600 lm
Colour Temperature: WD
CRI: PA
Beam Angle: 60°
Ingress Protection: IP54
Constant Current – CC
MS Module 3
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 449 – 1200 lm
Colour Temperature: WD
CRI: PA, PP
Beam Angle: 15°, 25°,40° 50°
Ingress Protection: IP54

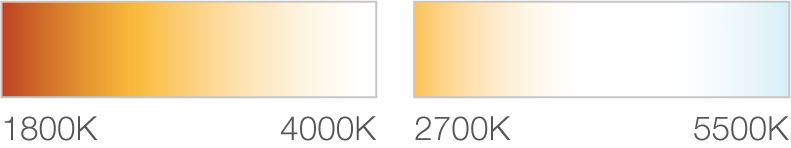

Dynamic Light on Demand
The tuneable white of ELR’s latest human-centric illumination module emits an elegant circadian range with the calming gloom that candles conjure in crisp daylight for clarity and focus. Enrich your atmosphere with a particularly tailored illumination that merges comfort and productivity while gaining the health benefits associated with less exposure to blue light.
Constant Current – CC
20P TW
Diameter (mm): Ø35
Power: 8W
Luminous Flux: 615 – 735 lm
Colour Temperature: TW
CRI: PA
Beam Angle: 15°, 25°, 40°
Ingress Protection: IP54
20PLE TW
Diameter (mm): Ø35
Power: 8W
Luminous Flux: 615 – 735 lm
Colour Temperature: TW
CRI: PA
Beam Angle: 15°, 25°, 40°
Ingress Protection: IP54
Coin TW
Diameter (mm): Ø51
Power: 4.5W
Luminous Flux: 450 lm
Colour Temperature: TW
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
35P TW
Diameter (mm): Ø51
Power: 8W
Luminous Flux: 810 lm
Colour Temperature: TW
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
50P TW
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 1190 lm
Colour Temperature: TW
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54

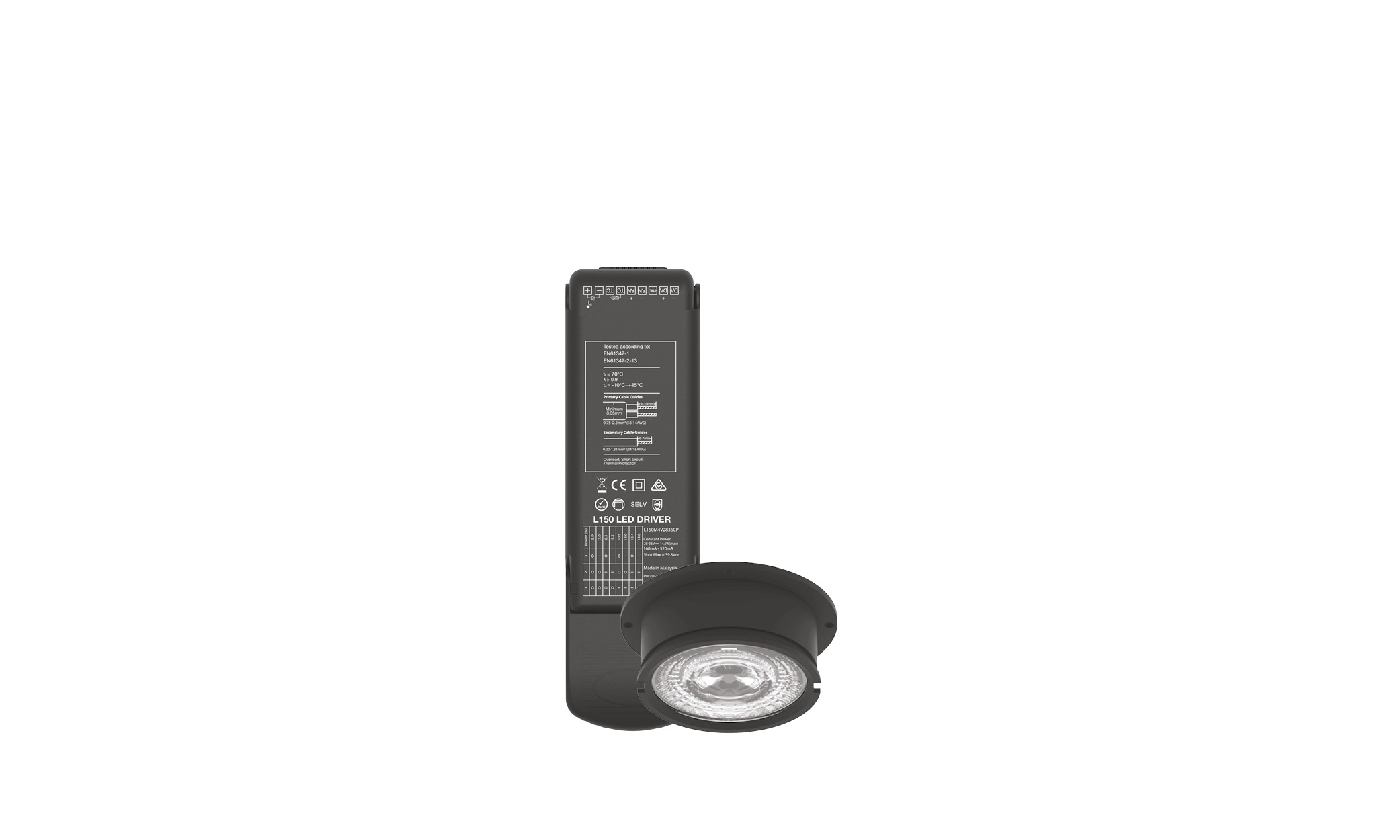

50PLE TW
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 1190 lm
Colour Temperature: TW
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
100P TW
Diameter (mm): Ø70
Power: 23W
Luminous Flux: 2290 lm
Colour Temperature: TW
CRI: PA
Beam Angle: 12°, 20°, 35°, 60°
Ingress Protection: IP54

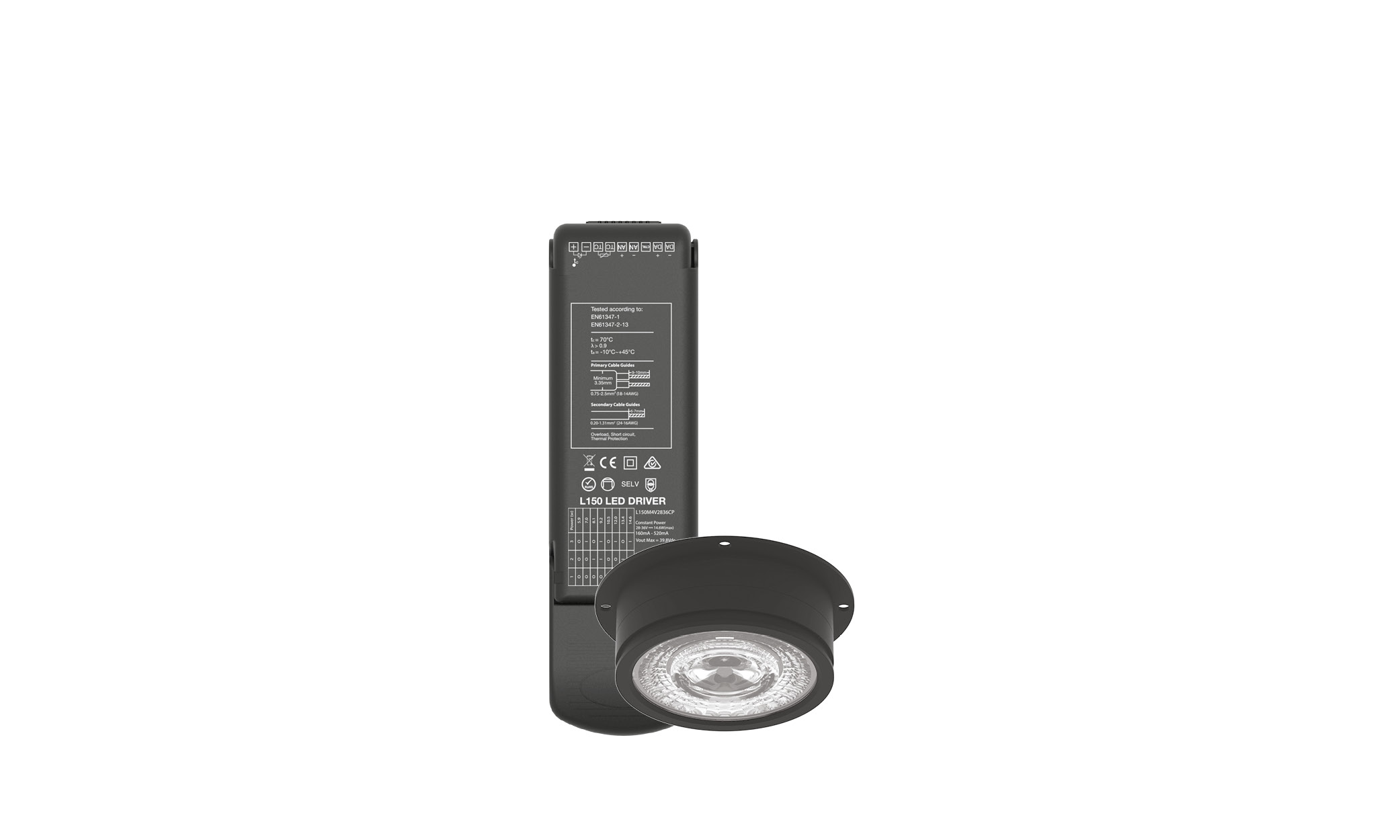

100PLE TW
Diameter (mm): Ø70
Power: 23W
Luminous Flux: 2290 lm
Colour Temperature: TW
CRI: PA
Beam Angle: 12°, 20°, 35°, 60°
Ingress Protection: IP54

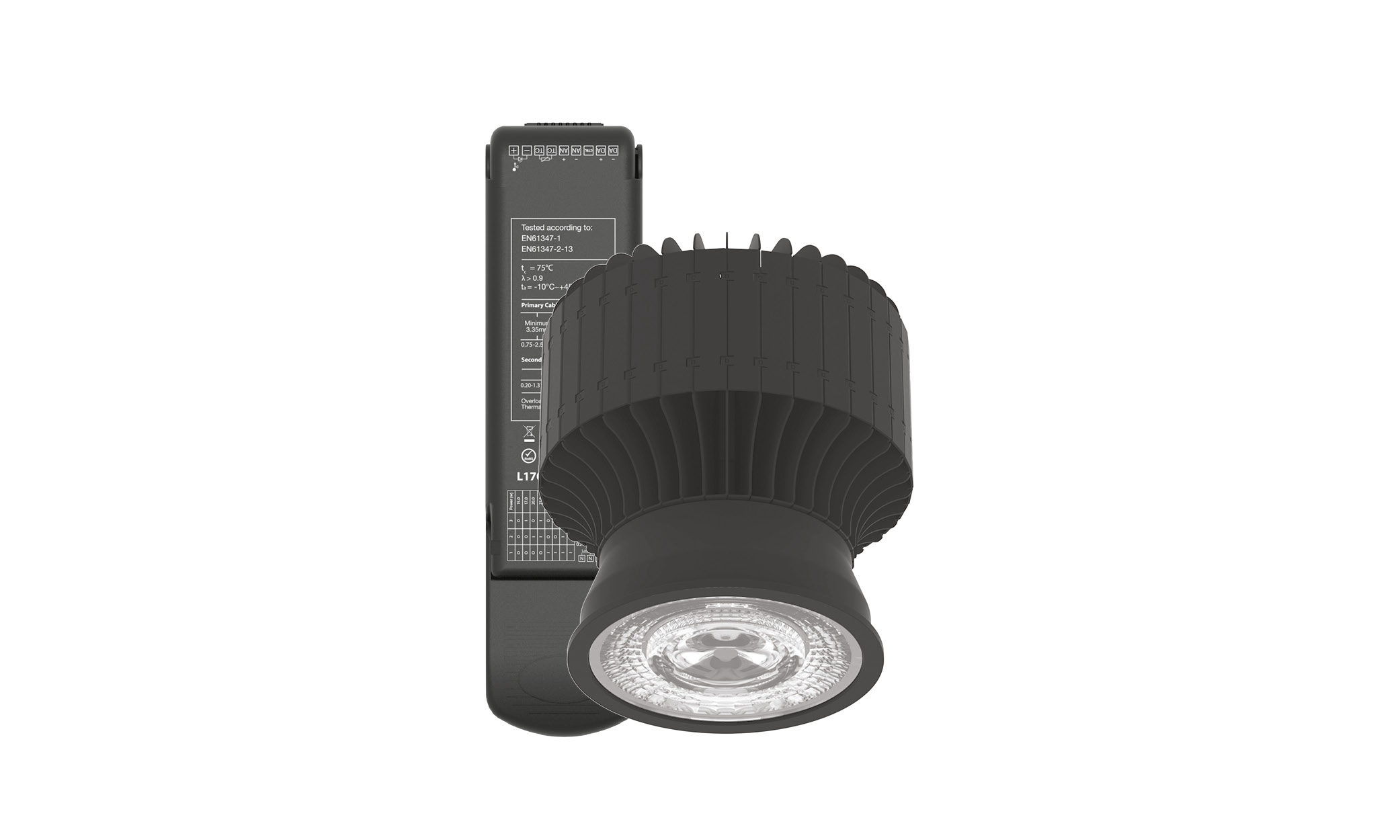

300P TW
Diameter (mm): Ø105
Power: 36W
Luminous Flux: 3315 lm
Colour Temperature: TW
CRI: PA
Beam Angle: 15°, 35°, 60°
Ingress Protection: IP54
50N TW
Diameter (mm): Ø51
Power: 9.4W
Luminous Flux: 785 lm
Colour Temperature: TW
CRI: PA
Beam Angle: 60°
Ingress Protection: IP54
Constant Current – CC
MS Module 3
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 449 – 1200 lm
Colour Temperature: TW
CRI: PA, PP
Beam Angle: 15°, 25°,40° 50°
Ingress Protection: IP54

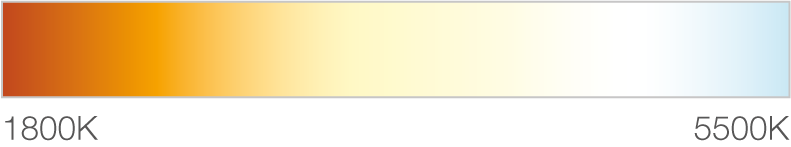

Create the Perfect Ambience
flexiK LED modules allows selection of any desired light colour temperature ranging from very warm white of 1800K up to very cool white of 5500K by an increment of 100K.
Constant Current – CC
20P FK
Diameter (mm): Ø35
Power: 8W
Luminous Flux: 615 – 735 lm
Colour Temperature: FK
CRI: PA
Beam Angle: 15°, 25°, 40°
Ingress Protection: IP54
20PLE FK
Diameter (mm): Ø35
Power: 8W
Luminous Flux: 615 – 735 lm
Colour Temperature: FK
CRI: PA
Beam Angle: 15°, 25°, 40°
Ingress Protection: IP54
Coin FK
Diameter (mm): Ø51
Power: 4.5W
Luminous Flux: 450 lm
Colour Temperature: FK
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
35P FK
Diameter (mm): Ø51
Power: 8W
Luminous Flux: 810 lm
Colour Temperature: FK
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
50P FK
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 1190 lm
Colour Temperature: FK
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
50PLE FK
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 1190 lm
Colour Temperature: FK
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
100P FK
Diameter (mm): Ø70
Power: 23W
Luminous Flux: 2290 lm
Colour Temperature: FK
CRI: PA
Beam Angle: 12°, 20°, 35°, 60°
Ingress Protection: IP54
100PLE FK
Diameter (mm): Ø70
Power: 23W
Luminous Flux: 2290 lm
Colour Temperature: FK
CRI: PA
Beam Angle: 12°, 20°, 35°, 60°
Ingress Protection: IP54
300P FK
Diameter (mm): Ø105
Power: 36W
Luminous Flux: 3315 lm
Colour Temperature: FK
CRI: PA
Beam Angle: 15°, 35°, 60°
Ingress Protection: IP54
50N FK
Diameter (mm): Ø51
Power: 9.4W
Luminous Flux: 785 lm
Colour Temperature: FK
CRI: PA
Beam Angle: 60°
Ingress Protection: IP54
Fun Colour Lighting
Combination of vibrant red, green, and blue lights, with high quality cool white light or highly efficient Phosphor Converted Amber light to create unlimited imaginary ambience.
Constant Current – CC

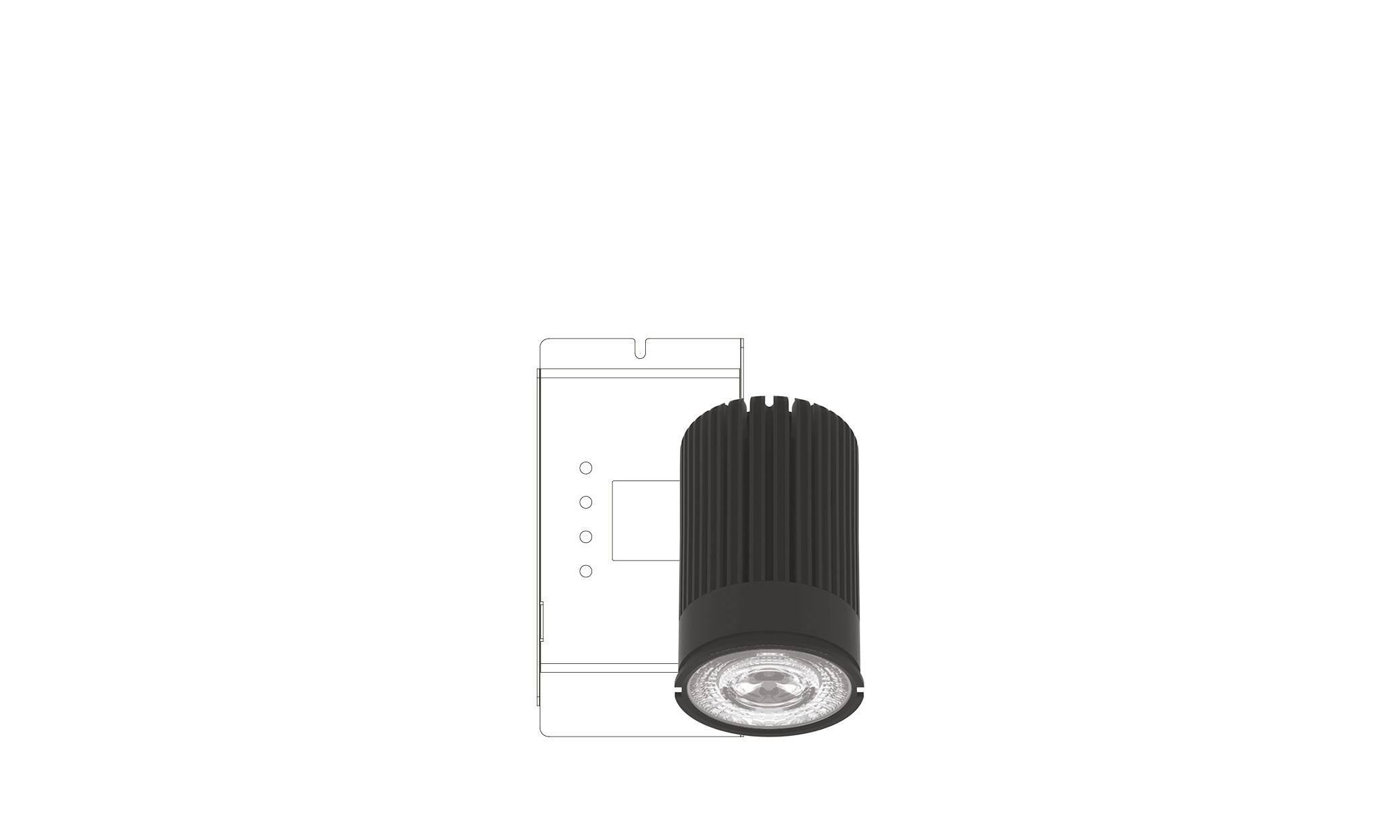

50P RGBW
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 605 lm
Colour Temperature: RGBW/RGBA
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54
50PLE RGBW
Diameter (mm): Ø51
Power: 12W
Luminous Flux: 605 lm
Colour Temperature: RGBW/RGBA
CRI: PA
Beam Angle: 10°, 20°, 35°, 60°
Ingress Protection: IP54

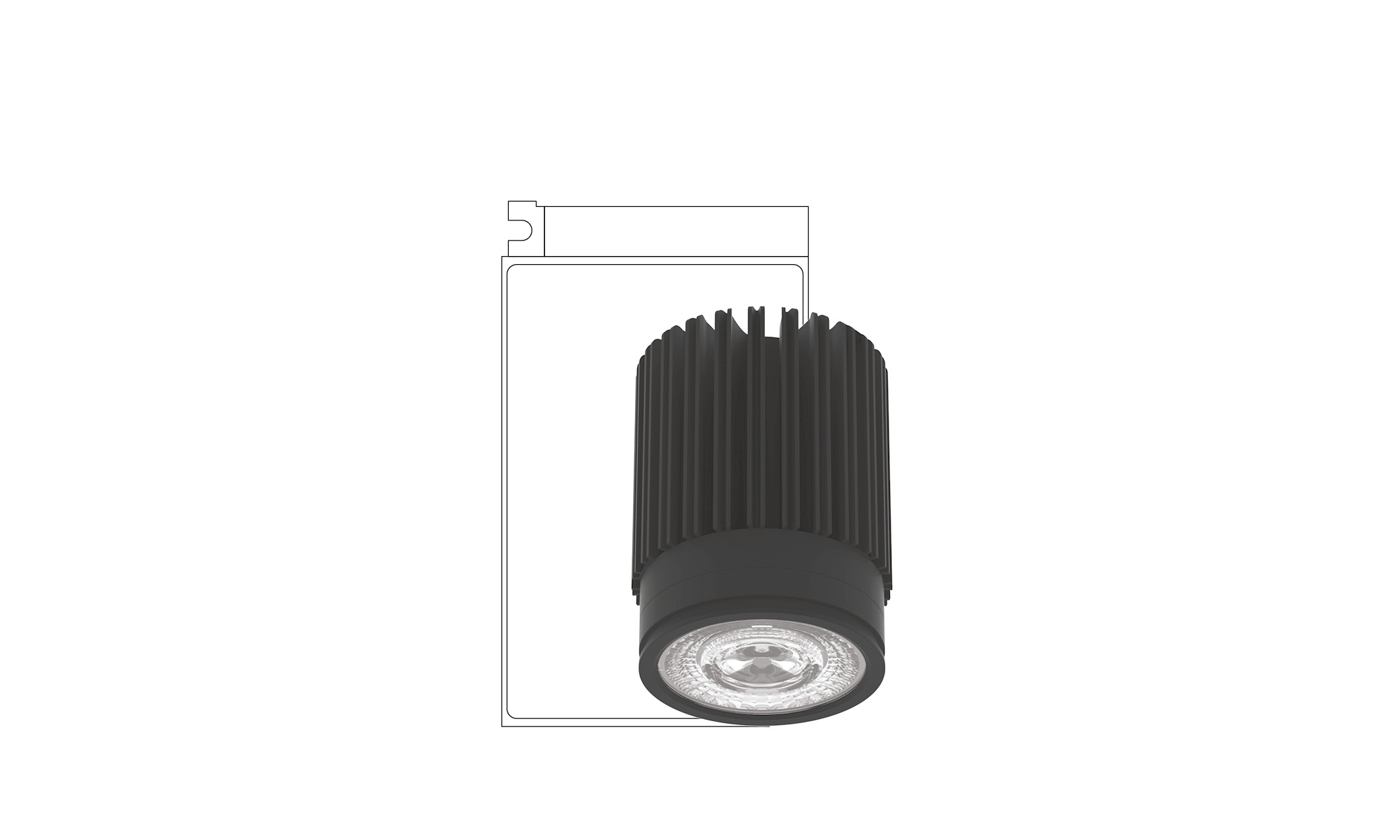

100P RGBW
Diameter (mm): Ø70
Power: 23W
Luminous Flux: 1015 lm
Colour Temperature: RGBW/RGBA
CRI: PA
Beam Angle: 12°, 20°, 35°, 60°
Ingress Protection: IP54

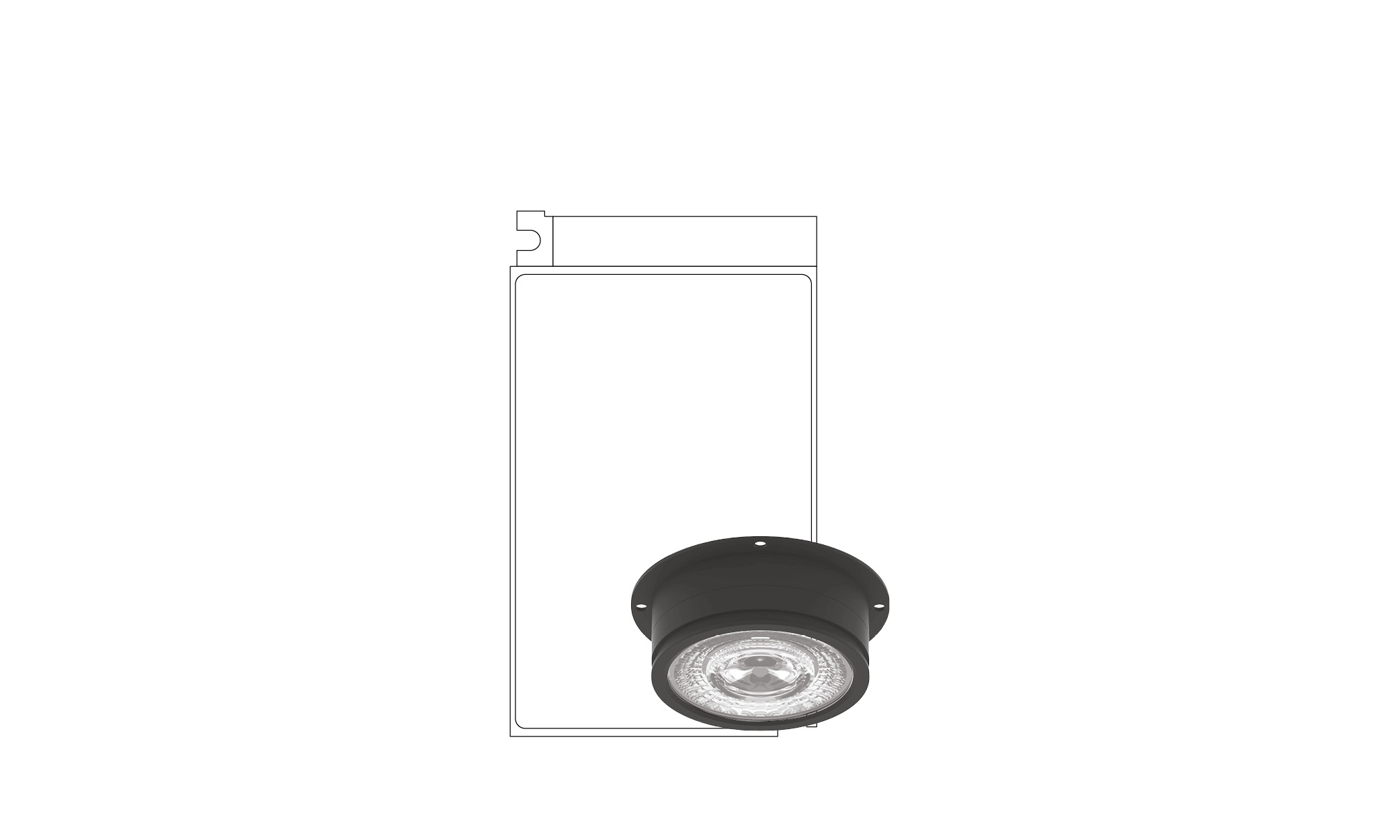

100PLE RGBW
Diameter (mm): Ø70
Power: 23W
Luminous Flux: 1015 lm
Colour Temperature: RGBW/RGBA
CRI: PA
Beam Angle: 12°, 20°, 35°, 60°
Ingress Protection: IP54

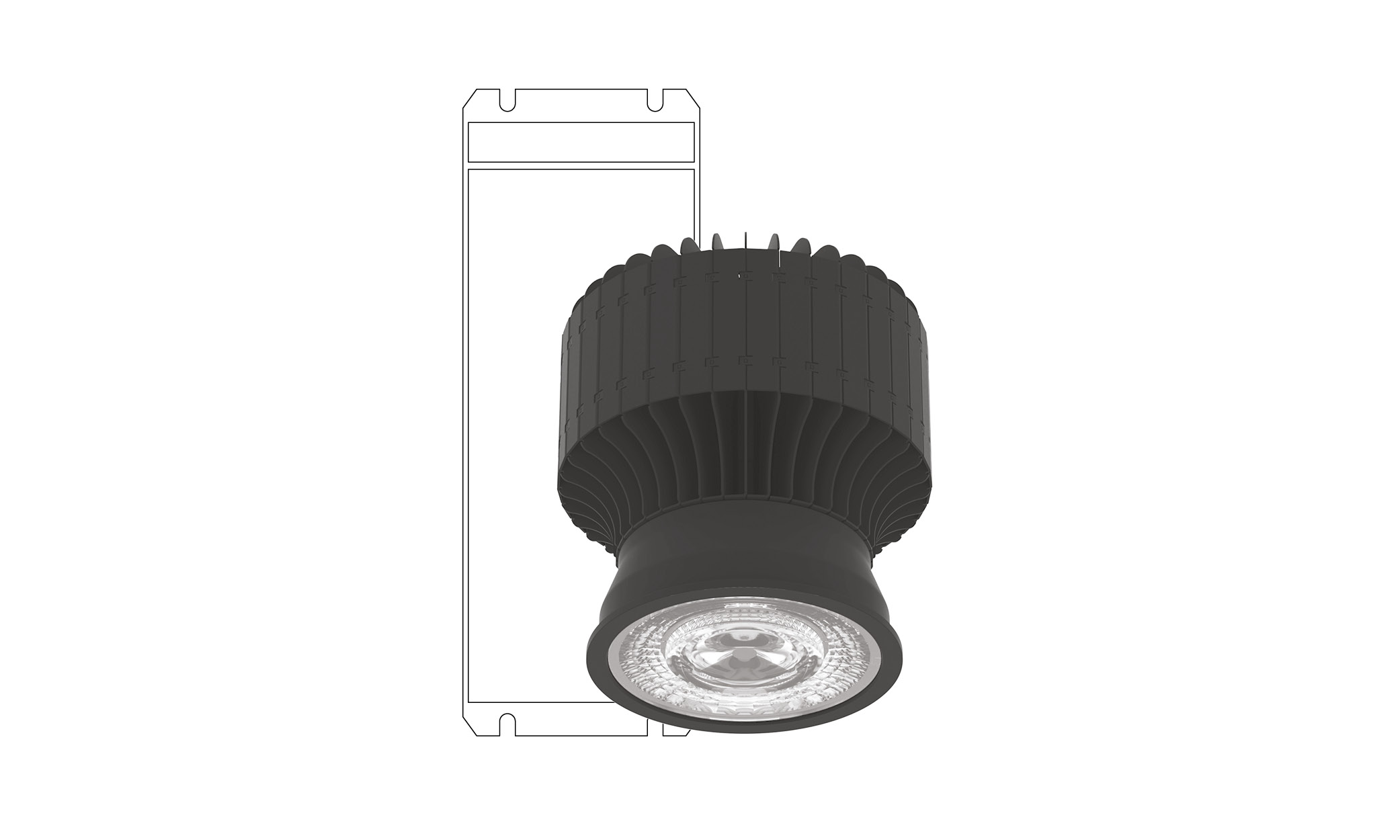

700P RGBW/RGBA
Diameter (mm): Ø105
Power: 66W
Luminous Flux: 2930 lm / 2415 lm
Colour Temperature: RGBW/RGBA
CRI: PA
Beam Angle: 15°, 35°, 60°
Ingress Protection: IP40
Light for Greenery
Horti LED modules with suitable light spectrum for photosynthesis to support the growth of plants, especially for architectural vertical green walls to thrive and be well maintained.
Constant Current – CC
50N HORTI
Diameter (mm): Ø51
Power: 7.5W
Luminous Flux: 740 lm
Colour Temperature: Single CCT
CRI: PP
Beam Angle: 60°
Ingress Protection: IP54
Accessories

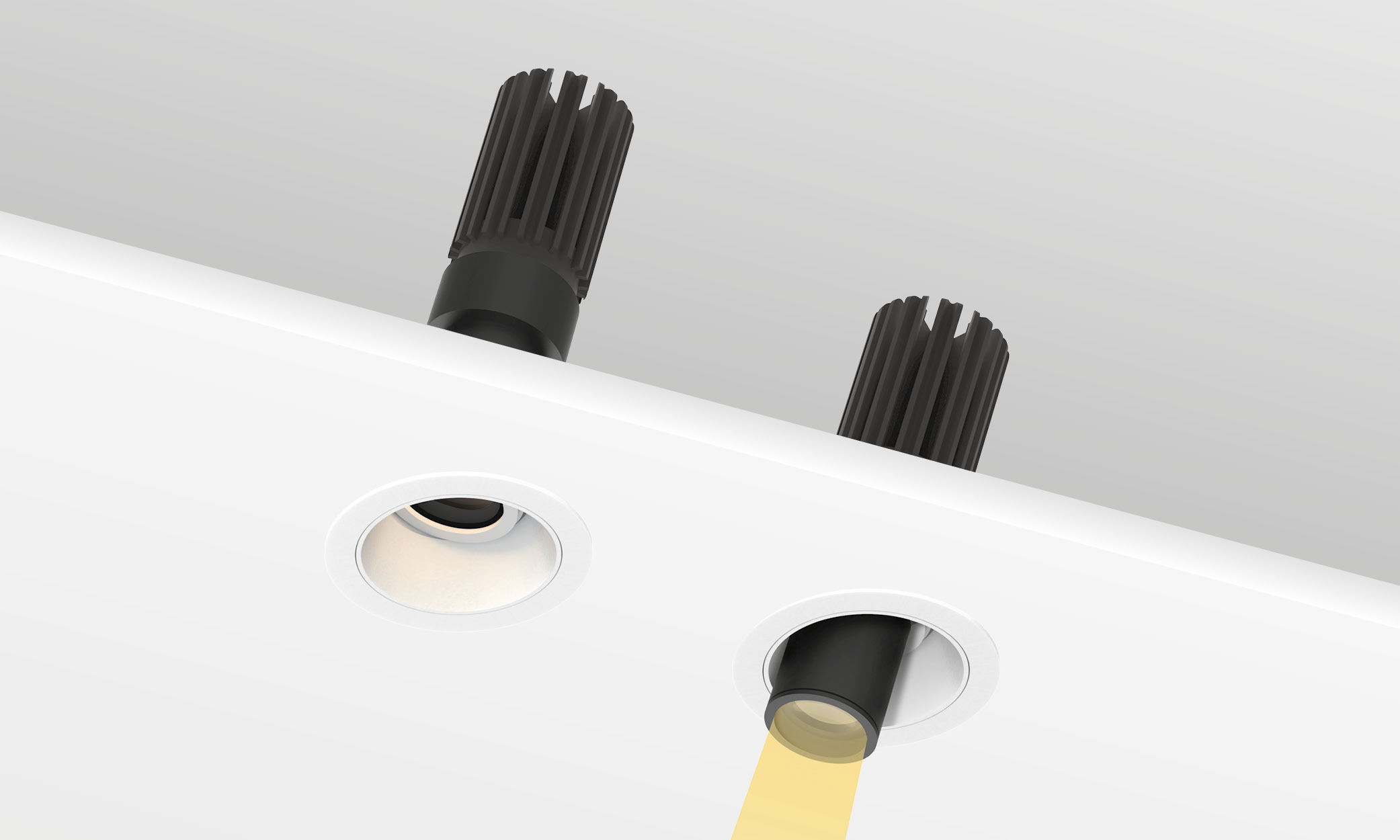

NSA
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2400K / 2700K / 3000K / 3500K / 4000K / 5000K
