LINEAR LED MODULE
Single CCT
FM5-168
Strip Width: 5mm
Power: Up to 15W/m
Luminous Flux: 330 – 1650lm/m
Colour Temperature: Single CCT
LED Pitch: 6mm
LEDs: 168 LEDs/m
Pixel Pitch: –
Ingress Protection: IP20
FM5-168
Strip Width: 5mm
Power: Up to 15W/m
Luminous Flux: 330 – 1650lm/m
Colour Temperature: Single CCT
LED Pitch: 6mm
LEDs: 168 LEDs/m
Pixel Pitch: –
Ingress Protection: IP65
FM8-168
Strip Width: 8mm
Power: Up to 15W/m
Luminous Flux: 330 – 1650lm/m
Colour Temperature: Single CCT
LED Pitch: 5.9mm
LEDs: 168 LEDs/m
Pixel Pitch: –
Ingress Protection: IP20
FM8-168
Strip Width: 8mm
Power: Up to 15W/m
Luminous Flux: 330 – 1650lm/m
Colour Temperature: Single CCT
LED Pitch: 5.9mm
LEDs: 168 LEDs/m
Pixel Pitch: –
Ingress Protection: IP65
FM10E-120
Strip Width: 10mm
Power: Up to 19.2W/m
Luminous Flux: 368 – 1840lm/m
Colour Temperature: Single CCT
LED Pitch: 8.3mm
LEDs: 120 LEDs/m
Pixel Pitch: –
Ingress Protection: IP20

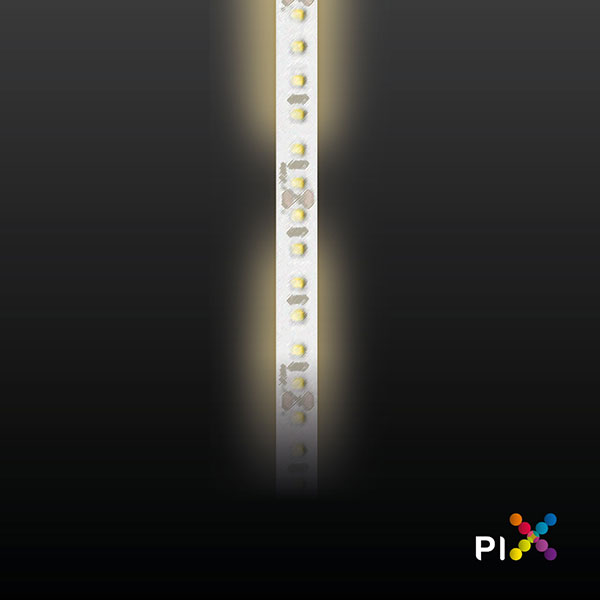

FM10-20PiX
Strip Width: 10mm
Power: Up to 15W/m
Luminous Flux: 1500lm/m
Colour Temperature: Single CCT
LED Pitch: 8.33mm
LEDs: 120 LEDs/m
Pixel Pitch: 20 Pixels/m
Ingress Protection: IP20
FM10E-120
Strip Width: 10mm
Power: Up to 19.2W/m
Luminous Flux: 368 – 1840lm/m
Colour Temperature: Single CCT
LED Pitch: 8.3mm
LEDs: 120 LEDs/m
Pixel Pitch: –
Ingress Protection: IP65

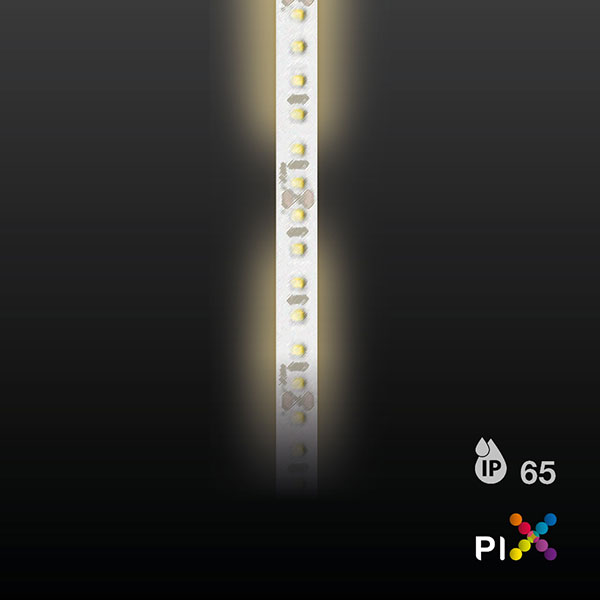

FM10-20PiX
Strip Width: 10mm
Power: Up to 15W/m
Luminous Flux: 1500lm/m
Colour Temperature: Single CCT
LED Pitch: 8.33mm
LEDs: 120 LEDs/m
Pixel Pitch: 20 Pixels/m
Ingress Protection: IP65

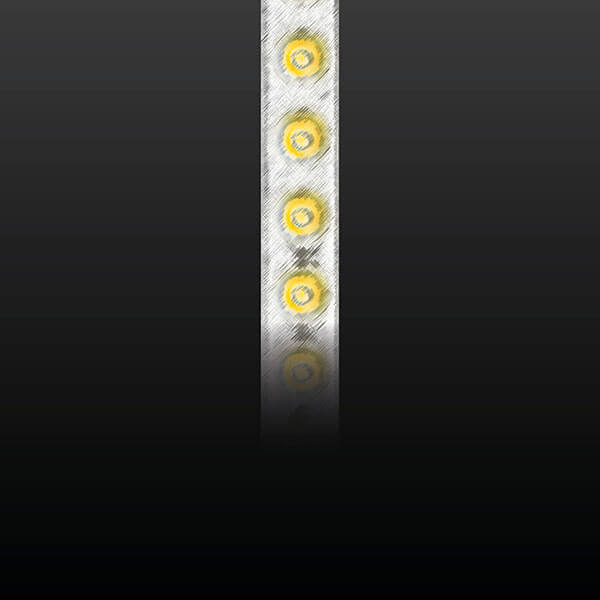

FM23G-42
Strip Width: 23mm
Power: Up to 19.2W/m
Luminous Flux: 894 – 1788lm/m
Colour Temperature: Single CCT
LED Pitch: 23.8mm
LEDs: 42 LEDs/m
Pixel Pitch: –
Ingress Protection: IP67
FM23WW-30
Strip Width: 23mm
Power: Up to 19.2W/m
Luminous Flux: 678 – 1350lm/m
Colour Temperature: Single CCT
LED Pitch: 33.3mm
LEDs: 30 LEDs/m
Pixel Pitch: –
Ingress Protection: IP67
Warm Dim

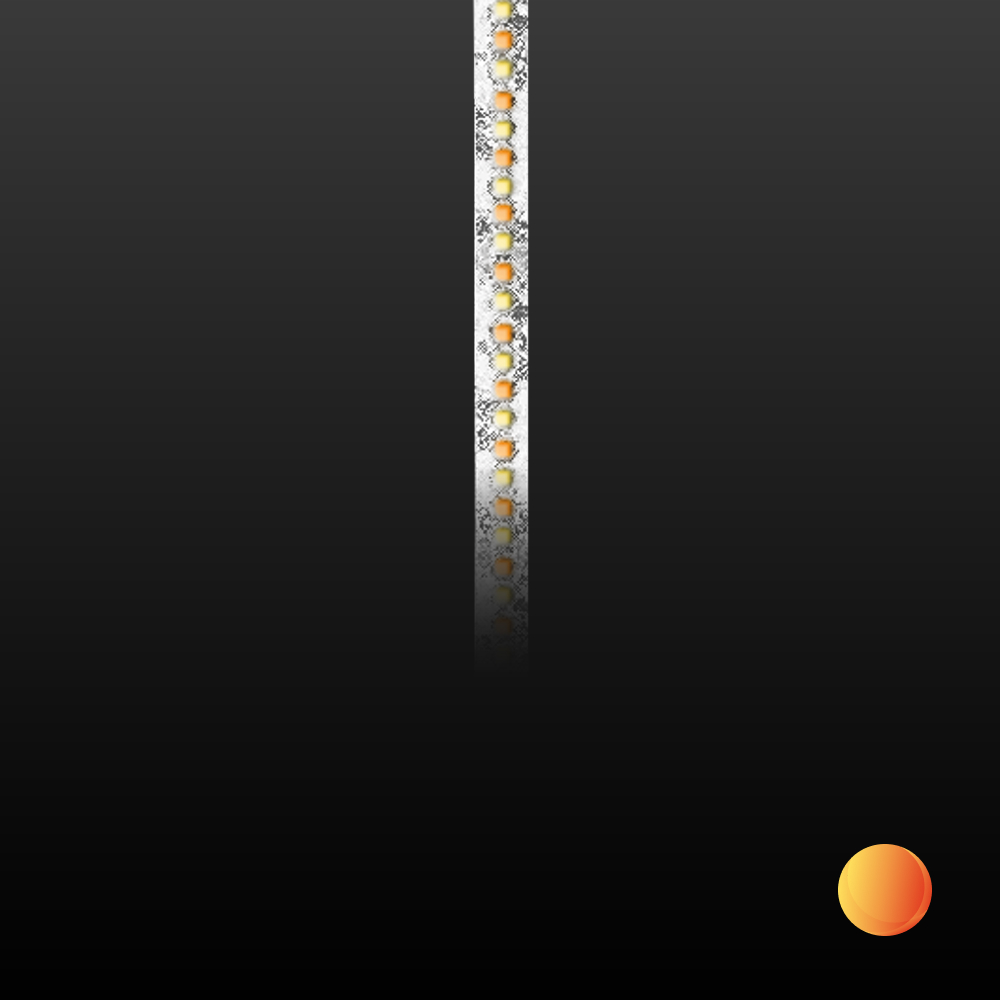

FM10-200 WD
Strip Width: 10mm
Power: Up to 15W/m
Luminous Flux: 330 – 1650lm/m
Colour Temperature: WD
LED Pitch: 10mm
LEDs: 200 LEDs/m
Pixel Pitch: –
Ingress Protection: IP20

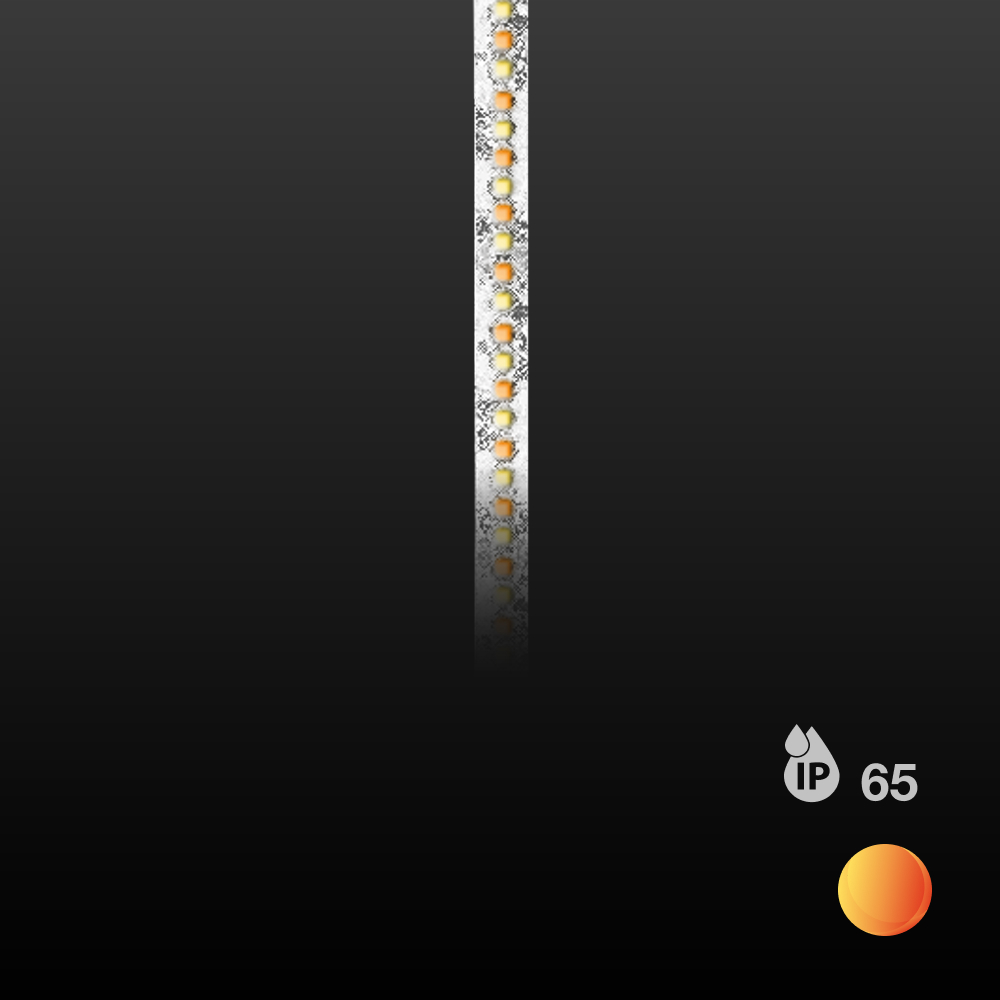

FM10-200 WD
Strip Width: 10mm
Power: Up to 15W/m
Luminous Flux: 330 – 1650lm/m
Colour Temperature: WD
LED Pitch: 10mm
LEDs: 200 LEDs/m
Pixel Pitch: –
Ingress Protection: IP65
tuneWHITE

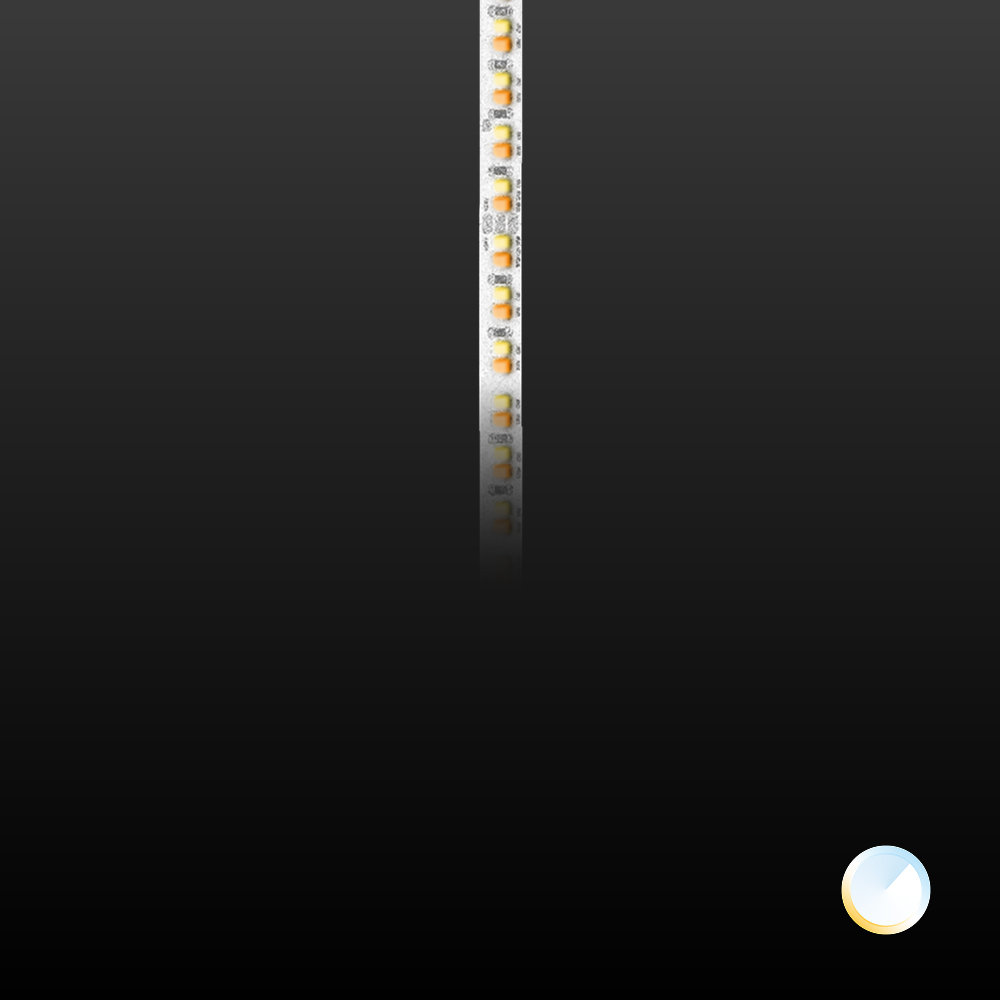

FM8-192 TW
Strip Width: 8mm
Power: Up to 15W/m per Channel
Luminous Flux: 545 – 1650lm/m
Colour Temperature: TW
LED Pitch: 10.4mm
LEDs: 192 LEDs/m
Pixel Pitch: –
Ingress Protection: IP20

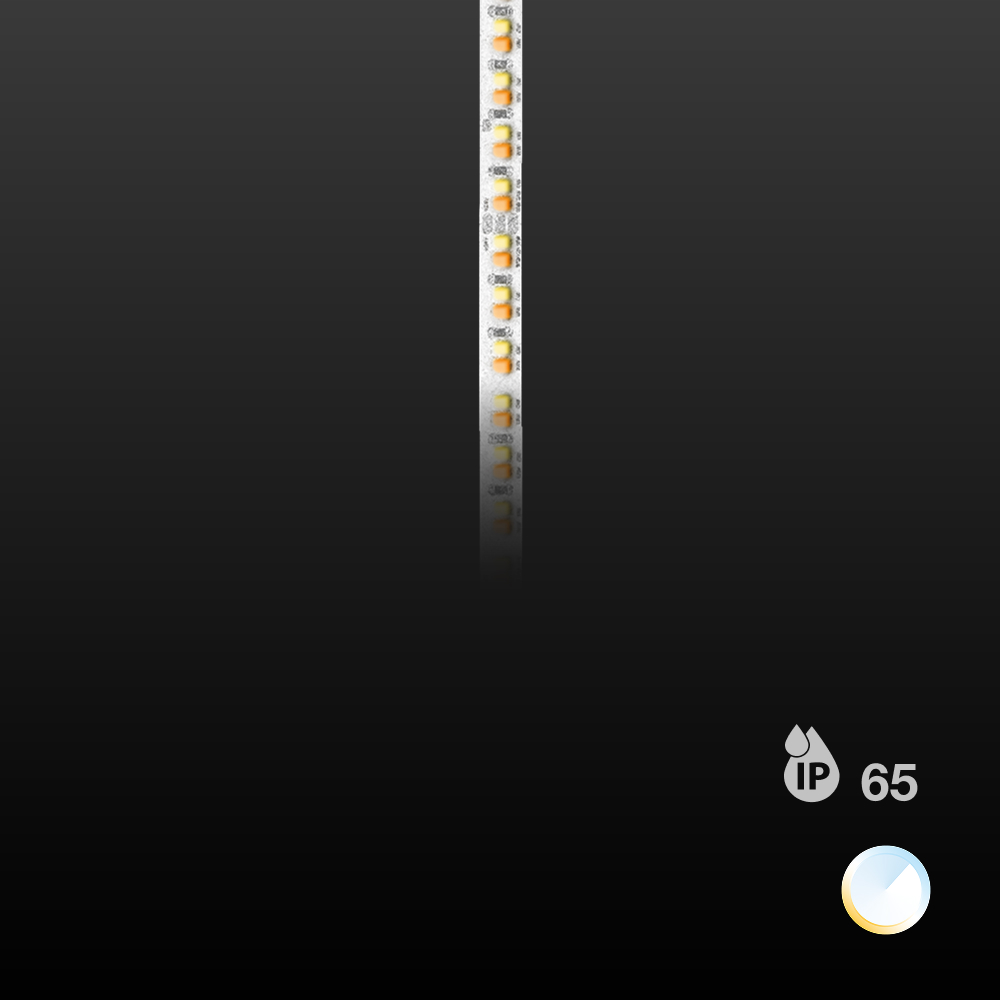

FM8-192 TW
Strip Width: 8mm
Power: Up to 15W/m per Channel
Luminous Flux: 545 – 1650lm/m
Colour Temperature: TW
LED Pitch: 10.4mm
LEDs: 192 LEDs/m
Pixel Pitch: –
Ingress Protection: IP65
RGBW
FM12-96 RGBW
Strip Width: 12mm
Power: Up to 15W/m
Luminous Flux: 632 lm/m per channel
Colour Temperature: RGBW
LED Pitch: 14.3mm
LEDs: 96 LEDs/m
Pixel Pitch: –
Ingress Protection: IP20
FM12-12PiX RGBW
Strip Width: 12mm
Power: Up to 15W/m
Luminous Flux: 587 lm/m per channel
Colour Temperature: RGBW
LED Pitch: 11.9mm
LEDs: 84 LEDs/m
Pixel Pitch: 12 Pixels/m
Ingress Protection: IP20

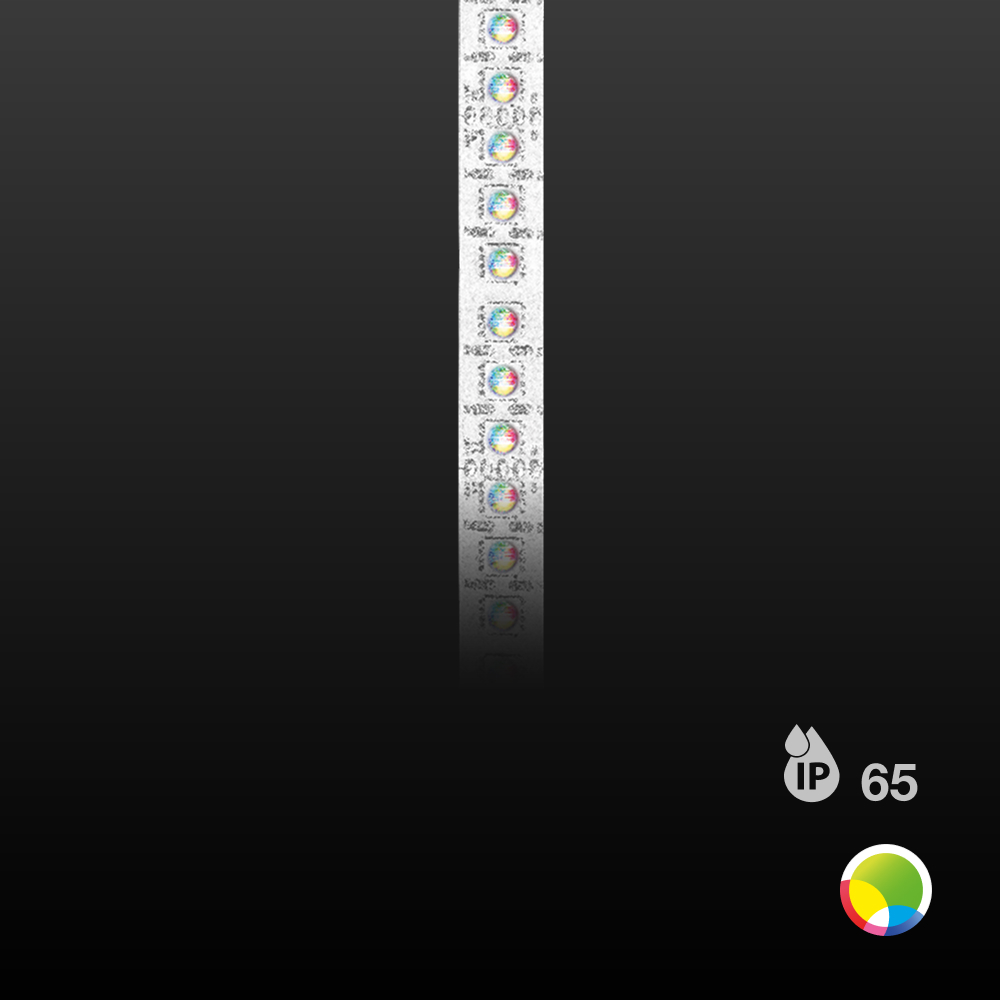

FM12-96 RGBW
Strip Width: 12mm
Power: Up to 15W/m
Luminous Flux: 632 lm/m per channel
Colour Temperature: RGBW
LED Pitch: 14.3mm
LEDs: 96 LEDs/m
Pixel Pitch: –
Ingress Protection: IP65

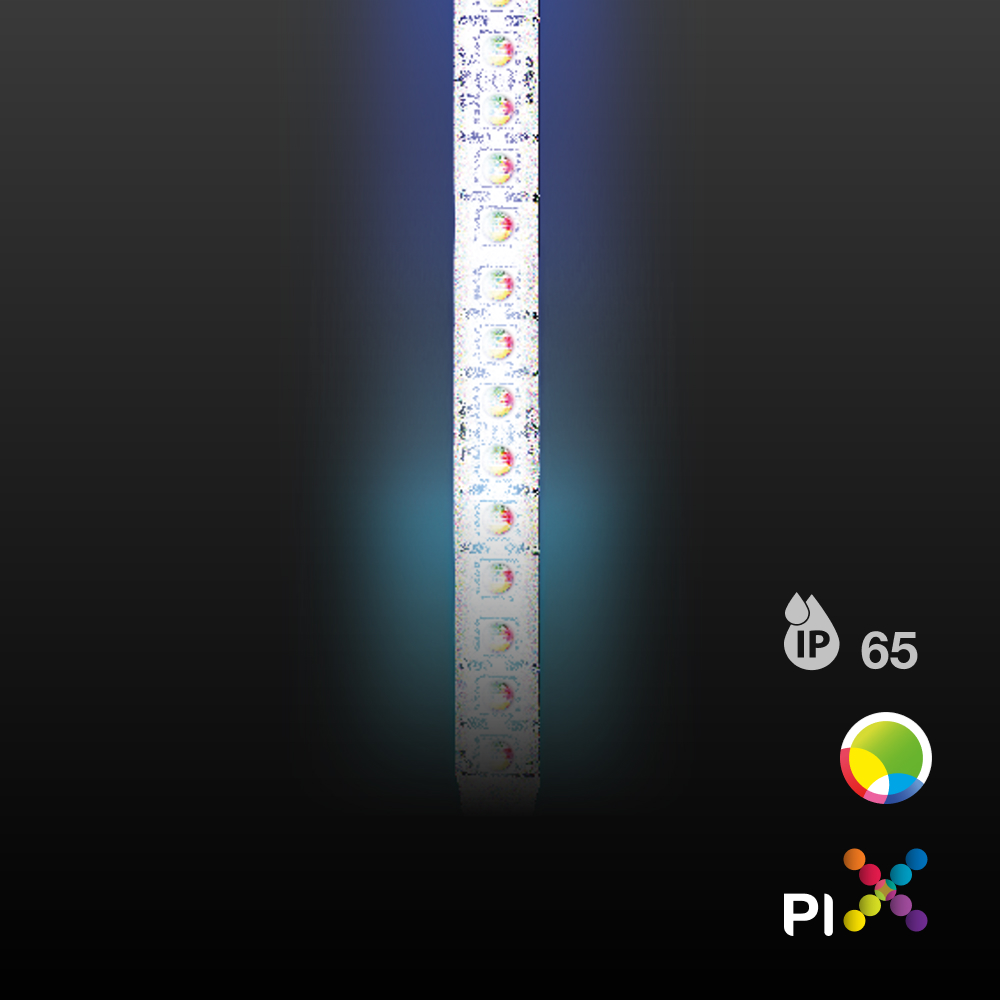

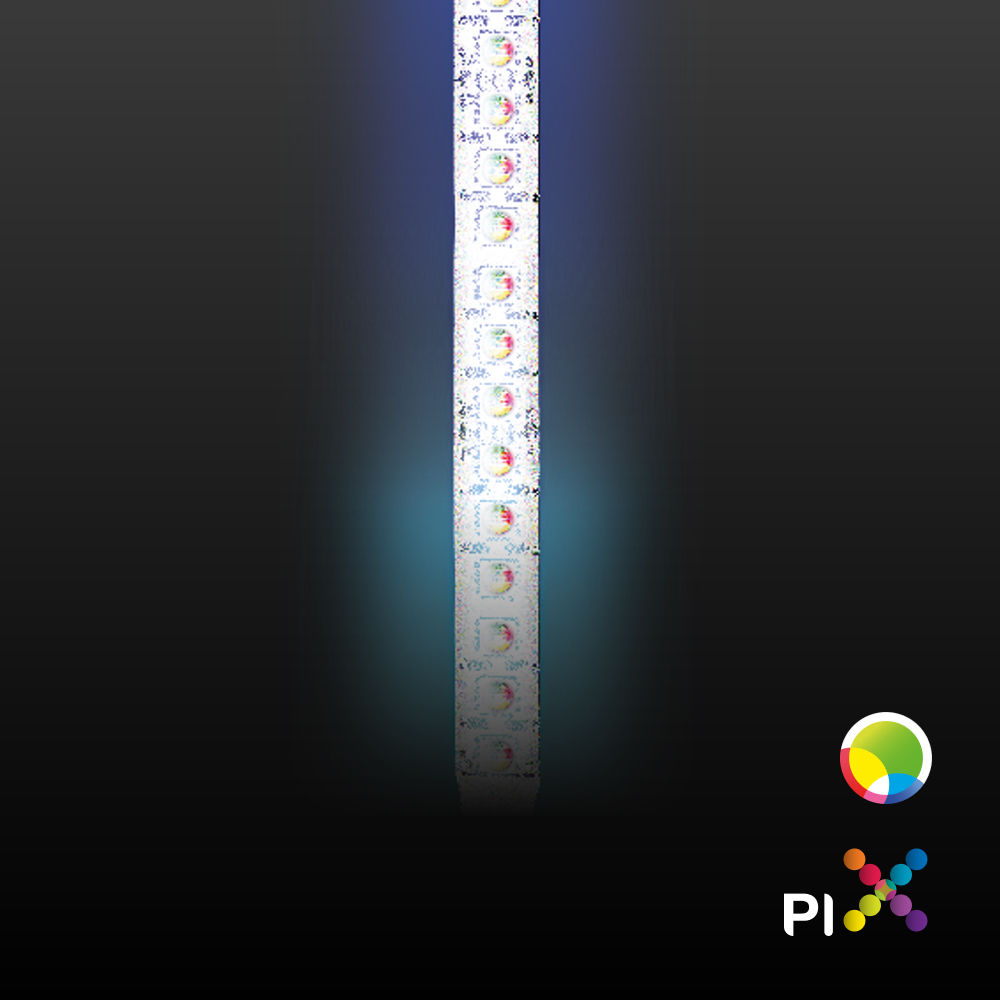

FM12-12PiX RGBW
Strip Width: 12mm
Power: Up to 15W/m
Luminous Flux: 587 lm/m per channel
Colour Temperature: RGBW
LED Pitch: 11.9mm
LEDs: 84 LEDs/m
Pixel Pitch: 12 Pixels/m
Ingress Protection: IP65
Backlit

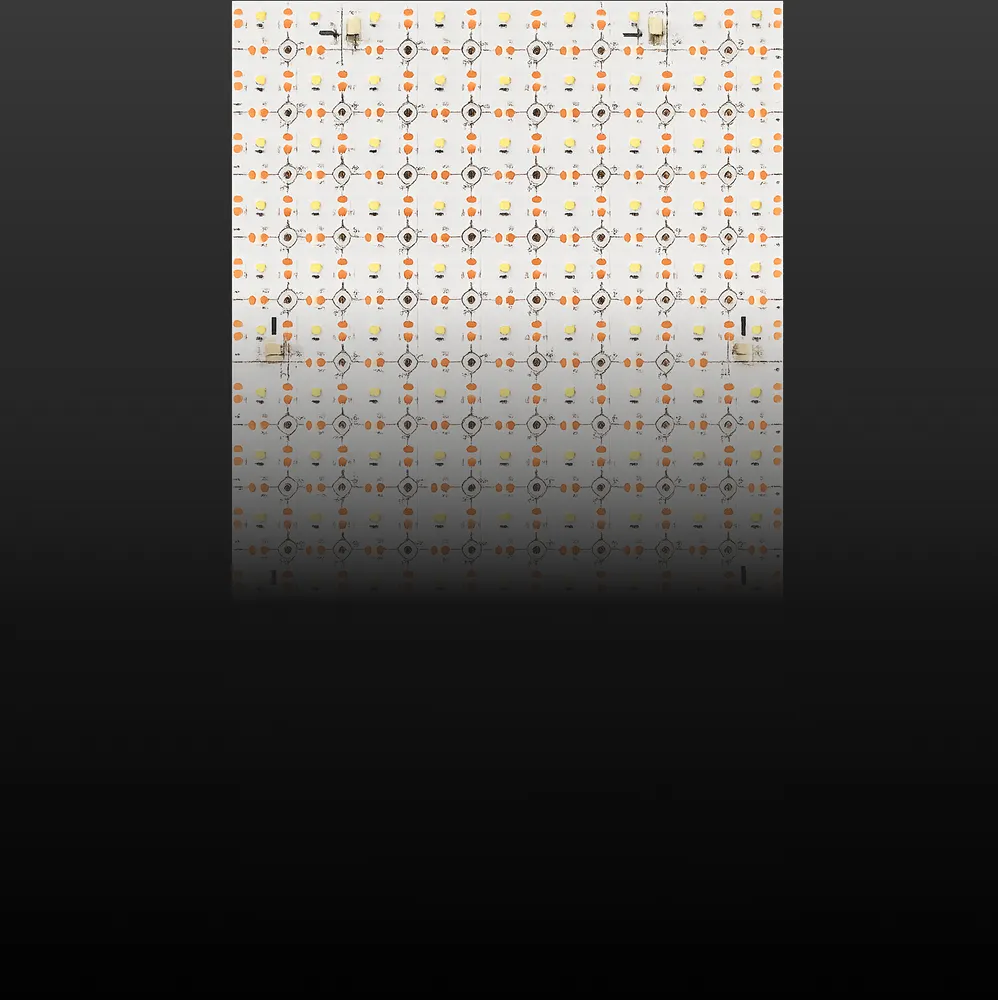

FBM100L75
Strip Width: 300mm
Power: Up to 36 W
Luminous Flux: 220 – 3960lm/m
Colour Temperature: Single CCT
LED Pitch: 34mm x 31mm
LEDs: 6 LEDs/Cut section
Pixel Pitch: –
Ingress Protection: IP20

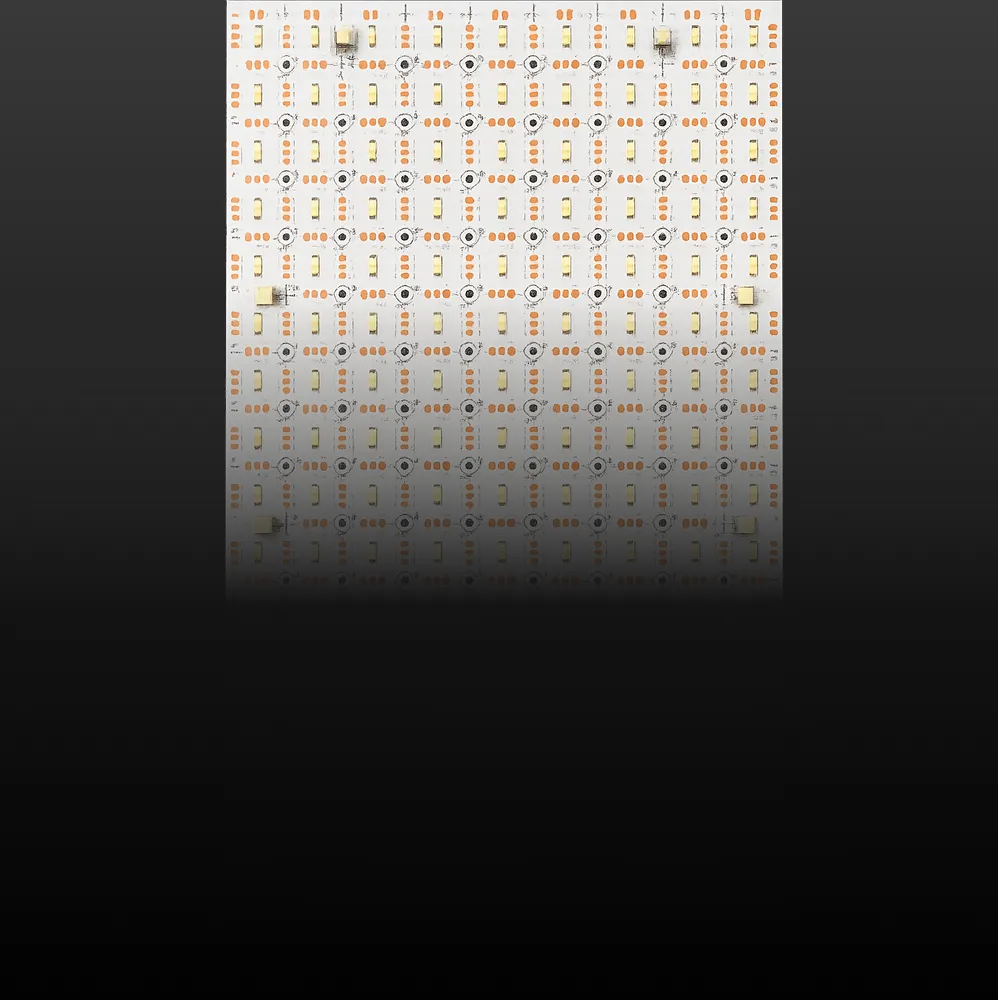

FBM100L75 TW
Strip Width: 300mm
Power: Up to 36 W
Luminous Flux: 220 – 3960lm/m
Colour Temperature: TW
LED Pitch: 34mm x 31mm
LEDs: 12 LEDs/Cut section
Pixel Pitch: –
Ingress Protection: IP20

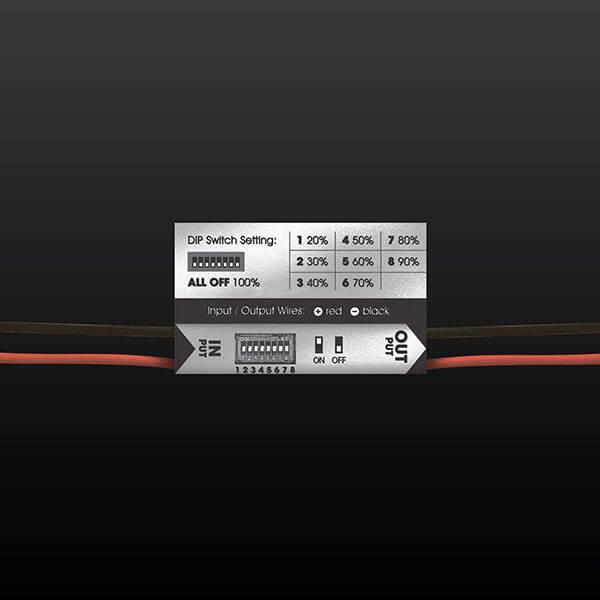

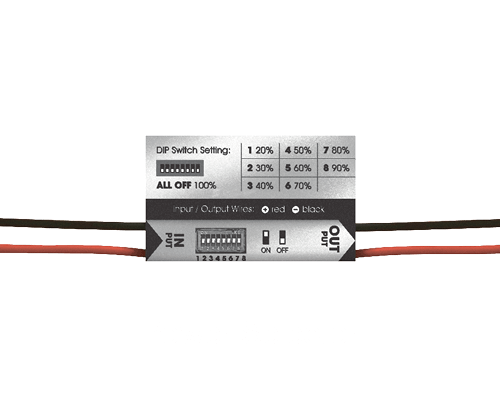

Power Selector
CVMPS150
WD = Warm Dim, TW = tuneWHITE, CS = ComfySHIFT, FK = flexiK, Single CCT = 2400K / 2700K / 3000K / 3500K / 4000K / 5000K
